Microtek ObjectScan 1600 Quick Start Manual

Object scanner
Hide thumbs Also See for ObjectScan 1600:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

Quick Start Guide

1.

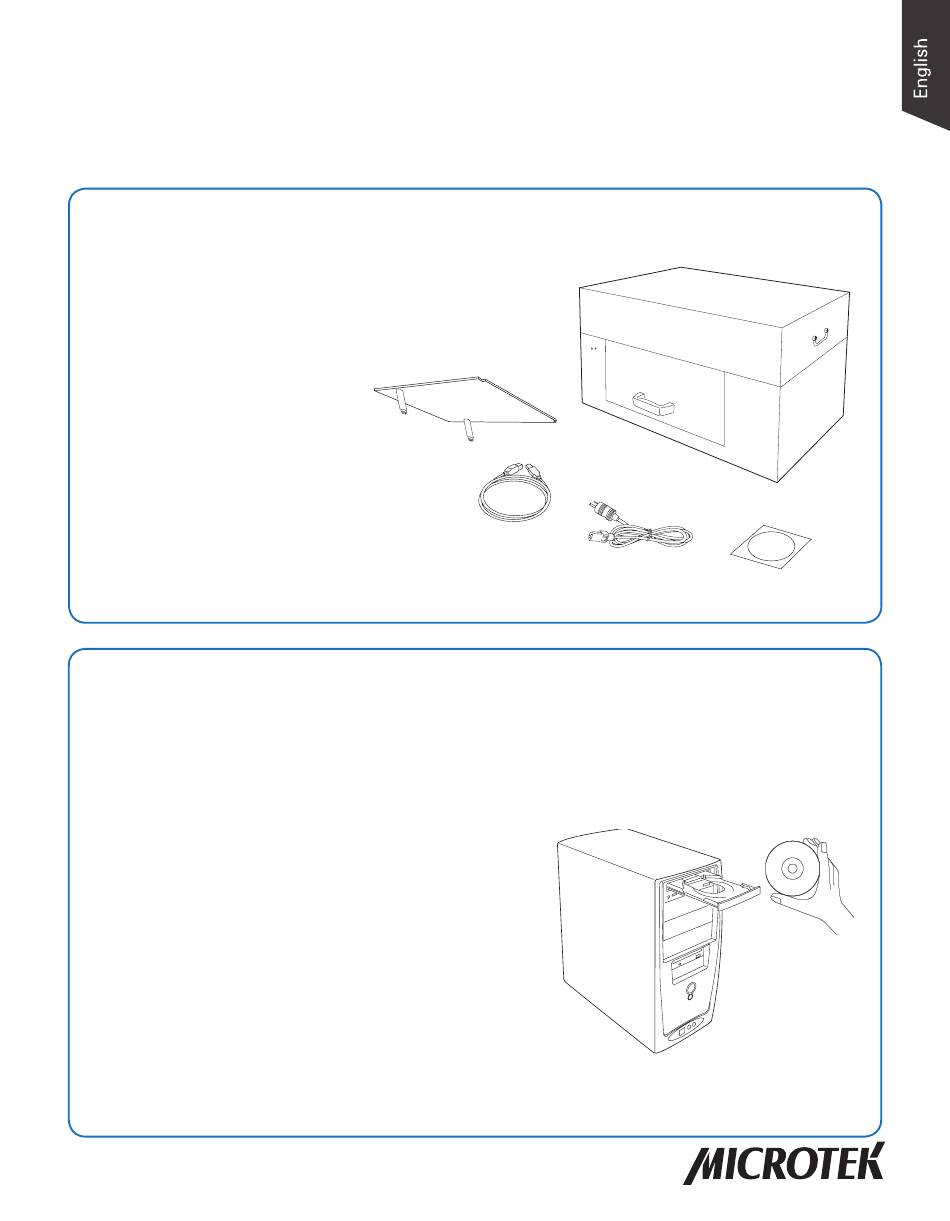

Unpack Contents
Unpack your scanner package and check for major
components.
A. Scanner
B. Upper scan bed
C. Hi-Speed USB 2.0 cable
D. Power cord
E. Software DVD
2.

Install Software

Important:
You must install software before connecting your scanner. Always close
any open programs and turn off Antivirus utilities before installing software.
A. Place the Microtek Software DVD into a
drive, and follow the on-screen instructions
to install the scanner driver and software.
NOTE: If the Microtek Software Installer screen does
not come up automatically, double-click the following in
succession: "My Computer"; the DVD-ROM icon; then
Setup.exe to start the installer program.
B. Restart your computer at the end of all
software installation.
Copyright © 2017 Microtek International, Inc.
I49-005159 A1, November 2017
Object Scanner
B
http://www.microtek.com
A
C
D
E
