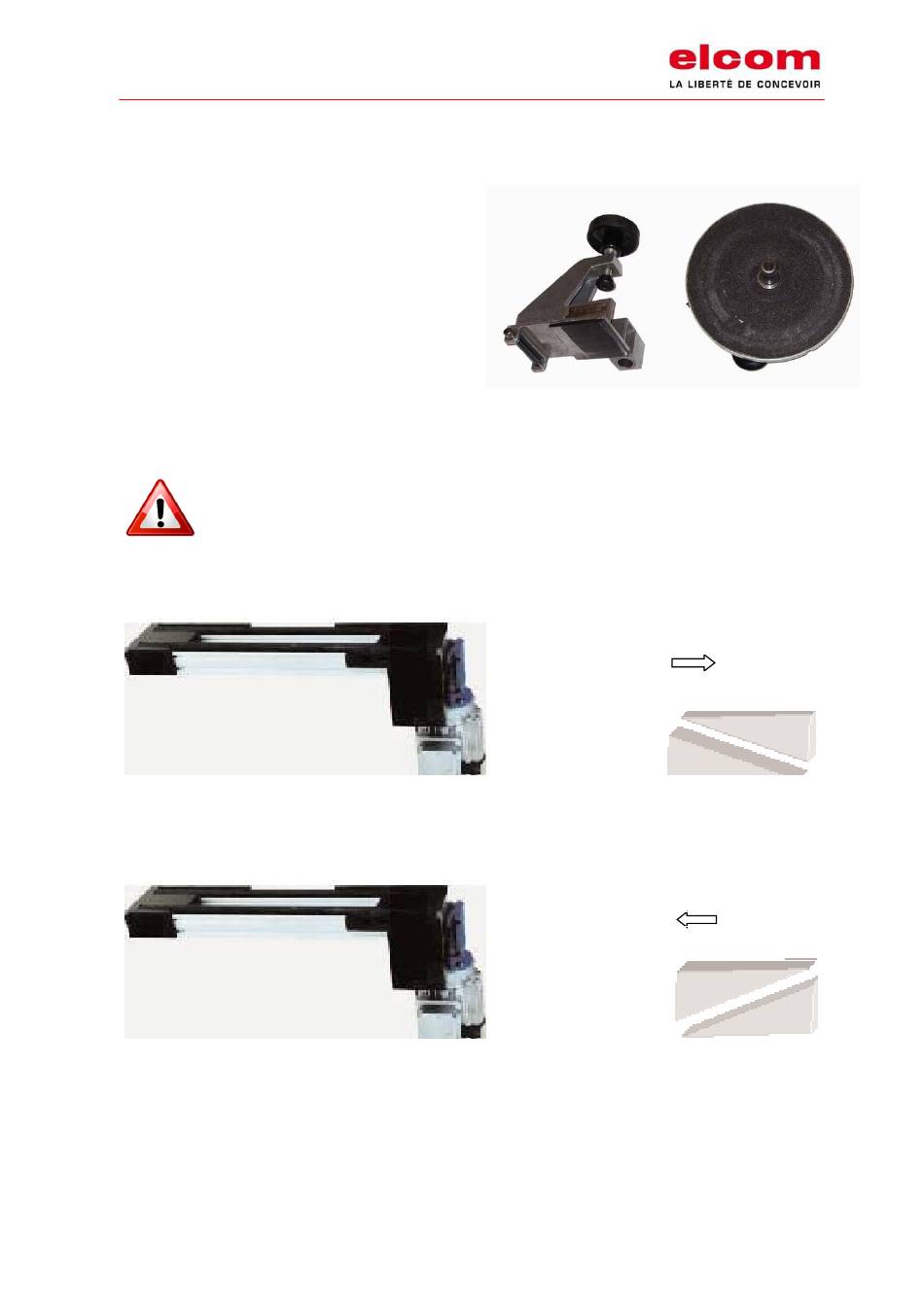

7. CHANGING THE FLAT BELT

Calculate the belt required length for a single
unit:
[(L-100) x 2 + 173] x 0.98
L = total length of the transfer system, including
the return.
Cut the first bevel.
Trace the zero point.
Cut the right length.
Cut the second bevel with the same bevelling
device.
Do not forget to take the length of the bevel into account when calculating the
length of the belt. The superposition of this length must be subtracted from the
total length.
Place the belt on the transfer system.
a) Pull
b) Push
I02-121 User manual & maintenance guide
of TLM 2000
Driving direction
Belt position
Driving direction
Belt position
