Lift positioning unit
The operating mode remains the same as the standard positioning unit. It is not necessary to
disassemble the lift positioning unit from the transfer system for this maintenance.

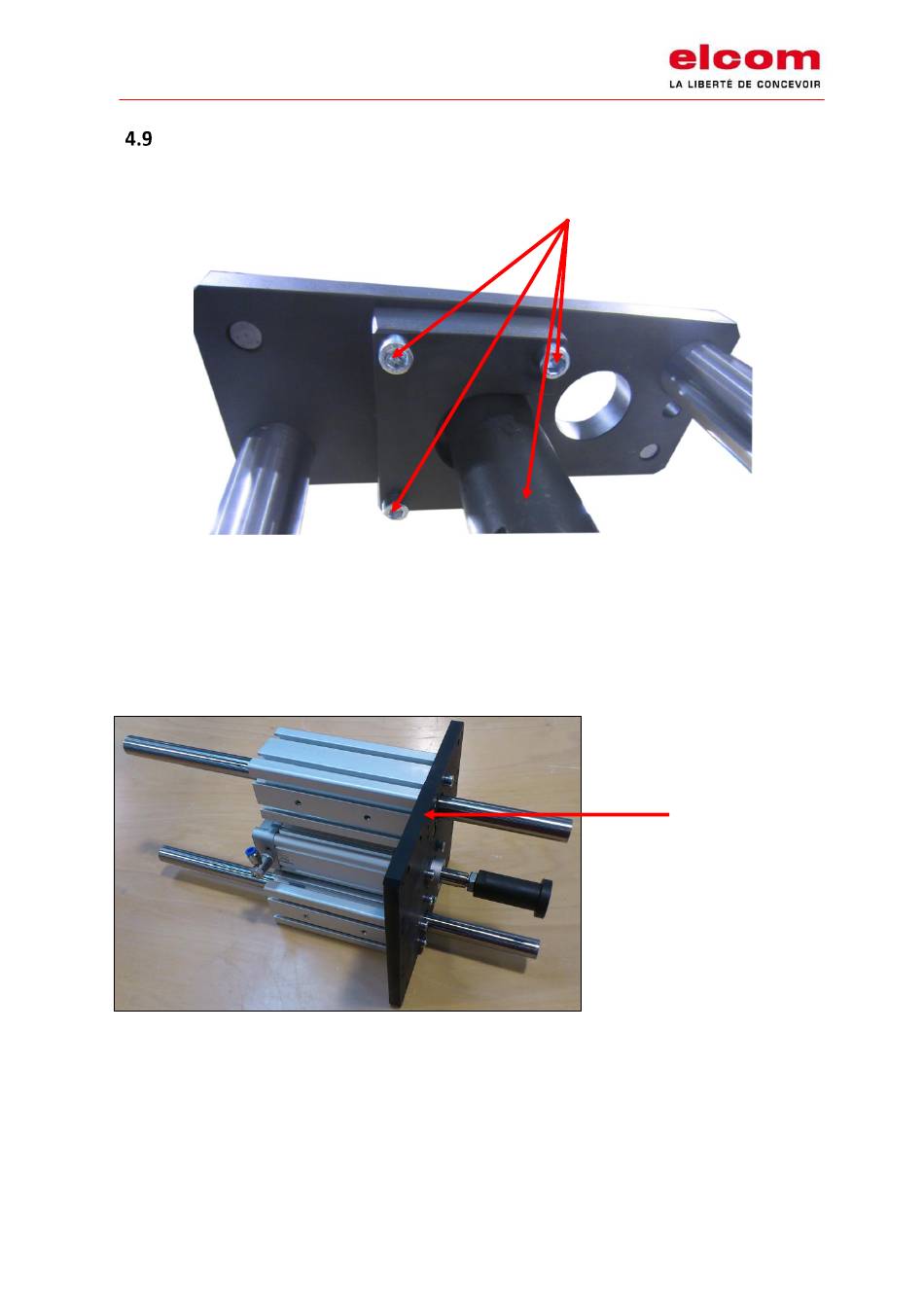

Release the plate to access the guiding shafts and cylinder by removing the fastening screws.
In order to centre the guiding shafts on the plate, the centering device ref. 800 15 001 can be
used.
Plate
I02-121 User manual & maintenance guide
Version 02
(translation of the original manual)
of TLM 2000
Page 11 sur 41
