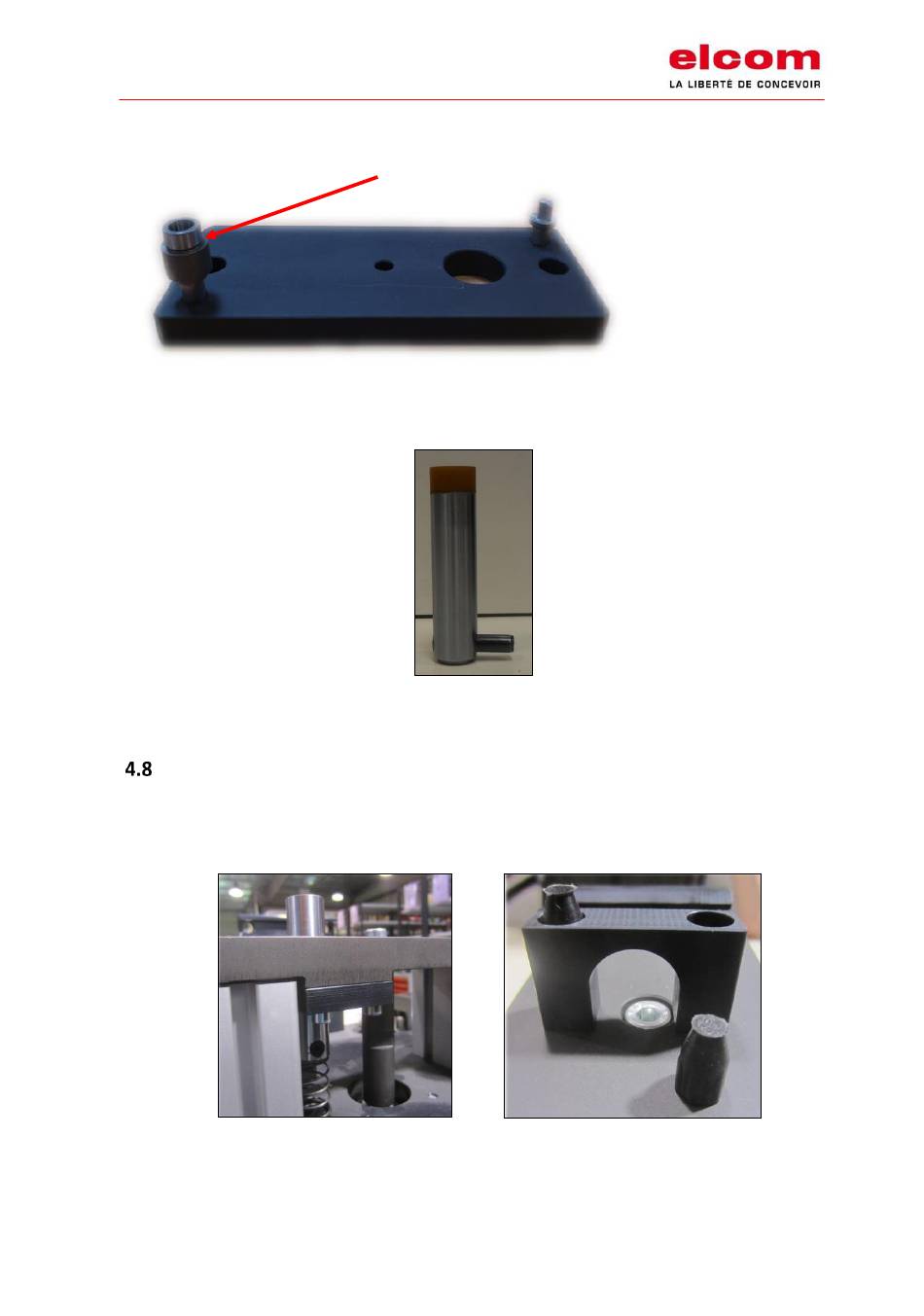

Bush (ref. 120 03 006)
Lubricate the positioning unit finger with a film of grease.
Case of a damped stopper
It is possible to replace the damping rubber stoppers. Remove the 4 screws to access the U-shape
part including the stoppers.
I02-121 User manual & maintenance guide
Version 02
(translation of the original manual)
of TLM 2000
Page 10 sur 41
