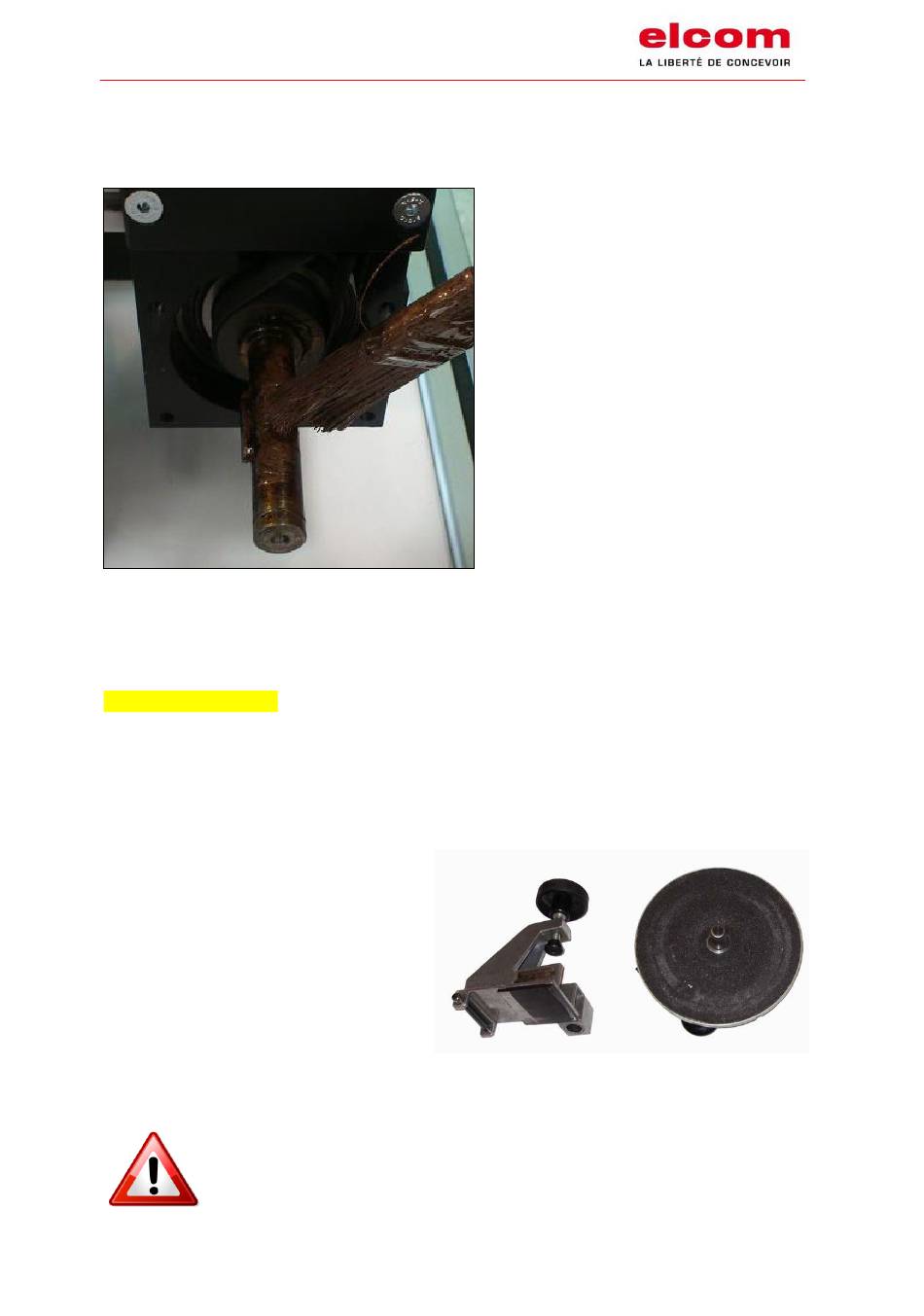

5.2 Reassembly of the motor

Put the screw back on the new reducer.
5.3 Changing the belt – Flat belt
Calculate the belt required length for a single unit:
[(L-160) x 2 + 490] x 0.97
L = total length of the transfer system, including the return.
Calculate the belt required length for a U-shape unit:
[(L-160) x 2 + 678] x 0.97
L = total length of the transfer system,
including the return.
Cut the first bevel.
Trace the point zero.
Cut the right length.
Cut the second bevel with the same
bevelling device.
Do not forget to take the length of the bevel into account when calculating the
length of the belt. The superposition of this length must be subtracted from the
total length.
I02-118 User manual & maintenance guide
of TLM 1000
Lubricate the shaft with copper grease.
For reassembly, follow the previous steps in
reverse order.
