Changing the pins (locating/centering)
Extract the previous pins from the press.
Install the new pins in the press while using a bush of a workpiece carrier ref. 120 03 006 as a
support (insert the pin in the bush and then place them on the positioning unit plate).
Other transfer parts
The others parts of the transfer system do not need any maintenance. A visual check, looking for
wear or broken parts is recommended from time to time.

5. CHANGING THE MOTOR

5.1.

Chain drive

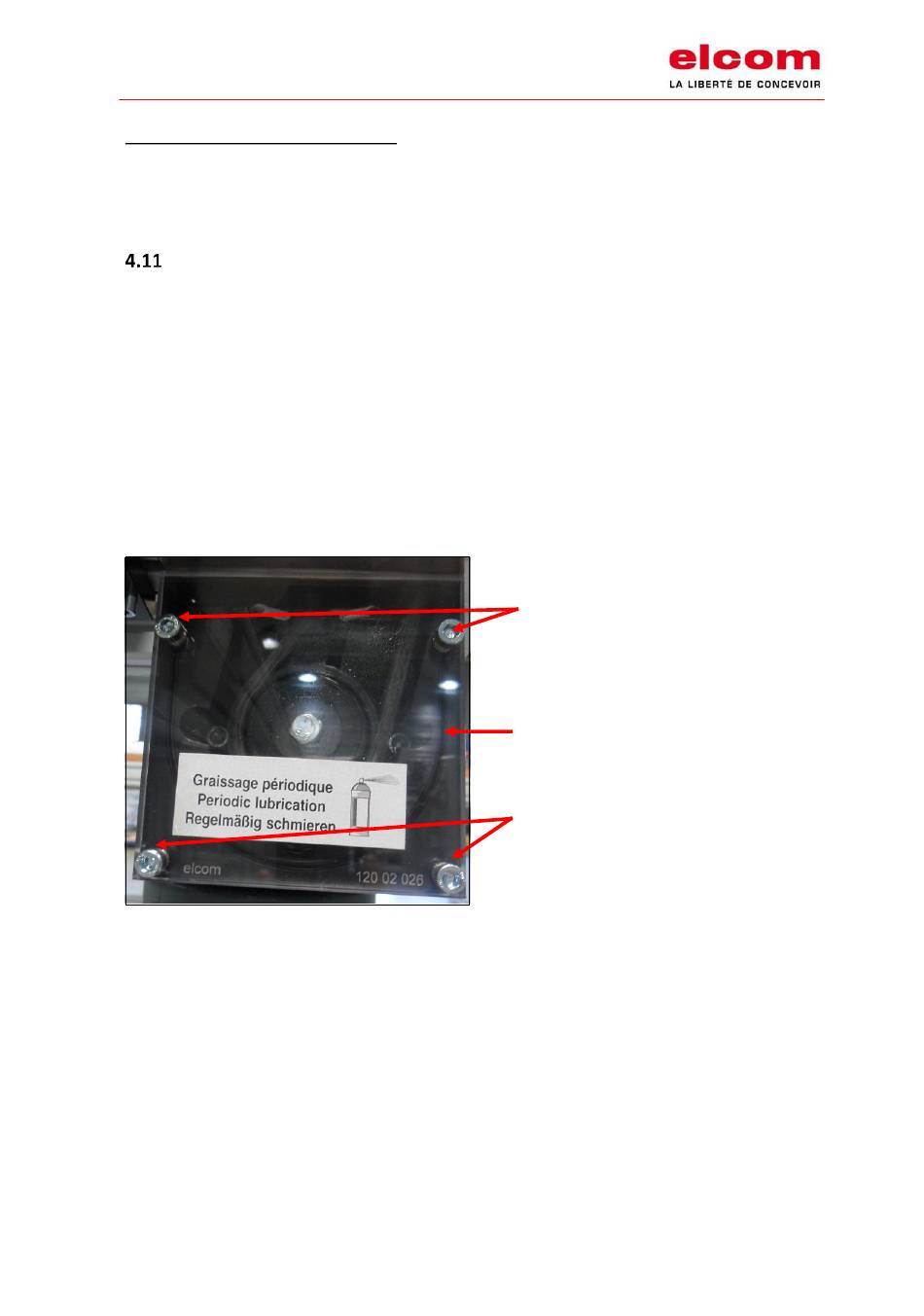

Remove the cap.
Loosened screws
Cap
Loosened screws
I02-121 User manual & maintenance guide Version 02
(translation of the original manual)
of TLM 2000 Page 14 sur 41
