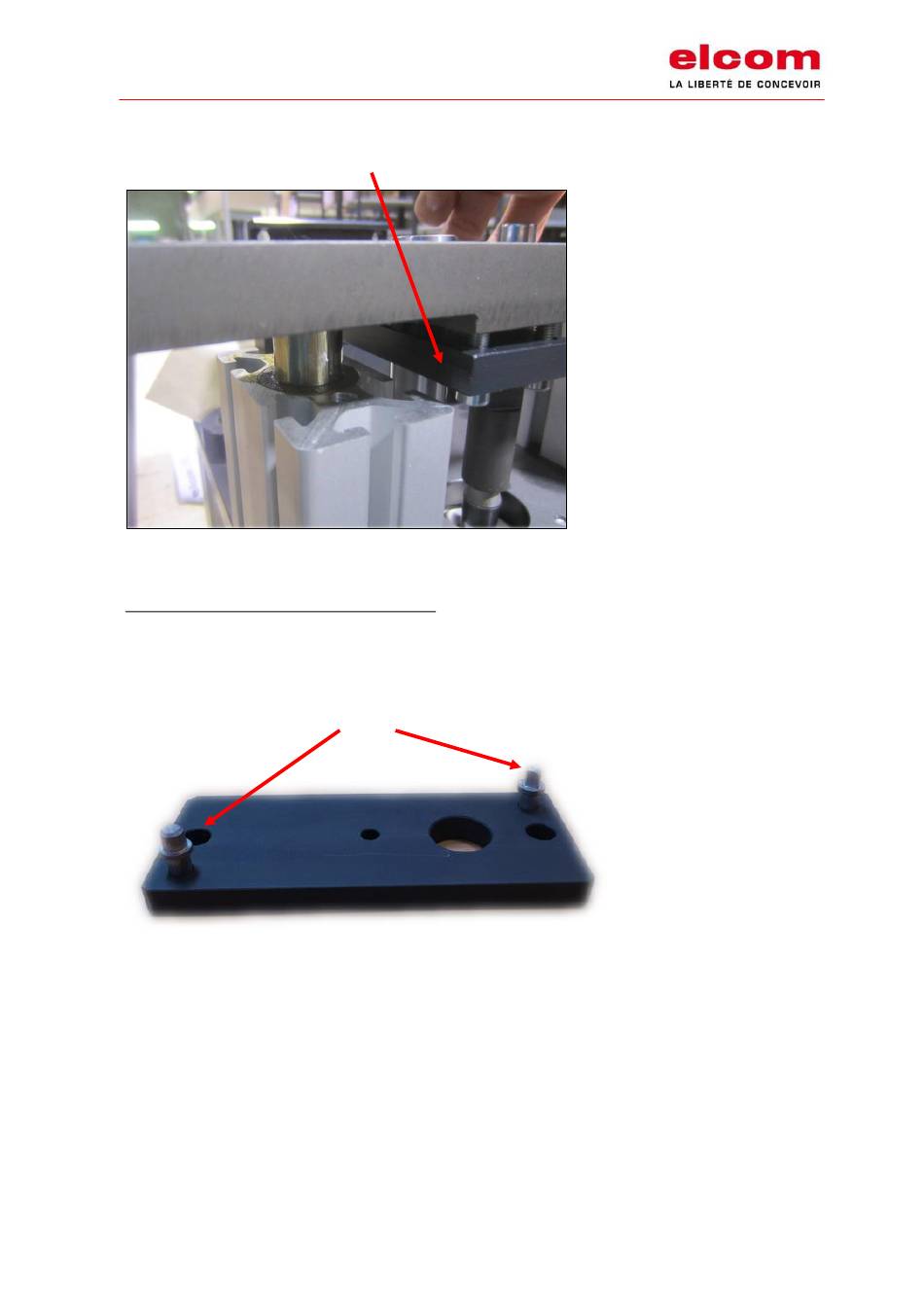

For a quick lubrication of the guiding shafts, it is also possible to access them, without any
disassembly, only by pulling the plate.
Changing the pins (locating/centering pins)
Extract the previous pins from the press.
Install the new pins in the press while using a bush of a workpiece carrier ref. 120 03 006 as a
support (insert the pin in the bush and then place them on the positioning unit plate).
Pins
I02-121 User manual & maintenance guide
Version 02
(translation of the original manual)
of TLM 2000
Page 9 sur 41
