4. Press the .
To cancel the setting, press the "
Ex.: For the zone of the figure 1 you can set the operation mode
to "Fan", "Cool", "Heat", "Set Point", or "Auto". When one or
more air conditioners in the zone do not have Cool/Heat
option, you can select only Fan or "Set Point" mode.
Figure 1
Canteen 1F North
1F West

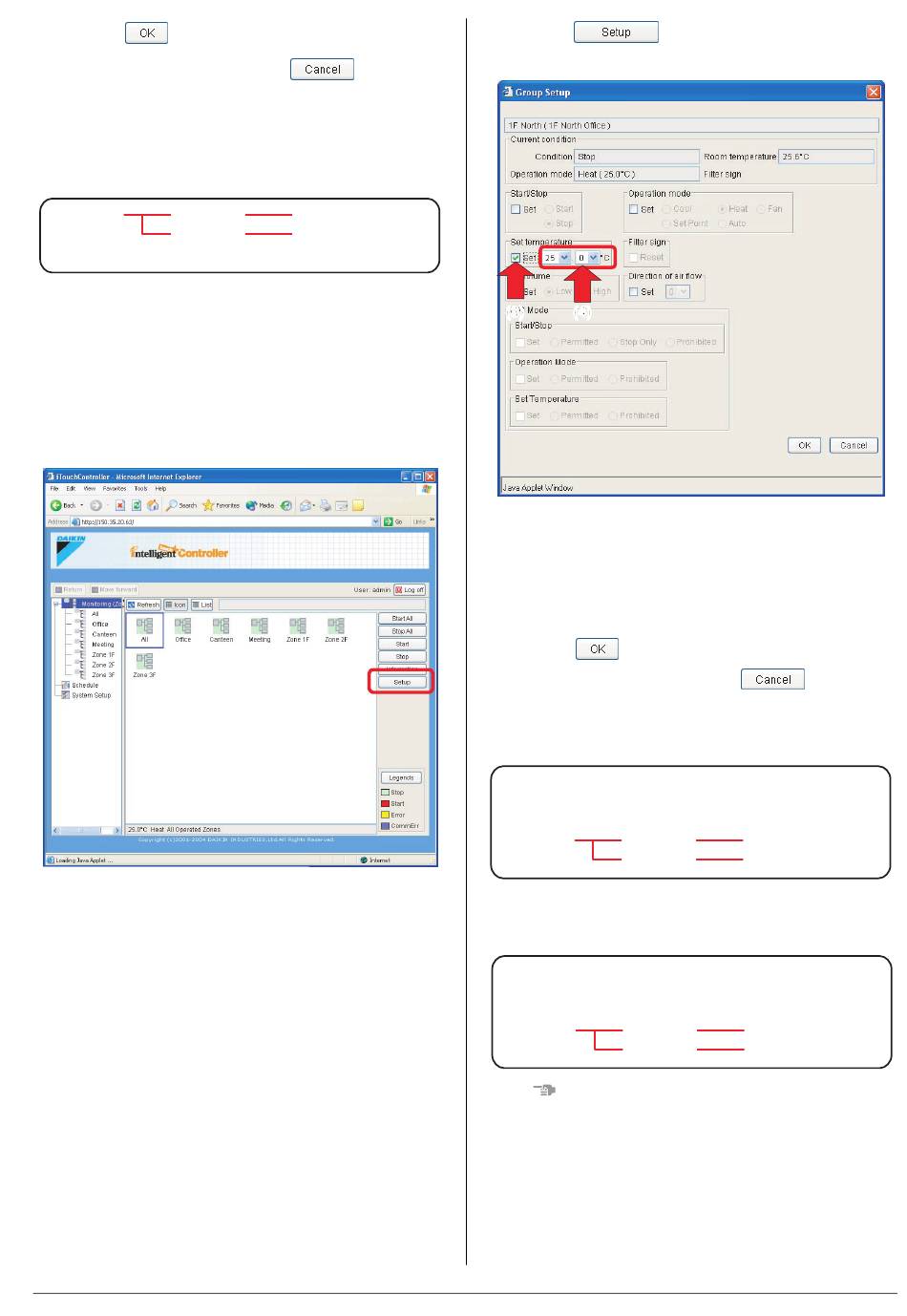

6-6 Changing the Temperature Setting

I I I I Procedure for changing the temperature setting
Change the temperature setting of air conditioners.
On the Monitoring screen, operation is allowed with either Icon
or List as the display type.
In the figure (Screen 1) the devices are displayed in the Icon dis-
play mode.
Screen 1: Main screen
(1)
The temperature setting can be switched by zone or by group.
When all the air conditioners in the selected group or zone
are in the Fan mode, the temperature setting cannot be
changed.
[Procedure]
1. On Screen 1 Monitoring, select a zone or a group from the
pull-down menu (1).
Select a zone or a group of which the temperature setting is
to be changed (2).
To change the setting for all the devices in a group, select the
zone including the group from the zone tree area (1), and
select the group from the main display area (2).
English
".
[Set Point] [Fan]
[Cool] [Heat]
[Auto] [Fan]
(2)
2. Press the
Screen 2: Setup screen
(3) (4)
3. Select the Set checkbox (3) in the Set temperature frame,
and set the integral and decimal parts using the pull-down
menus (4).
In a zone setting, the pull-down menus are pre-populated
with allowable temperature values for the air conditioners
in the zone. See the following example.
4. Press the .
To cancel the setting, press the "
Ex.: For the zone setting in the figure 1, the temperature settings
available are between 20°C and 30°C inclusive.
Figure 1
Zone name Group name
Canteen 1F North
1F West
When the temperature setting is 30°C, the actual temperature
settings for air conditioners are as shown in the figure 2.
Figure 2
Zone name Group name
Canteen 1F North
1F West
NOTE
Range of temperature settings available is the range specified in
accordance with the following.
• Range of temperature settings inherent to the air conditioner
main unit.
• Range of temperature as a result of the restriction by temper-
ature setting limit set on the intelligent Touch Controller con-
sole.
For more information refer to the intelligent Touch Controller
manual.
. Screen 2 Operation appears.
".
Range of temperature
settings available
(see NOTE)
25 - 30˚C
20 - 25˚C
Range of temperature
settings available
(see NOTE)
30˚C
25˚C
