TempoLink Smart Assistant
Operation Manual

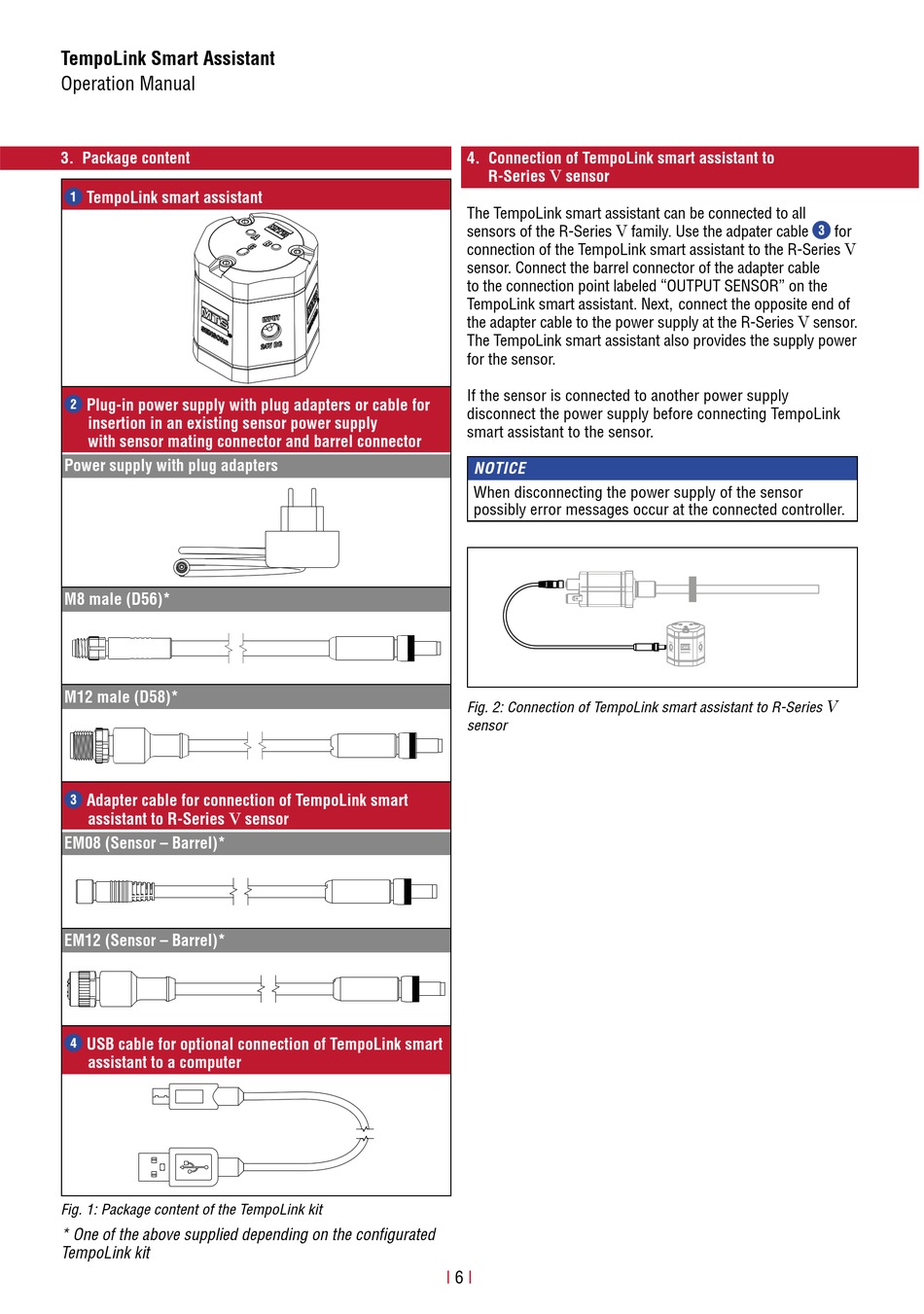

3. Package content

TempoLink smart assistant
Plug-in power supply with plug adapters or cable for
insertion in an existing sensor power supply
with sensor mating connector and barrel connector
Power supply with plug adapters
M8 male (D56)*
M12 male (D58)*
Adapter cable for connection of TempoLink smart
assistant to R-Series V sensor
EM08 (Sensor – Barrel)*
EM12 (Sensor – Barrel)*
USB cable for optional connection of TempoLink smart
assistant to a computer
Fig. 1: Package content of the TempoLink kit
* One of the above supplied depending on the configurated
TempoLink kit
4. Connection of TempoLink smart assistant to
R-Series V sensor
The TempoLink smart assistant can be connected to all
sensors of the R-Series V family. Use the adpater cable
connection of the TempoLink smart assistant to the R-Series V
sensor. Connect the barrel connector of the adapter cable
to the connection point labeled "OUTPUT SENSOR" on the
TempoLink smart assistant. Next, connect the opposite end of
the adapter cable to the power supply at the R-Series V sensor.
The TempoLink smart assistant also provides the supply power
for the sensor.
If the sensor is connected to another power supply
disconnect the power supply before connecting TempoLink
smart assistant to the sensor.
NOTICE
When disconnecting the power supply of the sensor
possibly error messages occur at the connected controller.
Fig. 2: Connection of TempoLink smart assistant to R-Series
sensor
