Summary of Contents for MTS Sensors TempoLink Smart Assistant

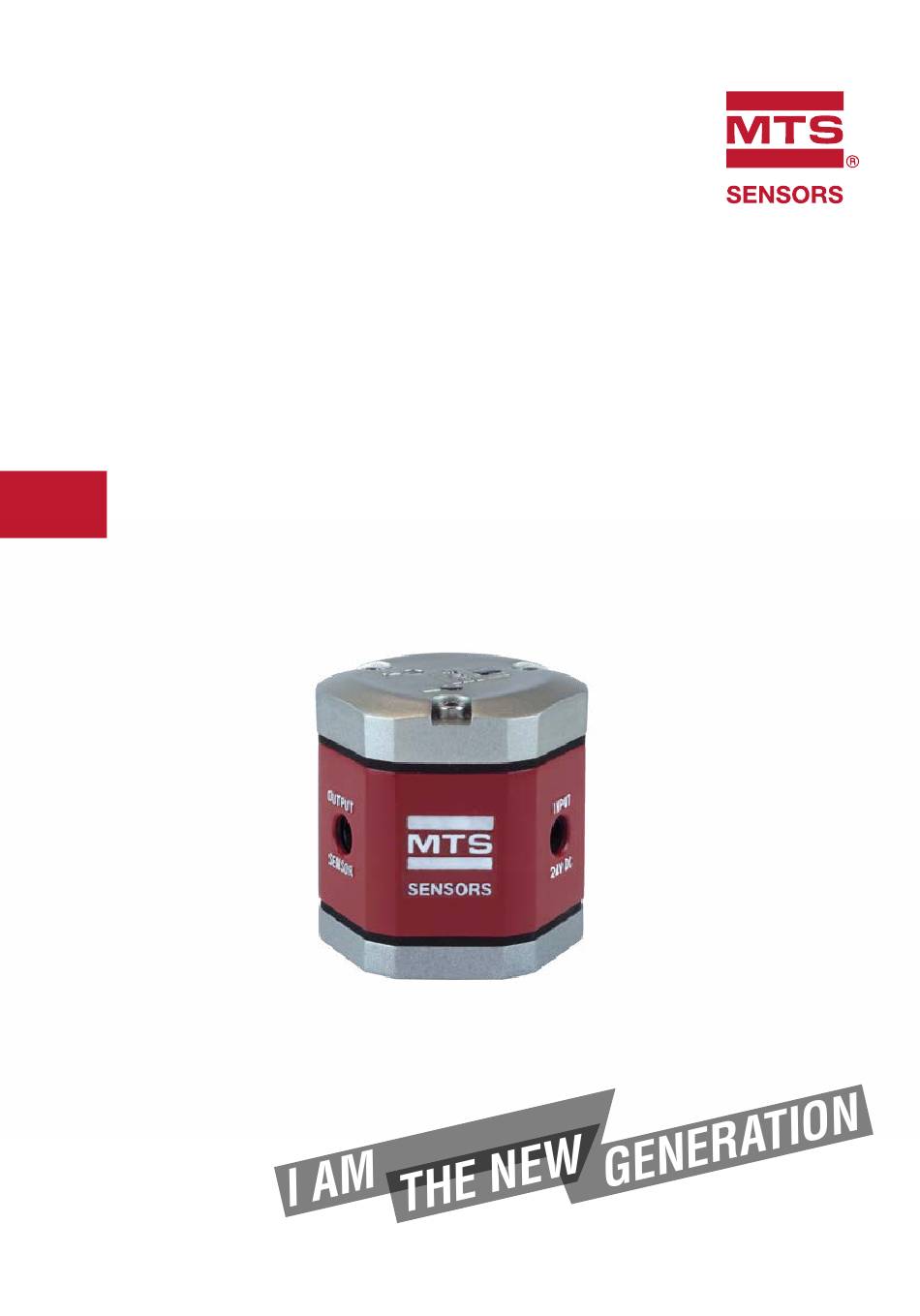

- Page 1 Temposonics ® Magnetostrictive Linear Position Sensors TempoLink Smart Assistant Operation Manual...
-
Page 2: Table Of Contents
5.2 Using the cable for insertion in an existing sensor power supply with sensor mating connector and barrel connector .7 6. Connection of TempoLink smart assistant to smartphone, tablet or computer ..........7 6.1 Connecting a Wi-Fi enabled device to the integrated Wi-Fi access point ................7 6.2 Connecting a computer via USB connection ........................7... -
Page 3: Introduction
Operation Manual 1. Introduction 1.1 Purpose and use of this manual Before starting the operation of TempoLink smart assistant, read this documentation thoroughly and follow the safety information. Keep this manual for future reference! The content of this technical documentation is intended... -
Page 4: Safety Instructions
1 and item 2 and only in conjunction with the third-party devices and components recommended or approved by MTS Sensors. As a prerequisite of proper and safe operation, the product requires correct transport, storage, mounting and commissioning and must be operated with utmost care. -
Page 5: Installation, Commissioning And Operation
2. Do not open or dismantle the sensor and TempoLink employees are authorized to increase or change the scope of smart assistant. warranty. 3. Connect the sensor and TempoLink smart assistant very carefully and pay attention to the polarity of connections and power supply. 2.6 Return 4. -
Page 6: Package Content
4. Connection of TempoLink smart assistant to R-Series V sensor TempoLink smart assistant The TempoLink smart assistant can be connected to all sensors of the R-Series V family. Use the adpater cable connection of the TempoLink smart assistant to the R-Series V sensor. -
Page 7: Connection Of Tempolink Smart Assistant To Power Supply
24 V The TempoLink smart assistant can also be connected via Fig. 4: Connection of TempoLink smart assistant with the cable for USB. If the computer is Wi-Fi enabled deactivate Wi-Fi on the insertion in an existing sensor power supply cable computer before setting up the USB connection. -
Page 8: Establishing A Connection Via Browser
Click the menu symbol in the top left to get to the main menu: Fig. 6: USB port on the TempoLink smart assistant NOTICE Only one device can be connected to the TempoLink smart assistant at a time in order to display the graphical user interface. -
Page 9: Leds Of Tempolink Smart Assistant
TempoLink Smart Assistant Operation Manual 9. LEDs of TempoLink smart assistant Three LEDs in the lid of the TempoLink smart assistant display the current status of the tool: TempoLink smart assistant LEDs Status LEDs LED A Communication between TempoLink sensor assistant and sensor... - Page 10 TempoLink Smart Assistant Operation Manual Notes...
- Page 11 TempoLink Smart Assistant Operation Manual Notes...
- Page 12 MTS, Temposonics and Level Plus are registered trademarks of MTS Systems Corporation in the United States; MTS SENSORS and the MTS SENSORS logo are trademarks of MTS Systems Corporation within the United States. These trademarks may be protected in other countries. All other trademarks are the property of their respective owners. Copyright © 2018 MTS Systems Corporation. No license of any intellectual property rights is granted.
