3. Identification

1 2 3 4
T L 0
a b c
a Type
T L TempoLink smart assistant kit
b Power supply
1 Plug-in power supply with plug adapters (AU, CCC, EU, UK, US)
2 Cable for insertion in existing sensor power supply with sensor
mating connector and barrel connector
3 Barrel connector with pig-tail for connection to an existing
power supply
c Option
0 No options
d Adapter cables for connection to R-Series V
8 Cable with M8 female connector (4 pin)
E M 0
for connection type D56
(EtherCAT EtherNet/IP™/POWERLINK)
® /
(part no. 254 887-1)
2 Cable with M12 female connector (4 pin)
E M 1
for connection type D58
(EtherCAT /EtherNet/IP™/PROFINET)
®
(part no. 254 897-1)
0 Cable with M16 female connector (7 pin) for
S D 7
connection type D70 (SSI) (part no. 254 990-1)
0 Cable with 6 × terminal clamp for cable connection
A S 0
type (Analog/SSI) (part no. 255 043-1)
0 Cable with M16 female connector (6 pin) for
A D 6
connection type D60 (Analog) (part no. 254 989-1)
DELIVERY
TempoLink smart assistant kit
• TempoLink smart assistant
• Power supply or cable for
insertion in existing sensor
power supply with sensor
mating connector and
barrel connector
• Adapter cable to connect
TempoLink smart assistant
to R-Series V sensor
• USB cable for optional
connection of TempoLink
smart assistant to a
computer
* One of the above supplied depending on the configurated
TempoLink kit
5 6 7 8
d
Adapter cables to connect
TempoLink smart assistant to
sensors of R-Series V can be
ordered separately

4. Package content

TempoLink smart assistant
Plug-in power supply with plug adapters or cable for
insertion in an existing sensor power supply
with sensor mating connector and barrel connector
Power supply with plug adapters
M8 male (D56)*
M12 male (D58)*
Pig-tail (D56, D58, SD70, AS00, AD60)*
Adapter cable for connection of TempoLink smart
assistant to R-Series V sensor
EM08 (sensor – barrel)*
EM12 (sensor – barrel)*
SD70/AD60 (sensor – barrel)*

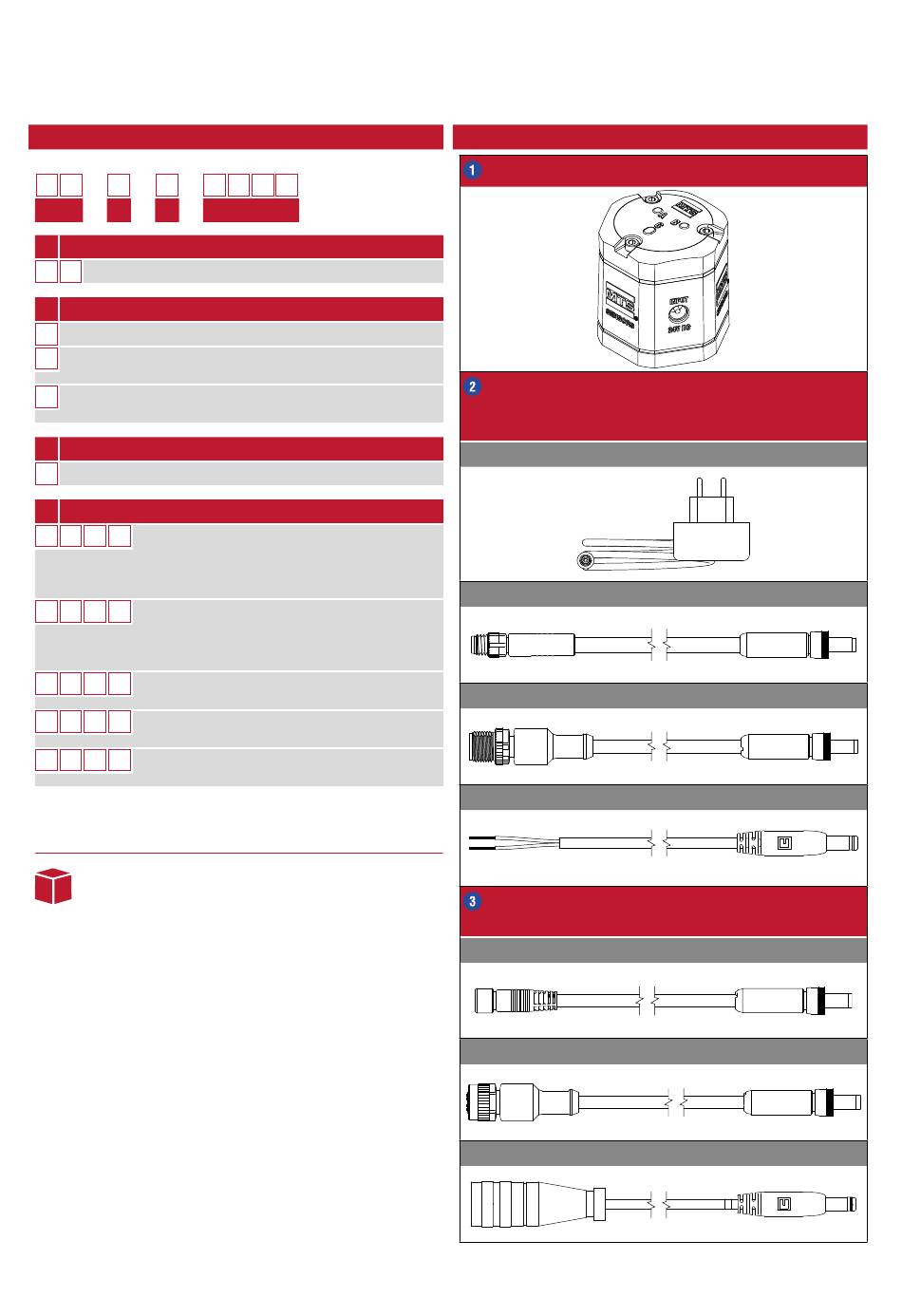

Fig. 1: Package content of the TempoLink kit, part 1
