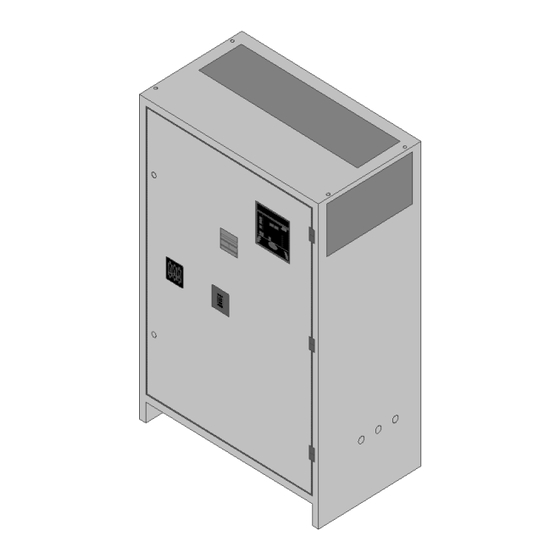

HindlePower AT30 SERIES Operating And Service Instructions

Microprocessor-controlled three phase input float battery charger
Hide thumbs Also See for AT30 SERIES:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions
AT30 SERIES
Operating and Service Instructions
MICROPROCESSOR-CONTROLLED
FLOAT BATTERY CHARGER
THREE PHASE INPUT
(25 - 1,000 Adc)
JA5011-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT30 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for HindlePower AT30 SERIES

Summary of Contents for HindlePower AT30 SERIES

  • Page 1 AT30 SERIES Operating and Service Instructions MICROPROCESSOR-CONTROLLED FLOAT BATTERY CHARGER THREE PHASE INPUT (25 - 1,000 Adc) JA5011-03...

  • Page 2: How To Read The At30 Model Number

    HOW TO READ THE AT30 MODEL NUMBER The AT30 configured model number is coded to describe the unit's features and options. Please identify the model number printed on the data nameplate decal, and write it in the spaces provided below. AT30 Follow the chart below to determine the configuration of the AT30.

  • Page 3: Manufacturer's Warranty

    MANUFACTURER'S WARRANTY FIVE-YEAR WARRANTY NEW PRODUCT - BATTERY CHARGER [applies only to product(s) delivered within the United States and Canada] Product Details: Battery Charger Model: Factory Ordering Code: Battery Charger Serial Number: Date Shipped: Date Energized: Standard Warranty This product is warranted to be free from defects in material and workmanship for a period of five (5) years from date of manufacture.
  • Page 4 MANUFACTURER'S WARRANTY Extended Spare Parts Warranty The manufacturer's extended warranty includes all items as mentioned in the "Standard Warranty" as previously listed, plus reasonable in/out freight costs related to a warranty claim for parts. Said freight cost is based on either standard UPS rates or common carrier only, as appropriate.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS NOTICE 1. Before using the AT30, read all instructions and cautionary markings on: A) this equipment, B) battery, and C) any other equipment to be used in conjunction with the AT30. 2.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS HOW TO READ THE AT30 MODEL NUMBER ......... Inside Front Cover MANUFACTURER'S WARRANTY.............. Removable Form IMPORTANT SAFETY INSTRUCTIONS................i Receiving and Installing the AT30 Battery Charger Storing the AT30.....................2 Reporting shipping damage................2 Unpacking and inspecting the AT30 ..............2 Inspection checklist..................2 Moving the AT30 ....................3 Enclosure type and weight table ..............3...
  • Page 7 Outline: AT30 Batt Chgr NEMA-1 Style-5018 / -5030 / -163 Enclosure......66 / 68 / 70 Internal Component Layout: AT30 Style-5018 / -5030 / -163 Encl w/Common Opts..72 / 74 / 76 Instrument Panel / PC Board Detail: AT30 Series Battery Charger..........78 Schematic: AT30 Series Battery Charger - Standard w/o Options ..........80 Schematic: AT30 Series Battery Charger - with Common Options ..........

  • Page 8: Storing The At30

    RECEIVING THE AT30 1. RECEIVING THE AT30 1.1. STORING THE AT30 If you store the AT30 for more than a few days before installation, store it the original shipping container, and in a temperature controlled, dry climate. Ambient temperatures of 0 to 122 °F / -18 to 50 °C are acceptable.

  • Page 9: Moving The At30

    INSTALLING THE AT30 1.4. MOVING THE AT30 Once you have established that the AT30 is undamaged, identify the enclosure style of your unit. Refer to the table below. Standard AT30 NEMA-1 Type Enclosures ( Style-5018 / Style-5030 / Style-163 / Style-198 ) Output Voltage Ampere Rating...

  • Page 10: Mounting The At30

    INSTALLING THE AT30 1.5. MOUNTING THE AT30 The AT30 must be installed in manner that allows easy access to the front ac (CB1) and dc (CB2) circuit breakers. Chose a mounting method for the AT30 enclosure from the table below. ENCLOSURE MANUAL MOUNTING METHOD...
  • Page 11 INSTALLING THE AT30 PROCEDURE (Style-5030) 1. Install four (4) 0.375 / 9.5mm or 0.5in/12.7mm anchor bolts into the floor, per the mounting dimensions featured in the outline drawing (JE5086-00). 2. Carefully lift the AT30 above the anchor bolts using the methods described in Section 1.4.

  • Page 12: Wall-Mounting The At30

    INSTALLING THE AT30 1.5.2. Wall-Mounting the AT30 (Style-5018 enclosure only) To install the AT30 onto a vertical surface, the standard Style-5018 enclosure does not need to be modified, but a special wall-mounting accessory (EI5008-00) is required. For kit availability see ordering information in Appendix B on page 65.
  • Page 13 INSTALLING THE AT30 GRAPHICS - WALL-MOUNTING THE AT30 NOTES 1. Refer to the Style-5018 enclosure outline drawing (JE5085-00) in Appendix C on page 66 for overall size, mounting dimensions, and cabinet specifications. 2. See Installation Instructions (JA5063-00) for the special Style-5018 wall- mounting procedure.

  • Page 14: Rack-Mounting The At30

    INSTALLING THE AT30 1.5.3. Rack-Mounting the AT30 (Style-5018 enclosure only) Smaller AT30s can be installed in 23-24in /584-610mm relay racks with standard EIA hole spacing. The Style-5018 enclosure does not need to be modified for rack mounting, but a special kit (EI0193-0#) is required. For kit availability see the ordering information in Appendix B on page 65.
  • Page 15 INSTALLING THE AT30 GRAPHICS - RACK-MOUNTING THE AT30 NOTES 1. Rack-mount AT30 Style-5018 enclosures are installed from the front. 2. Refer to the Style-5018 enclosure outline drawing (JE5085-00) in Appendix C on page 66 for overall size and cabinet specifications. 3.

  • Page 16: Changing The Transformer Taps

    INSTALLING THE AT30 1.6. CHANGING THE TRANSFORMER TAPS ...! CAUTION... Before connecting external power to the AT30, verify the ac input voltage listed on the data nameplate decal, and the tag attached to the ac breaker (CB1). The power isolation transformer (T1) is designed with an ac input voltage tolerance of +10% to -12%.
  • Page 17 INSTALLING THE AT30 PROCEDURE 1. Shut down the AT30, then see Section 3.5 for necessary steps to follow when accessing internal components within the enclosure. 2. Verify that no internal voltages are present before proceeding. 3. Refer to the images below and identify the three (3) primary-side "taps" (H#) on the AT30 power isolation transformer (T1).

  • Page 18: Making The Ac Input Connections

    INSTALLING THE AT30 1.7. MAKING THE AC INPUT CONNECTIONS WARNING The AT30 is a commercial product, and not intended for use in a residential environment, or to be powered by low-voltage public mains. It is the responsibility of the installer of the AT30 to provide suitable ac supply wiring.
  • Page 19 INSTALLING THE AT30 MAKING THE AC INPUT CONNECTIONS - GRAPHICS Style-5018 I/O Terminal Board (TB1) Detail user-supplied ac input wiring user-supplied ac input wiring Style-5030 I/O Terminal Board (TB1) Detail user-supplied ac input wiring Style-163 I/O Terminal Board (TB1) Detail CAUTION NOTES 1.

  • Page 20: Making The Dc Output Connections

    INSTALLING THE AT30 1.8. MAKING THE DC OUTPUT CONNECTIONS It is the responsibility of the installer of the AT30 to provide suitable dc output, battery, and dc load wiring. Follow these steps to connect the battery to the AT30: 1. Size the dc wiring to minimize voltage drop. The acceptable wire size depends on your installation.
  • Page 21 INSTALLING THE AT30 MAKING THE DC OUTPUT CONNECTIONS - GRAPHICS user-supplied dc output wiring Style-5018 I/O Terminal Board (TB1) Detail user-supplied dc output wiring Style-5030 I/O Terminal Board (TB1) Detail Style-163 I/O Terminal Board (TB1) Detail user-supplied dc output wiring...

  • Page 22: Wiring The At30 For Remote Sensing

    INSTALLING THE AT30 1.9. WIRING THE AT30 FOR REMOTE SENSING You can wire the AT30 to regulate the output voltage at the battery terminals, instead of at the charger output terminals (TB1+/-). Remote sensing provides the following: 1. Compensates for voltage drop in the dc wiring between the AT30 and the battery.
  • Page 23 INSTALLING THE AT30 4. Move wire # 38 from TB1(-) to REM SENSE(-). 5. Move wire # 40 from TB1(+) to REM SENSE (+). 6. Connect user-supplied external remote sense leads from the battery or dc bus to the remote sense terminals on the I/O panel. 7.

  • Page 24: Wiring To The Remote Alarm Contacts

    INSTALLING THE AT30 1.10. WIRING TO THE REMOTE ALARM CONTACTS Built-in Summary "Common" Alarm Relay (standard) The AT30 Main Control PC Board (A1) is equipped with a "common" Summary Alarm relay. This relay contact transfers when any one or more of the standard AT30 alarms exist.

  • Page 25: Auxiliary Alarm Relay Pc Board (Optional)

    INSTALLING THE AT30 Auxiliary Alarm Relay PC Board (optional) The optional Auxiliary Alarm Relay PC Board (A5), mounted on plastic stand-offs inside the enclosure, provides two (2) form-C contacts (TB4-1 through TB4-36) for each of the following individual alarms: • High DC Voltage •...

  • Page 26: Installing The Temperature Compensation Probe (Optional)

    INSTALLING THE AT30 1.11. INSTALLING THE TEMPCO PROBE ASSEMBLY (OPTIONAL) The temperature compensation (or TempCo) probe contains a temperature-dependent resistor in an epoxy module that you install near your battery. There are three (3) steps in installing the assembly: 1. Mounting the probe assembly near the battery. 2.
  • Page 27 INSTALLING THE AT30 • Run the cable though a conduit if possible, but not through a conduit containing any power wiring. • Route the other end to the probe at the battery and coil up excess cable. NOTICE If the standard (25ft / 7.6m) cable is not long enough, longer cable assemblies are available in lengths of 50, 100 &...

  • Page 28: Using Temperature Compensation

    INSTALLING THE AT30 8. Check your work. Confirm that: • All connections are secure. • The shield is connected to ground at the charger end only (A1-J6). • The cable is connected to the 2-position terminal block (TB8) on the Main Control PC Board (A1).

  • Page 29: Installing The At30 For Remote Communications (Optional)

    INSTALLING THE AT30 Note the following: • You should set the Float and Equalize voltages to the values recommended by your battery manufacturer for 77 °F / 25 °C. • When you enter the Edit Mode to adjust the Float or Equalize voltage (see Section 2.3.2), the front panel meter displays the 77 °F / 25 °C value for the Float or Equalize voltage, even if the battery is warmer or cooler than 77 °F / 25 °C.

  • Page 30: Operating The At30 Battery Charger

    OPERATING THE AT30 2. OPERATING THE AT30 BATTERY CHARGER 2.1. STARTING THE AT30 2.1.1. Understanding the startup sequence The AT30 is set up at the factory to work with most common batteries and loads without further adjustment. When you start the AT30 for the first time, the factory settings (float voltage, equalize voltage, etc.) control the operation of the charger.

  • Page 31: Factory Settings Table

    OPERATING THE AT30 • If you have an optional temperature compensation probe installed, the front panel displays Pb during startup, indicating that temperature compensation is set up for lead-acid battery types. While this is being displayed, you can press any front panel key to change the display to read nicd, to change the temperature compensation setup for nickel- cadmium batteries.

  • Page 32: Using The At30 Front Panel Features

    OPERATING THE AT30 2.2. USING THE AT30 FRONT PANEL FEATURES 2.2.1. If the meter displays an error or status message The AT30 microprocessor control circuitry performs diagnostic checks of the battery charger during system start-up, then continuously during operation. If it detects a failure (E ##) or special status (A ##), an intermittent code will appear on the front instrument panel, displayed between dc output values.

  • Page 33: Selecting The Float Or Equalize Mode

    OPERATING THE AT30 • When the AT30 starts initially, the meter alternates, displaying output voltage and output current. The DC Volts and DC Amperes indicators light alternately to indicate what is being displayed. 2.2.3. Selecting the Float or Equalize mode The AT30 has two (2) output voltage settings, Float and Equalize.

  • Page 34: Manual Equalize Method

    OPERATING THE AT30 Manual Equalize Method Choose the manual equalize method when you want to equalize charge the battery, but only when you are able to monitor the battery voltage and gassing rate. After you select the manual equalize method, press the key to put the AT30 into the equalize mode.

  • Page 35: Testing The Front Panel Indicators

    OPERATING THE AT30 2.2.5. Testing the front panel indicators • Press the key. This is also the key. DOWN LAMP TEST The meter will display 8888, and all status & alarm indicators will light. key does not test the AC ON indicator. The AC ON LAMP TEST indicator lights whenever ac power is present, and the ac circuit breaker is turned on.

  • Page 36: Setting The At30 Parameters

    OPERATING THE AT30 2.3. SETTING PARAMETERS IN THE AT30 2.3.1. Understanding Parameter Settings You can change the settings of the AT30 while it is operating, using the front panel controls. The changes you make take effect immediately, and are saved internally. If the AT30 is taken out of service, and then later returned to service, it restarts using the last values you set.

  • Page 37: Setting The Float And Equalize Voltages

    OPERATING THE AT30 2.3.2. Setting the Float and Equalize voltages • Press the key. EDIT/ENTER The FLOAT and DC VOLTS indicators light, and the display flashes the present value of the float voltage. Press and release the key to DOWN increase or decrease the value in the display by one count, or press and hold the key to scroll the value in the display upward or...

  • Page 38: Setting The Equalize Timer

    OPERATING THE AT30 2.3.3. Setting the Equalize Timer • Press the key until the EQLZ HRS REMAINING, EDIT/ENTER MANUAL TIMER and AUTO EQLZ TIMER indicators all light. The display will flash the present value (hours) of the equalize timer duration. Press and release the key to increase or decrease the value on DOWN...

  • Page 39: Setting The High And Low Dc Voltage Alarms

    OPERATING THE AT30 Setting the High DC Voltage Alarm • Press the key until the HIGH DC VOLTAGE indicator EDIT/ENTER flashes, and the display flashes the present value of the high dc voltage alarm. Press and release the key to increase or decrease the value in DOWN the display by one count, or press and hold the key to scroll...

  • Page 40: Adjusting Ground Detection Sensitivity

    OPERATING THE AT30 Adjusting Ground Detection Sensitivity The AT30 ground detection alarm sensitivity Ω is adjustable from 5 to 30 k . You must have a small jeweler's screwdriver for adjustment, along with a "test resistor" whose Ohmic value is sized for the required ground sensitivity.

  • Page 41: Disabling The Ground Detection Alarm

    OPERATING THE AT30 Using Ground Detection in Charger Standby Mode If you put the AT30 into standby mode by opening the dc circuit breaker (CB2), the ground detection circuit will send an erroneous positive (+) ground fault alarm. There are two (2) ways to work around this: •...

  • Page 42: Enabling The High Dc Voltage Shutdown Feature

    OPERATING THE AT30 2.3.6. Enabling the High DC Voltage shutdown feature The AT30 has a built-in high dc voltage shutdown feature. In case of any maladjustment or internal failure that results in a continuous output voltage that is too high, the AT30 shuts down after 30 seconds to protect the battery.

  • Page 43: Adjusting The Voltmeter Accuracy

    OPERATING THE AT30 2.3.7. Adjusting the Voltmeter Accuracy The AT30 voltmeter is adjusted at the factory to display the actual dc output voltage within ±0.25%. The meter must be recalibrated if any component is replaced that affects meter accuracy, such as the Main Control PC Board (A1) or Scaling Resistor (R4).

  • Page 44: Using The Low Level Detector (Lld)

    OPERATING THE AT30 2.3.8. Using the Low Level Detector (LLD) The AT30 is equipped with a summary (common) alarm relay safety override circuit. This feature forces the alarm relay contact to transfer, sending an alarm, even if there is a catastrophic failure of the AT30 control circuitry.

  • Page 45: Using The Front Panel Security Feature

    OPERATING THE AT30 2.3.9. Using the front panel security feature The AT30 is shipped from the factory with all the front instrument panel keys enabled. You can disable the following front panel functions: • Selecting Equalize method • Changing settings using the EDIT/ENTER •...

  • Page 46: Performing Routine Maintenance

    OPERATING THE AT30 2.4. PERFORMING ROUTINE MAINTENANCE WARNING High voltages appear at several points inside the AT30. Use extreme caution when working inside the enclosure. Do not attempt to work inside the AT30 unless you are a qualified technician or electrician. Disconnect and lock out all power from the AT30 before starting to remove or replace any components.
  • Page 47 OPERATING THE AT30 2.4.4. Check temperature compensation probe (optional) If you are using the optional temperature compensation probe, confirm the probe is securely installed. Make sure the connectors and the wiring from the probe to the AT30 are in satisfactory condition. If there is a failure of the temperature compensation probe, or the wiring, the AT30 charger displays the error code E 08.

  • Page 48: Sample Preventive Maintenance Procedure

    OPERATING THE AT30 SAMPLE PREVENTIVE MAINTENANCE PROCEDURE AT30 BATTERY CHARGER (JD0064-00) Suggested Frequency: every six (6) months Maintenance date Performed by WARNING High voltages appear at several points inside the AT30. Use extreme caution when working inside the enclosure. Do not attempt to work inside the AT30 unless you are a qualified technician or electrician.
  • Page 49 OPERATING THE AT30 • Switch from Float to Equalize, then back Exercise front to Float. panel controls • Turn off dc circuit breaker. E 07 may appear on display (requires at least 5% of rated output current). Reset dc breaker. •...

  • Page 50: A Step-By-Step Troubleshooting Procedure

    SERVICING THE AT30 3. SERVICING THE AT30 3.1. A STEP-BY-STEP TROUBLESHOOTING PROCEDURE The AT30 is fully tested and calibrated from the factory, and should work for years with a minimum of attention. If you do encounter trouble, there are three (3) steps you should take to identify the problem and return the AT30 to service.

  • Page 51: Interpreting Front Panel Error Messages

    SERVICING THE AT30 3.2. INTERPRETING FRONT PANEL ERROR MESSAGES If the AT30 control circuitry detects hardware or wiring problems, it may display an error code on the front panel meter. Certain non-error status codes are also displayed. To solve an error code problem, refer to the table below, which lists the codes and procedures to use.
  • Page 52 SERVICING THE AT30 Error Meaning Repair Procedure Code internal memory Any parameters that you set, such as Float or Equalize voltage, are saved E 04 internally. The internal memory is tested on startup. If the memory test failure fails, E 04 appears on the front display. The error may also appear if the controller was trying to write to the memory while a power failure occured.
  • Page 53 SERVICING THE AT30 Error Meaning Repair Procedure Code defective Disconnect the wiring at the probe and measure the resistance across the E 08 quick-connect leads with an Ohmmeter. The resistance should measure temperature approximately 10,000 Ω at normal room temperature (77 °F / 25 °C). If the compensation probe reads open or shorted, it needs to be replaced.

  • Page 54: Using The Troubleshooting Chart

    SERVICING THE AT30 3.3. USING THE TROUBLESHOOTING CHART WARNING High voltages appear at several points inside the AT30. Use extreme caution when working inside the enclosures. Do not attempt to work inside the AT30 unless you are a qualified technician or electrician. Disconnect and lock out all power from the AT30 before starting to remove or replace any components.

  • Page 55: Troubleshooting Chart Begins On

    SERVICING THE AT30 3.4. TROUBLESHOOTING CHART PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE Front panel 1. An external 1A. Soft Reset of control board by pressing S7 reset switch. meter surge has S7 is located inside the charger, on the control board’s right displays all interrupted edge (as viewed from the rear of the front panel).
  • Page 56 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE DC breaker 1. Battery 1. Check battery wiring. Correct if necessary. (CB2) trips connected with immediately reverse polarity 2. Defective 2. Test by disconnecting wires # 7, # 8 & # 9 at the rectifier rectifier bridge modules (A16x) or at the transformer (T1-X#).
  • Page 57 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE No output 1. Site ac supply 1. If AC ON indicator is out, check the site's ac feeder circuit current, but failure breaker, ac fuses, and/or ac disconnect switch. AC ON lamp 2.
  • Page 58 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE Front panel is 1. Control pc 1. Confirm the Gate Driver PC B oard (A15-P17) is firmly dead, but ac boards connected to the Main Control PC Board (A1-J17). Confirm & dc voltages (A1/A15) not the two (2) signal harness plugs are firmly inserted into the are present at...
  • Page 59 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE Output 1. Temperature 1. If the optional temperature compensation probe is installed, voltage does compensation the output voltage may be different from the selected float or not agree probe is equalize voltage. See Section 1.11, Step 11. The difference with front installed in voltages depends on the probe temperature.
  • Page 60 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE Input current 1. Wrong ac 1. Confirm the primary taps (T1-H#) are wired correctly for your input voltage. See Section 1.6, Changing Transformer Taps. The too high voltage, or Vac too low, or T1 actual ac input voltage must be at least 88% of the rated value for mis-wired the AT30 to produce full output power.
  • Page 61 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE Lamp Test key 1. No Vac 1. The Lamp Test key does not work during an ac power failure. does not work, 2. Main Control 2. Open the AT30 front panel door. Confirm the Main Control PC or some LEDs PC Board (A1) is Board (A1) is securely mounted to the nylon standoffs.
  • Page 62 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE LOW DC 1. Battery is 1. After an ac power failure, or battery discharge for any other VOLTAGE discharged reason, it may take several hours to recharge the battery. It is indicator is on normal for the LOW DC VOLTAGE indicator to be on until the battery voltage is above the Low DC Voltage alarm setting.
  • Page 63 SERVICING THE AT30 PROBABLE SYMPTOM RECOMMENDED ACTION CAUSE AC INPUT 1. AC power 1. If the ac input power fails, the front panel AC ON indicator goes FAILURE failure out, and the AC INPUT FAILURE indicator goes on. indicator is on 2.

  • Page 64: Replacing Defective Components

    SERVICING THE AT30 3.5. REPLACING DEFECTIVE COMPONENTS WARNING High voltages appear at several points inside the AT30. Use extreme caution when working inside the enclosure. Do not attempt to work inside the AT30 unless you are a qualified technician or electrician. Disconnect and lock out all power from the AT30 before starting to remove or replace any components.
  • Page 65 SERVICING THE AT30 Replacing the Main Control (A1) and/or Gate Driver (A15) PC Boards For details of this procedure, refer to Service Instruction (JD5012-00). NOTICE Printed circuit boards are sensitive to damage from static discharges. Leave replacement boards in their anti-static bags until you are ready to install them.
  • Page 66 SERVICING THE AT30 Replacing the ac surge suppressors (VR2, VR4 or VR5) Shut down and lock out all power to the AT30. Remove the acrylic safety shield (if supplied). Disconnect the battery from the dc output terminals (TB1+/-). Remove or disconnect the upstream ac input power source. Input surge suppressor VR2 is connected to TB1-L1, VR4 is connected to TB1-L2, and VR5 is connected to TB1-L3.
  • Page 67 SERVICING THE AT30 Replacing resistors (R3, R4, R6 or R14) on Gate Driver PC Board (A15) In all AT30s, resistors R4, R6, and R14 are soldered directly onto the Gate Driver PC Board (A15). For 12 Vdc and 24 Vdc AT30s, R3 is also soldered directly onto A15.

  • Page 68: Ordering Replacement Parts

    Please provide the following information for each component: • Model number and serial number of your AT30 Series battery charger • Reference Designator, factory part number and description • Quantity required...
  • Page 69 SERVICING THE AT30 Reference Factory Part Number Rec. Description Designator Spare 12 Vdc 24 Vdc 48 Vdc 130 Vdc F1A/B/C AC Input Fuses see supplied Parts Data Package F3/F4 DC Output Fuses see supplied Parts Data Package Main Inductor see supplied Parts Data Package Optional Filter Inductor see supplied Parts Data Package Jumper for disabling Ground Detection circuit...

  • Page 70: Appendix A: At30 Performance Specifications

    APPENDIX A SPECIFICATIONS Except as noted, all specifications apply at: 77 °F / 25 °C, nominal ac line voltage & nominal float voltage 12 Vdc 24 Vdc 48 Vdc 130 Vdc Specification Conditions Vac +10%, -12% ± 0.25% 0 to 100% load Output voltage regulation frequency 60 ±...

  • Page 71: Appendix B: Field Installable Accessories

    APPENDIX B FIELD INSTALLABLE ACCESSORIES AND OPTIONS All options and accessories listed below are available in kits for field installation. Kits contain all parts and hardware with detailed installation instructions. To order accessories/options, please provide the following information for each kit: •...
  • Page 72 APPENDIX C Outline: AT30 Battery Charger NEMA-1 Style-5018 Enclosure (JE5085-00)
  • Page 73 APPENDIX C http://www.ATSeries.net/PDFs/JE5085-00.pdf...
  • Page 74 APPENDIX C Outline: AT30 Battery Charger NEMA-1 Style-5030 Enclosure (JE5086-00)
  • Page 75 APPENDIX C http://www.ATSeries.net/PDFs/JE5086-00.pdf...
  • Page 76 APPENDIX C Outline: AT30 Battery Charger NEMA-1 Style-163 Enclosure (JE5095-00)
  • Page 77 APPENDIX C http://www.ATSeries.net/PDFs/JE5095-00.pdf...
  • Page 78 Style-5018 Enclosure w/Common Options (JE5088-99) NOTICE This internal component layout drawing (JE5088-99) depicts an AT30 Series battery charger housed in a Style-5018 enclosure, with ALL available options. Standard components (A1 through VR7) are supplied in all such units. Optional components (A5...
  • Page 79 APPENDIX C http://www.ATSeries.net/PDFs/JE5088-99.pdf...

  • Page 80: Internal Component Layout: At30 Style-5018 / -5030 / -163 Encl W/Common Opts

    Style-5030 Enclosure w/Common Options (JE5089-99) NOTICE This internal component layout drawing (JE5089-99) depicts an AT30 Series battery charger housed in a Style-5030 enclosure, with ALL available options. Standard components (A1 through VR7) are supplied in all such units. Optional components (A5...
  • Page 81 APPENDIX C http://www.ATSeries.net/PDFs/JE5089-99.pdf...
  • Page 82 Style-163 Enclosure w/Common Options (JE5098-99) NOTICE This internal component layout drawing (JE5098-99) depicts an AT30 Series battery charger housed in a Style-163 enclosure, with ALL available options. Standard components (A1 through VR7) are supplied in all such units. Optional components (A5...
  • Page 83 APPENDIX C http://www.ATSeries.net/PDFs/JE5098-99.pdf...

  • Page 84: Instrument Panel / Pc Board Detail: At30 Series Battery Charger

    APPENDIX C Instrument Panel / PC Board Detail: AT30 Battery Charger w/Optional Auxiliary Alarm Relay PC Board (JE5091-39) NOTICE This instrument panel drawing (JE5091-39) depicts the optional Auxiliary Alarm Relay PC Board (A5), which provides two (2) sets of discrete form-C contacts (TB4) for the main AT alarm conditions.
  • Page 85 APPENDIX C http://www.ATSeries.net/PDFs/JE5091-39.pdf...

  • Page 86: Schematic: At30 Series Battery Charger - Standard W/O Options

    APPENDIX C Schematic: AT30 Battery Charger Standard w/o Options (JE5092-00)
  • Page 87 APPENDIX C http://www.ATSeries.net/PDFs/JE5092-00.pdf...

  • Page 88: Schematic: At30 Series Battery Charger - With Common Options

    APPENDIX C Schematic: AT30 Battery Charger w/Common Options (JE5092-99)
  • Page 89 APPENDIX C http://www.ATSeries.net/PDFs/JE5092-99.pdf...

  • Page 90: Connection Diagram: At30 Battery Charger - Power Wiring W/Common Options

    NOTICE This connection diagram (JE5093-99) depicts the mainframe power wiring of an AT30 Series battery charger with ALL features and options available from the standard ordering code. Refer to the model number featured on the data nameplate and the supplied...
  • Page 91 APPENDIX C http://www.ATSeries.net/PDFs/JE5093-99.pdf...

  • Page 92: Connection Diagram: At30 Battery Charger - Control (Signal) Wiring

    APPENDIX C Connection Diagram: AT30 Battery Charger Control (Signal) Wiring (JE5094-00)
  • Page 93 APPENDIX C http://www.ATSeries.net/PDFs/JE5094-00.pdf...

  • Page 94: Connection Detail: At30 Battery Charger - I/O Panels & Rectifier Assemblies

    APPENDIX C Connection Detail: AT30 Battery Charger I/O Panels & Rectifier Assemblies (JE5163-00)
  • Page 95 APPENDIX C http://www.ATSeries.net/PDFs/JE5163-00.pdf...

  • Page 96: Appendix D: Recommended Float/Equalize Voltages / Temp. Compensation

    APPENDIX D RECOMMENDED FLOAT AND EQUALIZE VOLTAGES This table contains suggested values for commonly used batteries. Consult your battery manufacturer's documentation for specific values and settings for your battery type. Recommended Recommended Battery Cell Type Float Voltage/cell Equalize Voltage/cell Antimony (1.215 Sp. Gr.) 2.17 2.33 Antimony (1.250 Sp.

  • Page 97: Appendix E: Dnp3 Level 2 / Modbus Communications Module

    APPENDIX E COMMUNICATIONS MODULE ONLINE SUPPLEMENT http://www.ATSeries.net/PDFs/JA0102-04.pdf OVERVIEW AT30 Microprocessor-controlled Float Battery Chargers feature provisions for an optional Communications Module, which allows users to remotely monitor and control the charger over a serial connection. This option supports DNP3 Level 2 and Modbus protocols over RS-232 or RS-485 half-duplex.

  • Page 98: Appendix F: Forced Load Sharing

    (p/n FK5046-00), and Installation & Operating Instructions (JA5054-00). SYSTEM REQUIREMENTS • The forced load sharing feature is designed only to work with two (2) AT30 Series battery chargers. You cannot force load sharing with three (3) or more AT30s. •...
  • Page 99 APPENDIX F OPERATING THE AT30 WITH FORCED LOAD SHARING Restore external power connections to both AT30s, and restart using the procedure in Section 2.1. After the AT30s cycle, the Primary charger attempts to establish communication with the Secondary. If communication is successful, the AT30s behave as follows: •...

  • Page 100: Appendix G: Ce Grounding Compliance

    APPENDIX G CE COMPLIANCE - PROPER GROUNDING • It is the responsibility of the installer of the AT30 to supply suitable grounding and approved ground wire. • The AT30 chassis must be grounded in accordance with the national electrical codes of the country where installed. •...

  • Page 101: Appendix H: Remote Shutdown

    APPENDIX H REMOTE SHUTDOWN BACKGROUND .! WARNING Charging stationary batteries can produce explosive gases! Some installations require the charging process to stop when these gases are detected. The AT30 features a remote shutdown capability, allowing the charging function to be temporarily halted, using an external user-controlled non-powered "dry"...

  • Page 102: Appendix J: Battery Open Alarm

    APPENDIX J BATTERY OPEN ALARM BACKGROUND The AT30 can be configured to periodically test for an "open battery". This feature allows the AT30 to periodically check whether the battery is capable of delivering sufficient output current to satisfy required dc loads for 3 minutes. If the battery is extremely low on capacity, or there is an open string, the Main Control PC Board (A1) will indicate an alarm, alerting the user to capacity test the battery.
  • Page 103 APPENDIX J The Battery Open alarm will activate if the dc bus falls below LV Alarm point any time during the 3-minute test. The test is immediately terminated when there is an open battery failure. On a failure, error code E 15 is indicated on the front panel display, and the Summary Alarm relay (TB3) transfers after the nominal 30-second delay.
  • Page 104 USER NOTES...
  • Page 105 USER NOTES...

  • Page 106: Manual Specifications

    MANUAL SPECIFICATIONS DOCUMENT NUMBER The text and graphics contained within this manual are controlled by the battery charger manufacturer's internal part number (JA5030-00). The revision level and dates of this manual's text and graphics are listed below. These controls supercede all other available dates. The first two and last two pages of this manual are reserved for company-specific front and back cover artwork.

  • Page 107: Related Documents (Web-Based Content)

    RELATED DOCUMENTS Doc. No. Online Hyperlink Description http://www.ATSeries.net/PDFs/JC5020-01.pdf JC5020-01 AT Series Charger Quick Setup Sheet http://www.ATSeries.net/PDFs/JA0102-01.pdf JA0102-01 AT10.1 G1 Manual (unlabeled) http://www.ATSeries.net/PDFs/JA0102-02.pdf JA0102-02 AT10.1 G2 Manual (unlabeled) http://www.ATSeries.net/PDFs/JA0102-03.pdf JA0102-03 AT30 Manual (unlabeled) http://www.ATSeries.net/PDFs/JA0102-04.pdf JA0102-04 AT Comm. Module Manual (unlabeled) http://www.ATSeries.net/PDFs/JA0102-05.pdf JA0102-05 AT-DC Dist Panel Manual (unlabeled) http://www.ATSeries.net/PDFs/JA5015-00.pdf...
  • Page 108 …for a handy guide which will lead you though a quick setup of the industry's most USER-FRIENDLY battery charger! Address: 1075 Saint John Street Easton, PA 18042-6661 Phone: 610.330.9000 Fax: 610.330.8510 Online: www.hindlepowerinc.com JA5011-03 - Rev. 06-2018 ©2018 HindlePower, Inc.
