Motor Datasheet

8.6 Options

8.6.1 Torque Arm Set

Part number: 178H5006

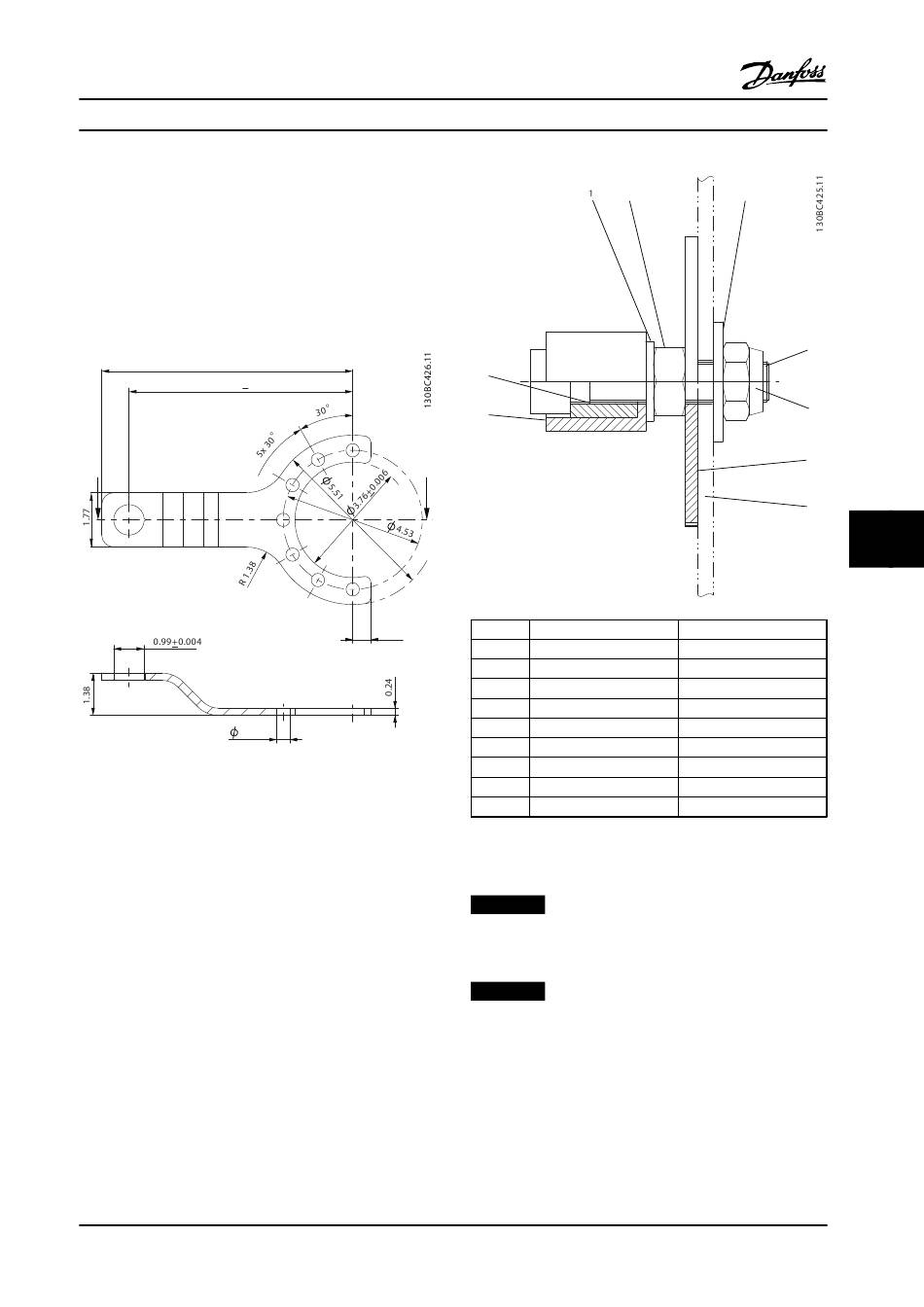

The torque arm set consists of the torque arm (see
Figure 8.13) and the mounting set (see Figure 8.14).
8.17
7.28+0.008
A
0.43
Figure 8.13 Torque Arm
MG75C422
Instruction Manual
A
0.59
A - A
Danfoss A/S © 08/2014 All rights reserved.
2
8
7
Position Description
1 Disc
2 Nut
3 Disc
4 Nut
5 Disc
6 Customer frame
7 Barrel
8 Bushing
9 Screw
Figure 8.14 Mounting Set
NOTICE!
The set also contains 3xDIN 933, M10x25, 8.8, stainless
steel screws. The tightening torque is 49 Nm.
NOTICE!
Only use the original Danfoss or comparable mounting
set to mount the OneGearDrive to the conveyor. The
mounting equipment used must ensure the same degree
of flexibility as the original Danfoss mounting set. The
torque arm cannot be screwed directly on to the
conveyor frame.
3
9
4
5
6
Specification
DIN 125-A10 5
DIN 934 M10
DIN 9021 10, 5x30x25
DIN 985 M10
Ø73x3 Stainless steel
–
POM-C white
Stainless steel
Stainless steel
29
8 8
