Final Assembly - Danfoss VLT OneGearDrive Instruction Manual

Mechanical Installation

3.8 Final Assembly

Always assemble the hollow shaft cover (4) with the
delivered screws (5) as shown in Figure 3.5.
1
1 Torque arm (optional)
2 Plastic cap
3 Eyebolt
4 Shaft cover
5 Shaft cover screws

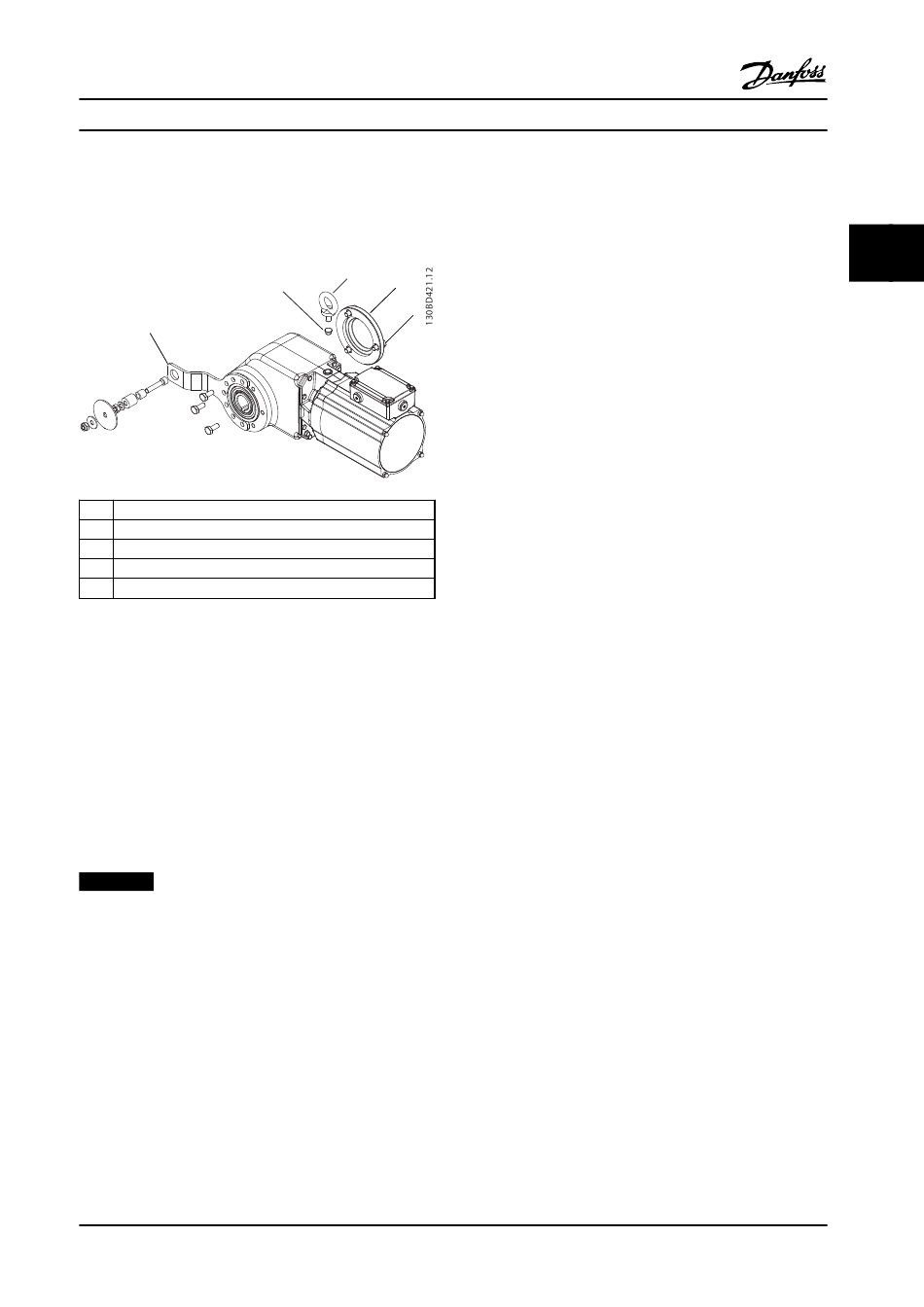

Figure 3.5 Final Assembly
1. Remove the eyebolt (3) and cover the hole with
the plastic cap (2). This ensures the hygienic
features of a smooth surface.
2. Assemble the hollow shaft cover (4) with the
three screws (5) onto the OneGearDrive.
2a Fasten the screws by hand.
2b Using a flat wrench, turn the screws
180° clockwise.
The tightening torque is 4.5 Nm.
NOTICE!
The OneGearDrive does not require breather vents.
Never install breather vents instead of the oil screws.
MG75C422
Instruction Manual
3
4
2
5
