TrueAlarm Smoke Detection
TrueAlarm Addressable Detection. IDNet addressable
device compatibility includes Simplex TrueAlarm
photoelectric smoke and temperature sensors. The 4008 fire
alarm control panel provides a subset of the complete
analog TrueAlarm features. TrueAlarm sensors appear to
the panel essentially as addressable detectors and that term
is used for 4008 documentation.
Approximately every four seconds the addressable smoke
detectors transmit an output value based on their smoke
chamber condition. The panel CPU internally maintains a
current value, peak value, and an average value for each
detector's output. Status is determined by comparing the
current value to its average value. Tracking this average
value as a continuously shifting reference point filters out
environmental factors that cause shifts in sensitivity.
Alarm Determination. Photoelectric detection sensitivity
is 2.5%/ft obscuration. All detectors can be selected for a
reduced sensitivity detection mode that satisfies the city of
Boston requirements. Addressable heat detectors provide a
fixed temperature alarm at 135° F (57° C) and may be
individually selected to also provide rate-of-rise alarm of
15° F (8.3° C) per minute where applicable.

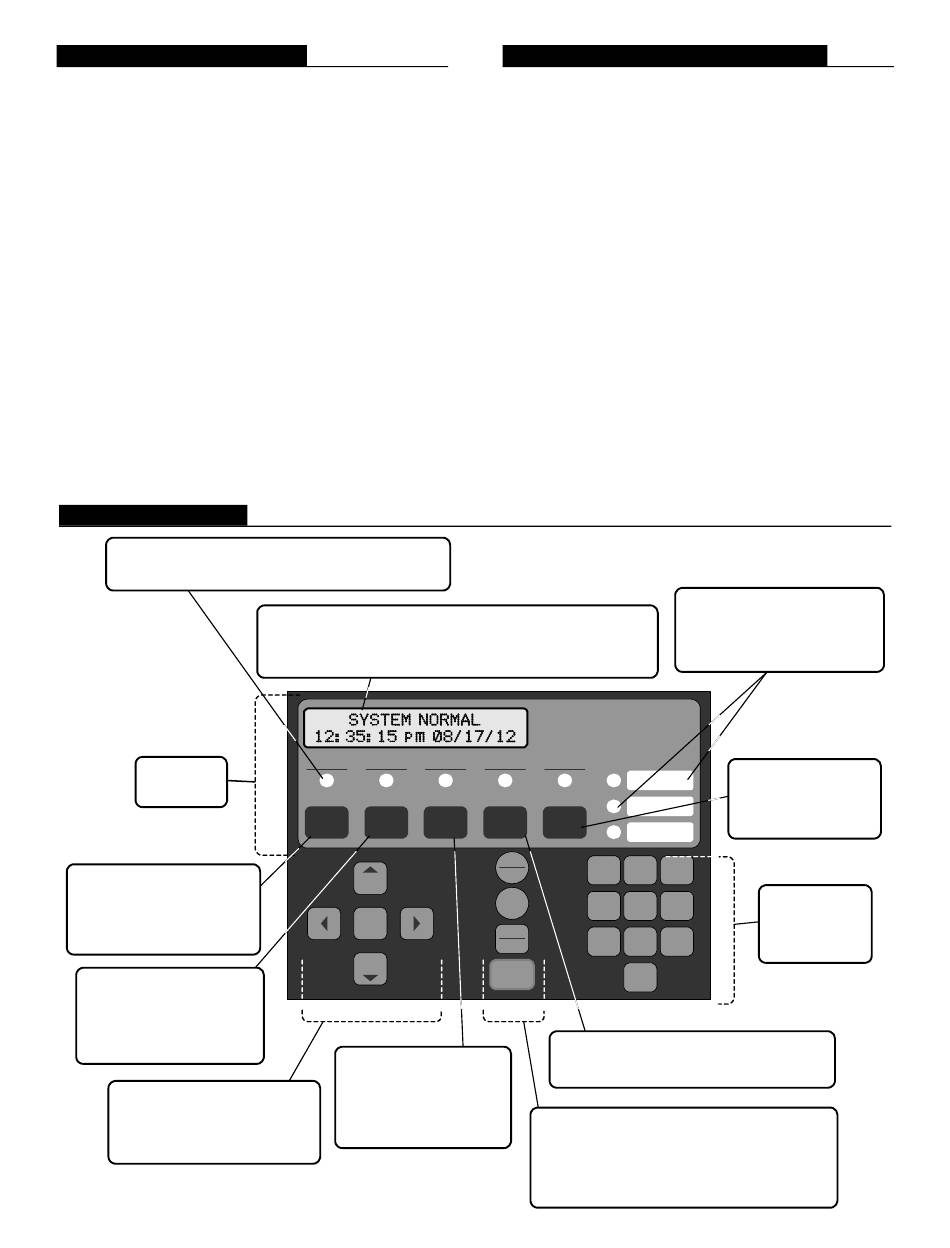

Keyboard Reference

FIVE STATUS INDICATOR LEDs provide system status indications in
addition to LCD information, LEDs flash to indicate the condition and
then when acknowledged, remain on until reset
CONTROL
PANEL VIEW
with door closed
ALARM ACK acknowledges a Fire
Alarm condition, logs the
acknowledge, silences the operator
panel and all annunciator tone-alerts,
and steps through the active Alarm list
SUPV ACK acknowledges system
supervisory conditions, logs the
acknowledge, silences the operator
panel and all annunciator tone-alerts,
and steps through the active
Supervisory list
FIVE NAVIGATION KEYS: MENU selects
the on-screen programming menu; left and
right arrows moves the position on the
screen, and PREVIOUS and NEXT
navigate screen selections
2 X 20 LCD READOUT, LED backlighted during normal conditions and abnormal
operating conditions, provides up to 20 characters for custom label information
FIRST ALARM DISPLAY: Operation can be selected for maintained display of first
alarm until acknowledged
FIRE SYSTEM SYSTEM
ALARM SUPERVISORY TROUBLE
ALARM SUPV TROUBLE
ACK ACK ACK
PREVIOUS
MENU
NEXT
TROUBLE ACK acknowledges
system troubles, logs the
acknowledge, silences the
operator panel and all annunciator
tone-alerts, and steps through the
active Trouble list

Diagnostics and Default Device Type

Status Monitoring. 4008 TrueAlarm operation provides
the ability to automatically indicate when an addressable
detector is dirty or excessively dirty. The NFPA 72
(National Fire Alarm and Signaling Code) requirement for
a test of the sensitivity range of the detectors is fulfilled by
the TrueAlarm ability to maintain the sensitivity level of
each addressable detector.
Modular Addressable Detector/Base Combination.
Modular TrueAlarm addressable detectors use the same base
which allows different detector head types (photoelectric
smoke, or heat) to be easily interchanged to meet specific
application requirements. This feature also allows
intentional detector (sensor head) substitution during
building construction. When conditions are temporarily
dusty, instead of covering the smoke detectors (causing
them to be disabled), heat detector heads may be installed
without reprogramming the control panel. Although the
control panel will indicate an incorrect detector type, the
heat detector will operate at a default setting to provide heat
detection for building protection at that location.
ALARM AC
SILENCED POWER
ALARM SYSTEM
SILENCE RESET
ABC
DISABLE
1 2
ENABLE
GHI JKL
FUNCTION
4 5
PQRS TUV
EXIT
7 8
CLEAR
ENTER
0
ALARM SILENCE causes audible notification appliances
to be silenced, used after evacuation is complete and
while alarm source is being investigated
FOUR EXTENDED FUNCTION KEYS: ENTER confirms
selections, EXIT/CLEAR backs out of the present screen menu
and clears information that has not been entered, FUNCTION
enables the active function menu, DISABLE/ENABLE toggles
the function or circuit status as appropriate per the selected
screen
3
THREE PROGRAMMABLE LEDs
provide custom labeling (labels insert into
a pocket), the top two LEDs are
selectable as red or yellow, the bottom
LED is selectable as green or yellow
SYSTEM RESET restores
control panel to normal when
all alarmed inputs are
returned to normal
DEF
3
MNO ALPHANUMERIC
6
KEYPAD provides
programming entry of
WXYZ
numbers and letters
9
