Features

Standard features:
• 80 Character, alphanumeric LCD readout with wide
viewing angle
• Eight, Class B Initiating Device Circuits (IDCs)
• Four, Class B Notification Appliance Circuits (NACs)
• 4 A power supply/battery charger
• Power-limited design
• Pluggable terminal blocks
• Internal DACT is included on UL listed models;
available separately as required for ULC listed models
®
Simplex system accessory compatibility:
• 4602 Series Remote Control Unit (RCU) and Status
Command Unit (SCU), two-wire serial
communications
• 4601 Series Annunciators
• 4003 Voice Control Panels
• 4009 NAC Power Extenders
Software features:
• Menu-driven programming
• On-site programmable custom labels
• Four operator access levels
• Historical event logs
• Circuit selectable alarm verification
• WALKTEST™ one-person system testing**
• Selectable active status reminder
Optional expansion:
• Two circuit IDC, two circuit NAC/relay
• Four circuit NAC/relay
• Four circuit IDC (low current and high current
versions)
• Four circuit Class A NAC or IDC zone conversion
• Eight circuit I/O module
• Remote station/city connection
• Additional 5 A power supply
UL Listed to Standard 864
* Refer to page 6 for additional ULC listing information. This product has been approved by
the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California
Health and Safety Code. See CSFM Listing 7165-0026:212 for allowable values and/or
conditions concerning material presented in this document. It is subject to
re-examination, revision, and possible cancellation. Accepted for use – City of New York
Department of Buildings – MEA35-93E. See page 7 for ULC designations. Additional
listings may be applicable; contact your local Simplex product supplier for the latest
status. Listings and approvals under Simplex Time Recorder Co. are the property of Tyco
Safety Products Westminster.
†
†
®
LifeAlarm Fire Alarm Control Panels
4005 Series Fire Alarm Control Panels
Providing 8 to 36 IDCs and 4 NACs

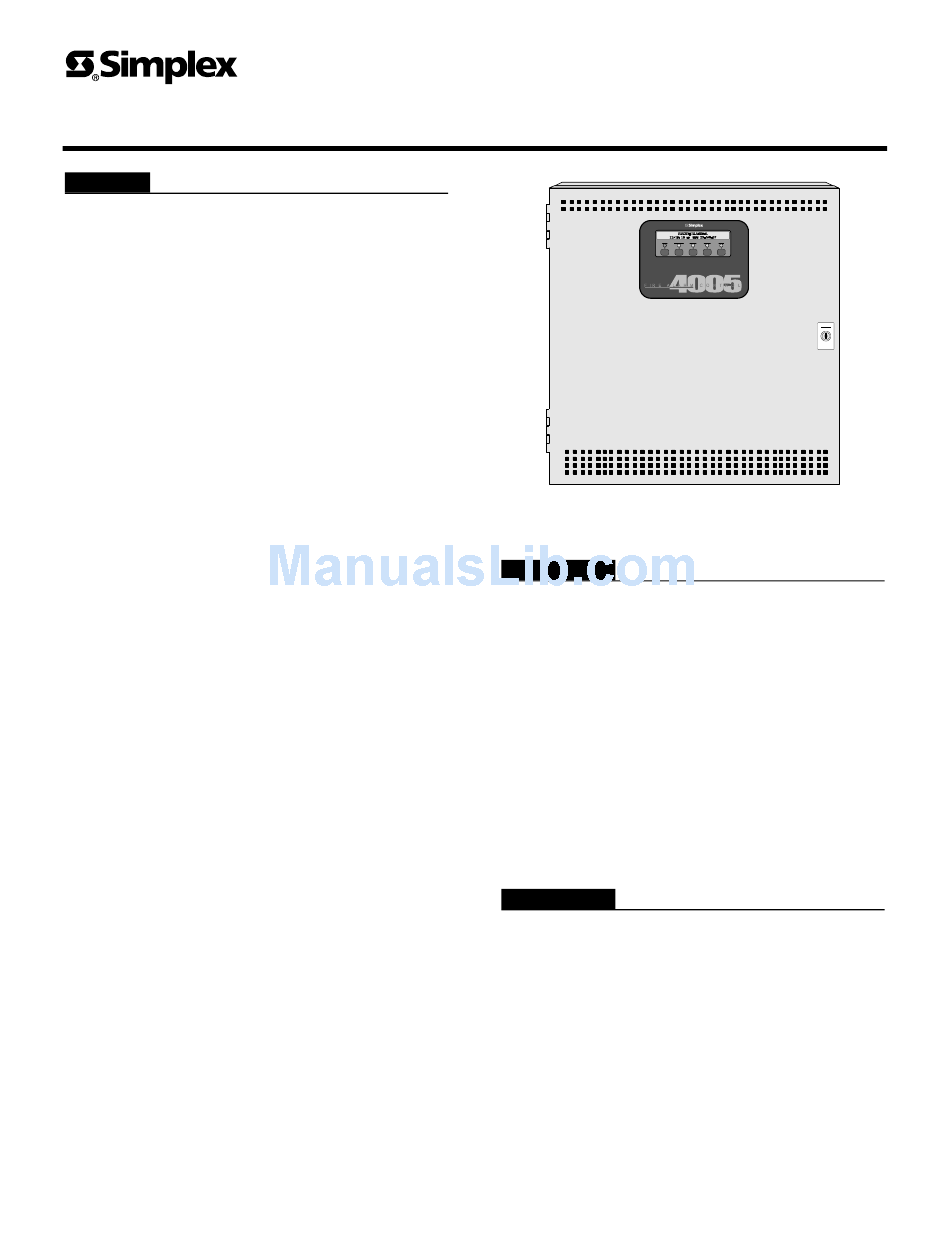

Model 4005 Fire Alarm Control Panel

Introduction

For areas requiring eight to thirty-six IDC zones, Simplex
4005 series fire alarm control panels provide flexible
initiating circuit monitoring, extensive programmable
control capability, and LCD annunciated circuit-specific
custom labels. Surface mount components, efficient
microprocessor programming, and easy-to-use control
panel operation combine to provide an extensive feature
list in a compact, "installation friendly" package.
Panel status and circuit information is efficiently
indicated by an alphanumeric LCD readout featuring two
lines of 40 characters each. The panel control switches are
clearly marked for intuitive operation. Programming of
the selectable features is performed by using the display
and the panel control switches while in the programming
mode.

Applications

The 4005 series fire alarm control panel provides
protection for a wide variety of mid-size facilities in the
following fields: Educational, Health Care, Business,
Storage, Hospitality, Residential, and General Assembly.
Its modular design allows IDCs and NACs to be
incremented in groups of two or four to satisfy circuit
requirements without specifying excess capacity. If the
system expands, then additional "snap-in-place" modules
can be easily installed on-site.
** WALKTEST performance testing is protected under US Patent No. 4,725,818.
† NACs may be individually configured for dry contact relay operation.
NOTE: Contact your local Simplex product supplier for fire alarm control panels suitable for
Release Control applications.
