Reattach the faceplate to the controller as follows:
4.
Align the two EU or MK mounting tabs on the sides
a.
of the faceplate with the slots on the sides of
MLC Plus 84. Align the eight faceplate mounting
tabs (shown in the inset in figure 10) on the
MLC Plus 84 with the
corresponding slots in
the sides of the
faceplates.

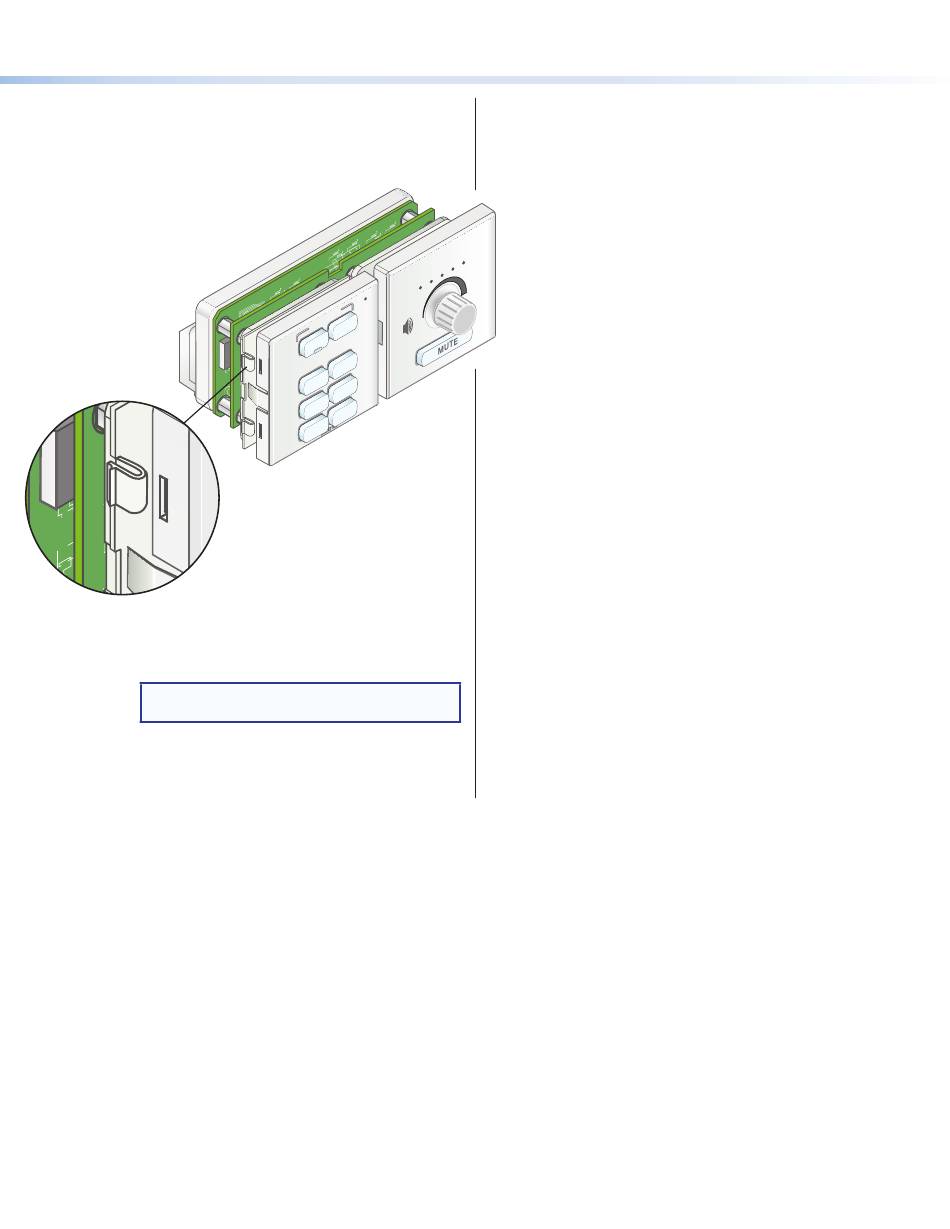

Figure 10.
Gently but firmly press the faceplate against the
b.
MLC Plus 84 until all the tabs are inserted into the
slots and the ridge on each tab snaps into place in
the faceplate.
NOTE: It is important to make sure that ALL
eight tabs are securely snapped into place.
If reattaching the volume control faceplate, place the
5.
knob back on its shaft and use the small Allen wrench
to tighten the set screw to secure the knob
M E
L U
V O
Y
L A
S P
D I
F
O F
O N
C
D O
M
C A
P C
P
T O
L A P
2
P
T O
L A P
1
A
V G
M I
H D
Aligning and Reattaching
the Faceplates
Step 4: Cable All Devices
Cable devices to the controller (see
1.
Features
on page 7).
Connect power cords and power on all the devices.
2.
Cabling and
