192 Electrical installation – North America
Motor cabling

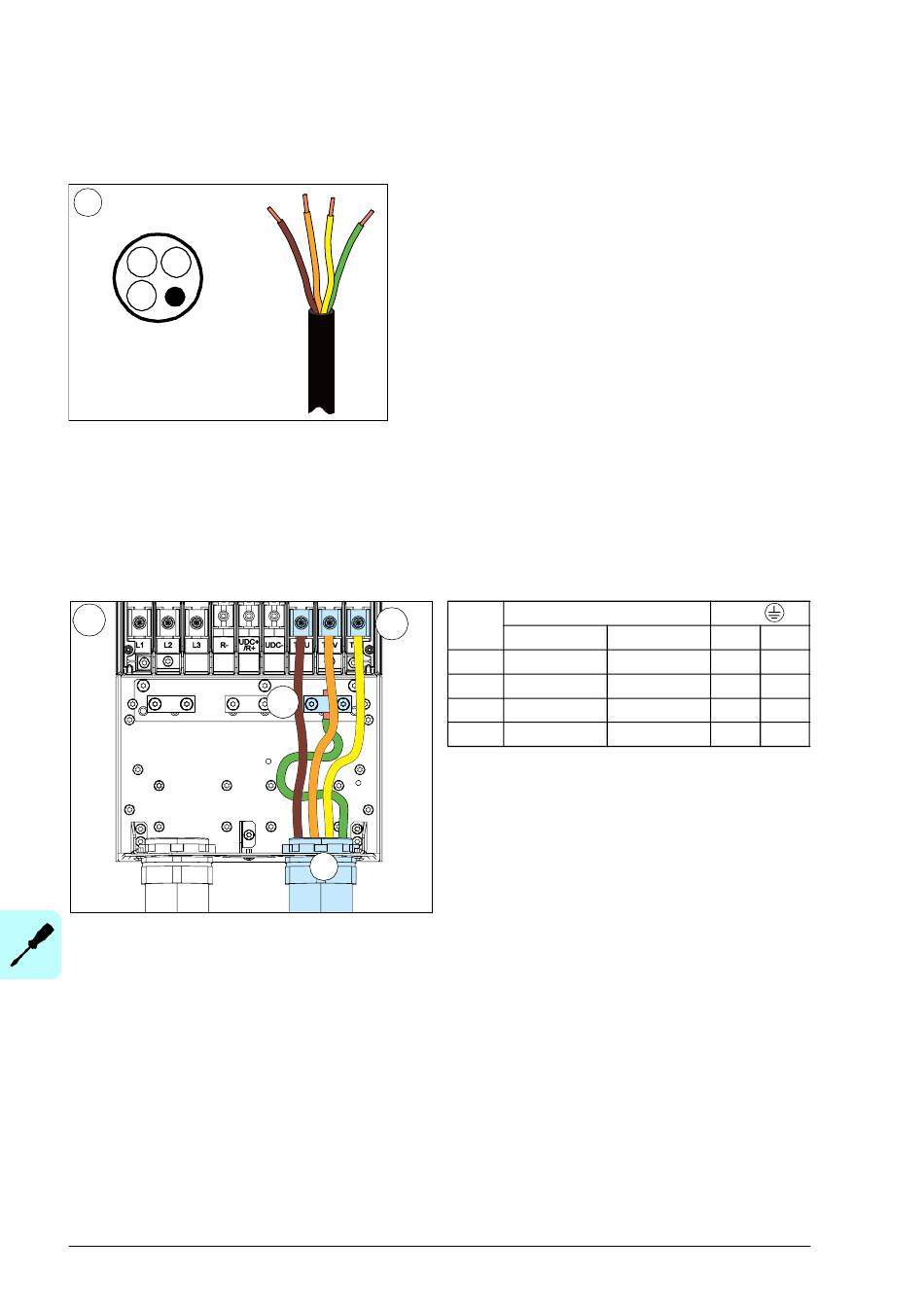

8. Strip the ends of the conductors.
8
Conduit
9. Slide the conductors through the conduit.
10. Connect the conductors:
• Connect the grounding conductor to the grounding terminal (10a).
• Connect the phase conductors to terminals T1/U, T2/V and T3/W. Tighten the
screws to the torque given in the table (10b).
10
UL
Note 1 for frames R8...R9: If you connect only one conductor to the connector,
ABB recommends that you put it under the upper pressure plate. If you use
NEC
parallel power cabling, put the first conductor under the lower pressure plate and
the second under the upper one.
Note 2 for frames R8...R9: The connectors are detachable but ABB does not
recommend that you detach them. If you do, detach and reinstall the connectors
as described in section
10b
10a
9
Detaching and reinstalling the connectors
Frame L1, L2, L3, T1/U, T2/V, T3/W
size
N·m
R6 30
R7 40
R8 40
R9 70
PE,
lbf·ft N·m N·m
22.1 9.8 7.2
29.5 9.8 7.2
29.5 9.8 7.2
51.6 9.8 7.2
on page 193.
