Use the up or down arrow to increment or decrement the numerical
value.
6. Press the Center button for Enter.
7. Press the Down arrow to scroll to the next screen to enter the Network mask.
8. Use steps 4 to 6 to enter the Eth1 Network Mask.
9. Press the Center button for Enter.
10. You will be prompted to Save Network Cfg.
11. Press the left arrow button, select Yes, then Press the Center button for Enter
to save your selection.
12. Press the Back button twice to go back to the Main Menu.
13. You will need to reboot the IOLAN SCG using the power switches on the back
of the unit to have the new IP address take effect.

Connecting Ethernet

Connect LAN cable/s from the Ethernet 1/2 RJ45 or SFP connectors on the back of
the IOLAN SCG to your network. Cat5e cables are recommended for 1000 Mbps
connections.

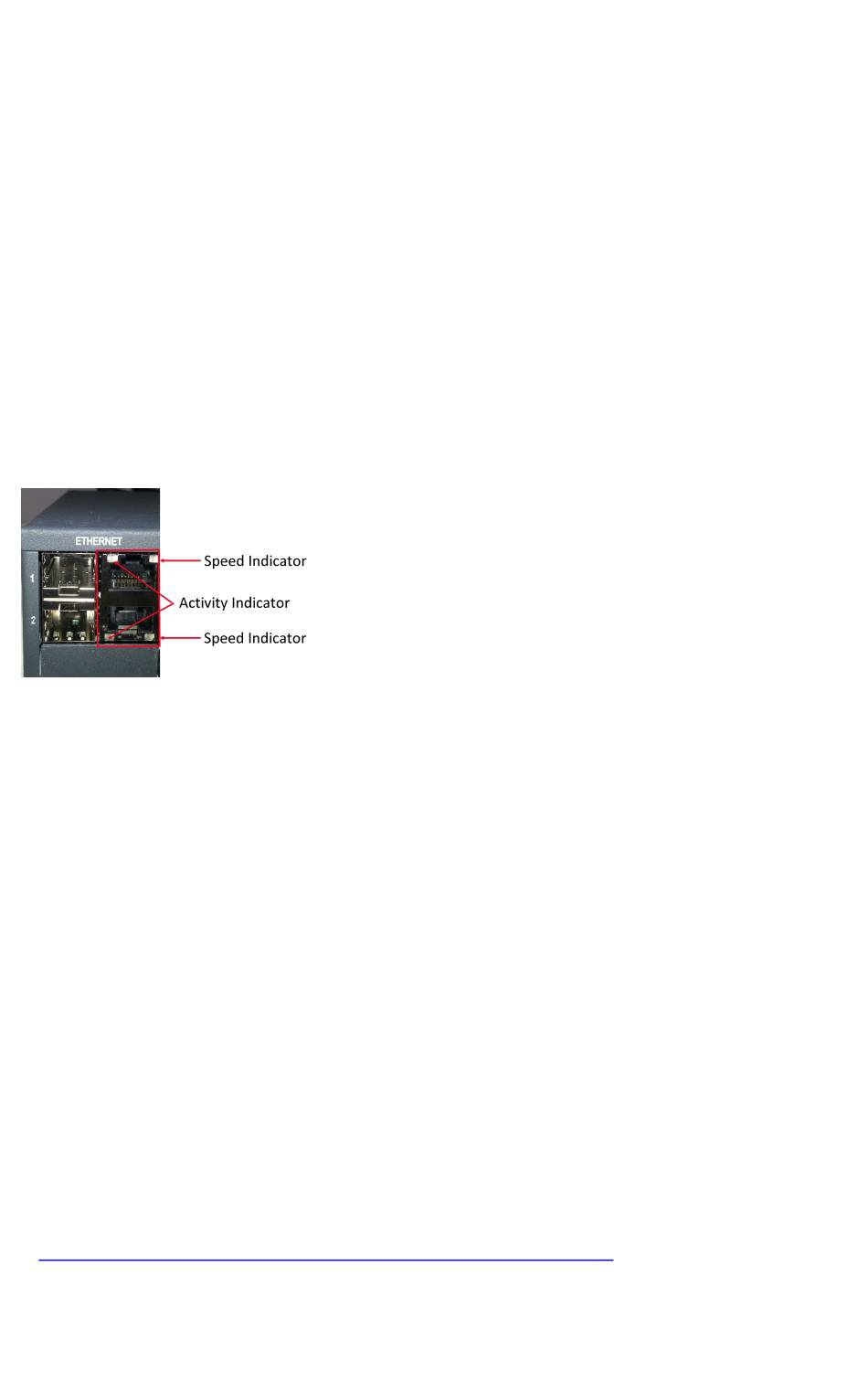

Speed Indicator (on Ethernet Connector/s)
• Green—1000 Mbps (flashes with activity)
• Orange—100 Mbps (flashes with activity)
• Off—No LAN connection
Activity Indicator
Off—No serial activity
On—Tx/Rx flashes with transmit/receive serial activity

Connecting the Serial Device

Connect devices, workstations, servers or routers using a straight through serial
cable.

Registering the IOLAN

You should register your IOLAN online at:
www.perle.com/support_services/warranty_reg.asp
Contacting Technical Support
Contact information for the Perle Technical Assistance Center (PTAC) can be found
at the link below.
www.perle.com/support_services/support_request.shtm
