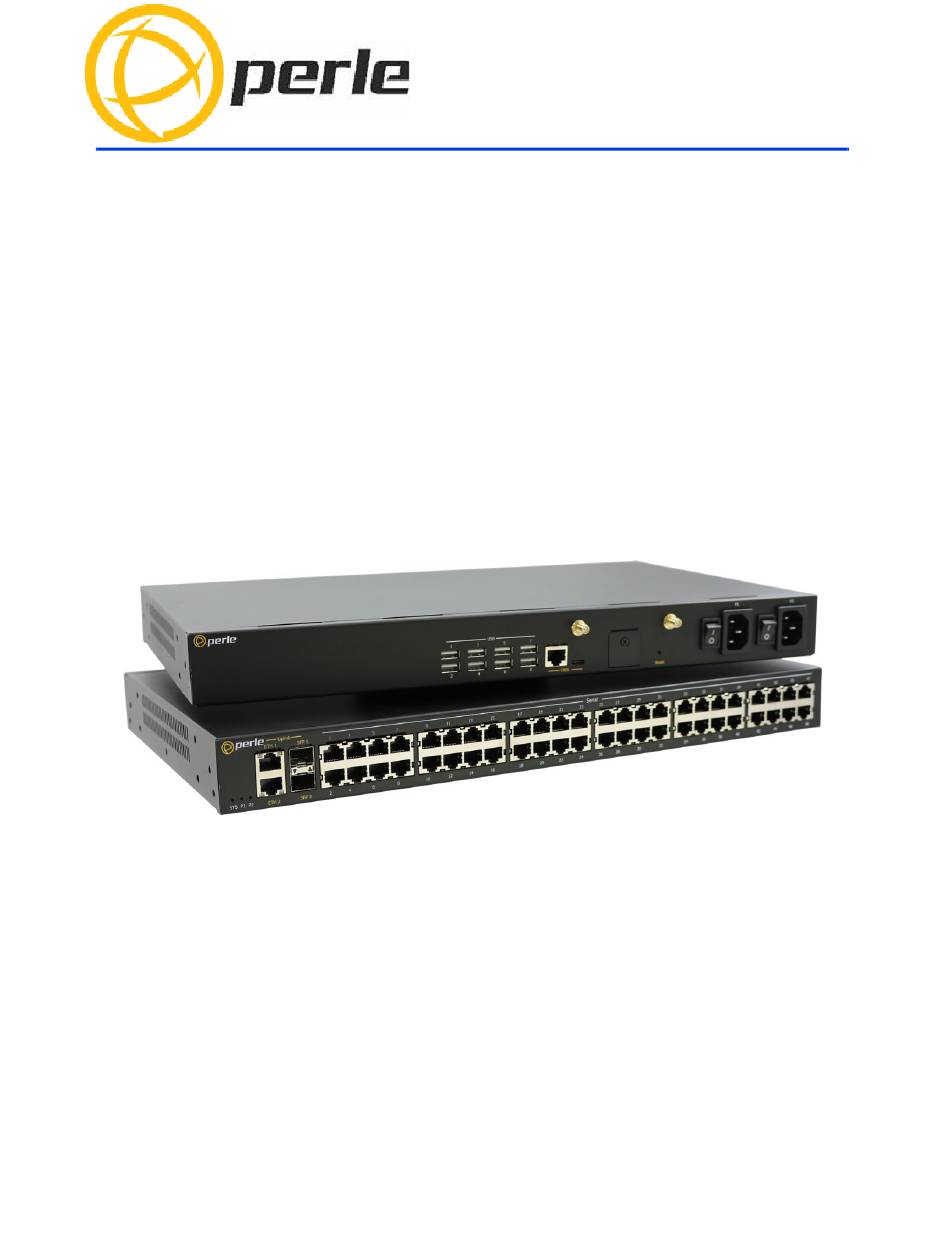

- Page 1 IOLAN SCR226/SRC226 SCR242/SCRC242 SCR258/SCRC258 Hardware Installation Guide June 2024 Document Part#5500491-10 Revision A1 #.07.25.2024 www.perle.com...
-
Page 2: Table Of Contents
Hardware..........5 IOLAN SCR Console/USB Port View (cellular model shown) ....5 IOLAN SCR226, SCR242, and SCR258 Serial/Ethernet Port View ... 5 LEDs......................6 Connecting Serial Devices ................. -
Page 3: Preface
Perle IOLAN. Information to configure your Perle IOLAN SCR can be found in the IOLAN SCR User’s Guide and in the IOLAN SCR CLI Guide on the Perle website and in your IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Quick Start Guide. -
Page 4: Additional Documentation
Perle IOLAN even if Perle has been advised or the possibility of such damages or they are foreseeable or for claims by any third party. -
Page 5: General Cautions And Warnings
Warning: In case of malfunction or damage, no attempts at repair should be made by the user. Do not dismantle this product. In case of malfunction or damage, contact Perle Technical support. Avertissement: En cas de dysfonctionnement ou de détérioration, aucune tentative de réparation ne doit être effectuée par l'utilisateur. - Page 6 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
-
Page 7: Overview
The IOLAN SCR gives you a way to access serial devices remotely from anywhere there is a network connection. For infrastructure management, the Perle IOLAN SCR will provide the most versatile access to your IT equipment's serial consoles whether in a large scale data center or remote branch. -
Page 8: Leds
Only one console port can be used at a time. The RJ45 console port is an 8-pin female connector (with DTE pinouts). See RJ45 Console Port Pin- in the cabling section of this guide. IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide... -
Page 9: Connecting Serial Devices
1. Connect the power, then set the power switches to the On position. 2. You can connect the USB console port directly to a PC's USB port. If using the RJ45 port, you will need to connect to a serial port using an adapter like the Perle 1100300-10, RJ45 to DB-9 adapter. - Page 10 PCB. The SIM card has a notched corner for orientation and the SIM card can only be inserted the correct way. You will hear an audible click when the SIM is inserted correctly. 3. Align the SIM cover plate and secure the plate with the screw. IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide...
-
Page 11: Power Switches
Reboots. All configuration Reset button when the solid Red, then and files will remain the IOLAN is running solid green, same. changing to flashing orange until the IOLAN is finish the reboot. IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide... - Page 12 System LED rebooted, mode turns Red, then release, indicating the unit console ports reverts the unit will continue to has no back to baud rate 9600 boot configuration IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide...
-
Page 13: Configuring Methods For The Iolan Scr
If you select Get Started, fill in the required fields, apply the changes, then save and exit. The config- uration changes will be immediately applied to the IOLAN. You can now access your IOLAN’s com- plete configuration using your supplied credentials from the WebManager. IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide... -
Page 14: Webmanager
WebManager The Perle WebManager is an embedded Web based application that provides an easy to use a browser interface for managing the IOLAN. This interface provides the ability to configure and manage the IOLAN through any standard desktop web browser. -
Page 15: Appendix A-Technical Specifications
5% to 95% non-condensing Storage Humidity Range 5% to 95% non-condensing Operating Altitude Up to 3,048 meters (10,000 feet) Case SECC Zinc plated sheet metal (1 mm) Ingress Protection Rating IP30 Standards and Certifications IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide... - Page 16 EN 301 908-1 (Radiated emissions RF control and monitoring) EN 301 908-2 (RF conducted) EN 301 908-13 (RF Conducted) EN 62311 (Human exposure restrictions for radio frequency electromagnetic fields) Other Reach, RoHS and WEEE compliant IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide...
-
Page 17: Appendix B-Cabling And Pin-Outs
The following table shows the RJ45 serial port pin-out when port is configured as “Straight” mode. The following table shows the RJ45 serial port pin-out when port is configured as “Rolled” mode. Hardware Installation Guide IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258... - Page 18 RJ45 Console Port Pin-out Hardware Installation Guide IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258...
- Page 19 RJ45 to RJ45 Cable Pin-out Pinout 1 ---------------->1 2 ---------------->2 3 ---------------->3 4 ---------------->4 5 ---------------->5 6 ---------------->6 7 ---------------->7 8 ---------------->8 Hardware Installation Guide IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258...
-
Page 20: Appendix C-Maintaining Your Iolan Scr
Do not use solvents or cleaning agents on this unit Keep vent holes clear of debris If case gets dirty wipe with a dry cloth Ensure all cables are in working condition IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258 Hardware Installation Guide... -
Page 21: Appendix D-Mechanical
Appendix D—Mechanical Hardware Installation Guide IOLAN SCR226/SCRC226, SCR242/SCRC242, and SRC258/SCRC258...
