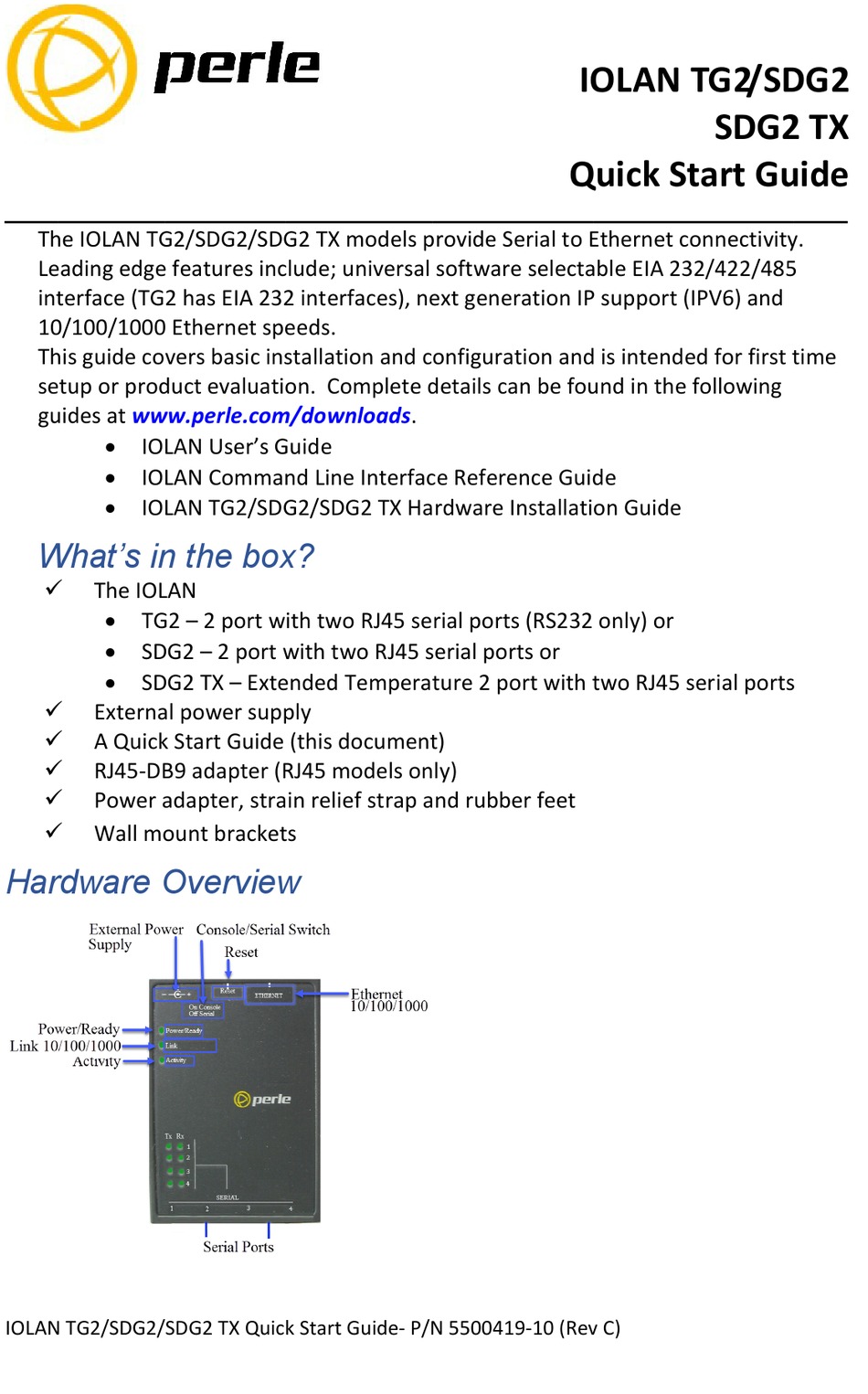

The IOLAN TG2/SDG2/SDG2 TX models provide Serial to Ethernet connectivity.
Leading edge features include; universal software selectable EIA 232/422/485
interface (TG2 has EIA 232 interfaces), next generation IP support (IPV6) and
10/100/1000 Ethernet speeds.
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation. Complete details can be found in the following
guides at www.perle.com/downloads.
IOLAN User's Guide
IOLAN Command Line Interface Reference Guide
IOLAN TG2/SDG2/SDG2 TX Hardware Installation Guide
What's in the box?
The IOLAN
TG2 – 2 port with two RJ45 serial ports (RS232 only) or
SDG2 – 2 port with two RJ45 serial ports or
SDG2 TX – Extended Temperature 2 port with two RJ45 serial ports
External power supply
A Quick Start Guide (this document)
RJ45-DB9 adapter (RJ45 models only)
Power adapter, strain relief strap and rubber feet
Wall mount brackets
Hardware Overview
IOLAN TG2/SDG2/SDG2 TX Quick Start Guide- P/N 5500419-10 (Rev C)
IOLAN TG2/SDG2
SDG2 TX
Quick Start Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Perle IOLAN SDG2 TX
Summary of Contents for Perle IOLAN SDG2 TX
- Page 1 (TG2 has EIA 232 interfaces), next generation IP support (IPV6) and 10/100/1000 Ethernet speeds. This guide covers basic installation and configuration and is intended for first time setup or product evaluation. Complete details can be found in the following guides at www.perle.com/downloads. IOLAN User’s Guide ...
- Page 2 Back View TG2/SDG2 with connector for Barrel Connection Back View SDG2 TX with connector for Terminal Connection Button/Switch Functions Reset Button The inset RESET button will reboot the IOLAN if pushed in and released quickly. It will reset the IOLAN to factory defaults if pushed in and held for more than three seconds Console Switch The IOLAN is set in the factory to serial (up position).
- Page 3 Loosen the left screw on the top of the terminal connector block, then insert your positive (+) wire into the left terminal and screw it down tight (.51Nm torque). Loosen the right screw on the top of the terminal connector block, then insert your negative (-) wire into the right terminal and screw it down tight (.51Nm torque).
- Page 4 Registering the IOLAN You should register IOLAN online at: www.perle.com/support_services/warranty_reg.asp Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtm IOLAN TG2/SDG2/SDG2 TX Quick Start Guide- P/N 5500419-10 (Rev C)
