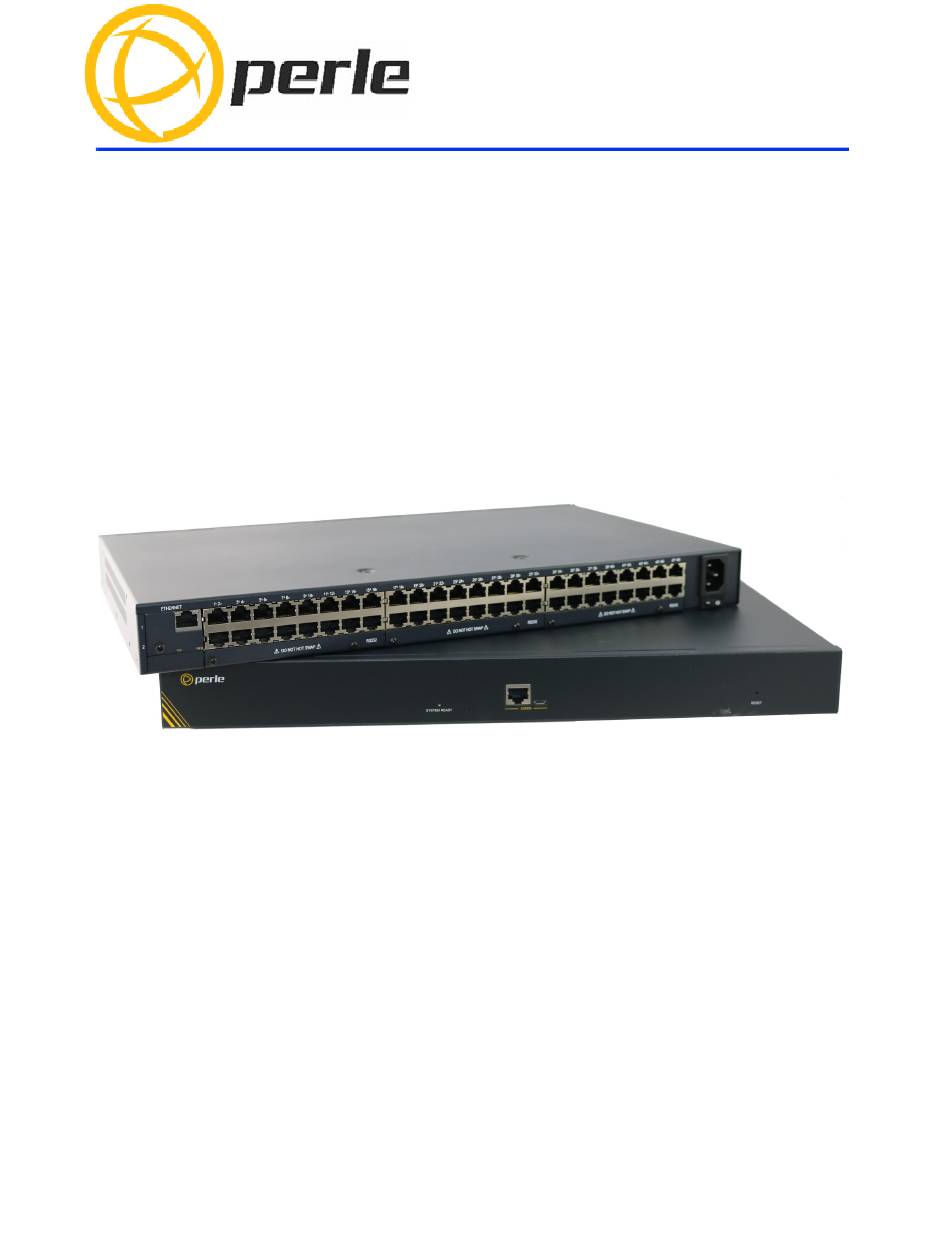

- Page 1 IOLAN SCG Hardware Installation Guide Updated: Oct 29, 2018 Version A.10.29.2018 www.perle.com Document Part#:5500438-10...
-
Page 2: Preface
IOLAN. This document does not cover how to configure your Perle IOLAN. Information to configure your Perle IOLAN can be found in the IOLAN User’s Guide V5.0 and greater, the IOLAN SCG Quick Start Guide on the Perle web- site. - Page 3 Preface Additional Documentation Document Description IOLAN User’s Guide V5.0 and User guide explaining how to configure the IOLAN features using the WebManager or DeviceManager greater applications. New users should use these methods to configure the IOLAN SCG. IOLAN CLI (Command Line Command Line Interface Reference Guide using CLI commands to configure the IOLAN (this is an advanced Interface) Reference Guide V5.0...
- Page 4 Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
-
Page 5: Publishing History
Publishing History Publishing History Date Revision Update Details June 2018 A.06.21.2018 Initial release of the IOLAN SCG series. October 2018 A.10.29.2018 Added pinout diagrams for serial ports. IOLAN SCG Hardware Installation Guide... -
Page 6: Table Of Contents
Table of Contents Preface ..........2 Publishing History . -
Page 7: Overview
IT equipment's serial consoles whether in a large scale data center or remote branch. The IOLAN SCG Series is the next edition in our highly successful line of serial console servers. The IOLAN SCG gives you a way to access serial devices remotely from anywhere there is a network connection. -
Page 8: Iolan Scg Components
IOLAN SCG Components IOLAN SCG Components IOLAN SCG Front View IOLAN SCG Back View Ethernet LAN Port The Ethernet RS232 RJ45 port provides the standard Ethernet interface speeds of 10/100/1000 Mbps through twisted pair (UTP) cables of up to 100 meters (328ft) in length. Once the IOLAN has connected and the link is established, the speed LED will turn on. -
Page 9: Power Switch
IOLAN SCG Components Ethernet Link Status Speed Indicator Activity Indicator Description Flashes with activity 1000 Mbps Green Flashes with activity 10 /100 Mbps Orange No LAN connection Power Switch The IOLAN has one power connector located on the back of the IOLAN. The power switch should be in the off position when connecting the power cord. - Page 10 IOLAN SCG Components 4. On the PC, select Choose Start-> Control Panel-> Hardware and Sound or equivalent on the Windows Operating System you are using. The exact procedure may vary depending on the ver- sion of Windows you are using. 5.
-
Page 11: Reset Function
Reset Function Resetting the IOLAN SCG This inset reset button allows you to reset the IOLAN, reset the IOLAN to its Perle or custom factory default configuration or reset the IOLAN to the Perle factory default settings. The Power/Ready LED color and the resetting of the IOLAN default configuration vary depending on how long you press and hold the RESET button, as shown in the table below. -
Page 12: Configuring The Iolan Scg
WebManager The Perle WebManager is an embedded Web based application that provides an easy to use a browser interface for managing the IOLAN. This interface provides the ability to configure and manage the IOLAN. This is accessible through any standard desktop web browser. You must have preconfigured a valid IP address on the IOLAN before connecting with the WebManager. -
Page 13: Appendix A - Technical Specifications
Appendix A - Technical Specifications Technical Specifications Input power 100-240 VAC, 50-60 Hz, 1.5 Amps max Interfaces RJ45 Serial class RS232 ports 16, 32, 48 - shielded RJ45 ports Ethernet Port 1 Ethernet 10/100/1000 Up to 100 meters (328 ft.) Auto-negotiation Auto-MDI/MDIX Ethernet isolation 1500 V... -
Page 14: Appendix B - Label (Sample)
Appendix B - Label (sample) IOLAN SCG Hardware Installation Guide... -
Page 15: Appendix C - Cabling And Pinouts
Appendix C - Cabling and Pinouts RJ45F to DB9M DTE (Straight-through) The following diagram shows the IOLAN RJ45DB9M DTE adapter pinouts. RJ45F DB9M (RTS) 1 7(RTS) (DTR)2 4(DTR) (TX)3 3(TX) (GND)4 5(GND) (DCD)5 1(DCD) (RX) 6 2 (RX) (DSR) 7 6(DSR) (CTS) 8 8(CTS) - Page 16 RJ45F to DB25M (Straight-through Adapter) The following diagram shows the IOLAN RJ45FDB25M (DTE) adapter pinouts. RJ45F DB25M (RTS) 1 4(RTS) (DTR)2 20(DTR) (TX)3 2(TX) (GND)4 7(GND) (DCD)5 8(DCD) (RX) 6 3 (RX) (DSR) 7 6(DSR) (CTS) 8 5(CTS) IOLAN SCG Hardware Installation Guide...
- Page 17 RJ45 Serial Ports (DCE) - Straight-through The following diagram shows the RJ45 serial port pinout (DCE) mode. RJ45 (CTS) (IN) (DSR) (IN) (RX) (IN) (GND) (NOT USED) (TX) (OUT) (DTR) (OUT) (RTS) (OUT) IOLAN SCG Hardware Installation Guide...
- Page 18 RJ45 Serial Ports DTE - Rolled The following diagram shows the RJ45 serial pinout (DTE) mode. RJ45 (RTS)) (OUT) (DTR) (OUT) (TX) (OUT) (GND) (DCD) (IN) (RX) (IN) (DSR) (IN) (CTS) (IN) IOLAN SCG Hardware Installation Guide...
- Page 19 RJ45 Console Port (DTE) The following diagram shows the RJ45 console port (DTE) mode. RJ45 (RTS)) (OUT) (DTR) (OUT) (TX) (OUT) (GND) (GND) (RX) (IN) (DSR) (IN) (CTS) (IN) IOLAN SCG Hardware Installation Guide...
-
Page 20: Appendix D - Maintaining Your Iolan
Appendix D - Maintaining your IOLAN Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN to provide proper airflow through the unit Do not use solvents or cleaning agents on this unit Keep vent holes clear of debris ... -
Page 21: Appendix E - Mechanical
Appendix E - Mechanical IOLAN SCG Hardware Installation Guide...
