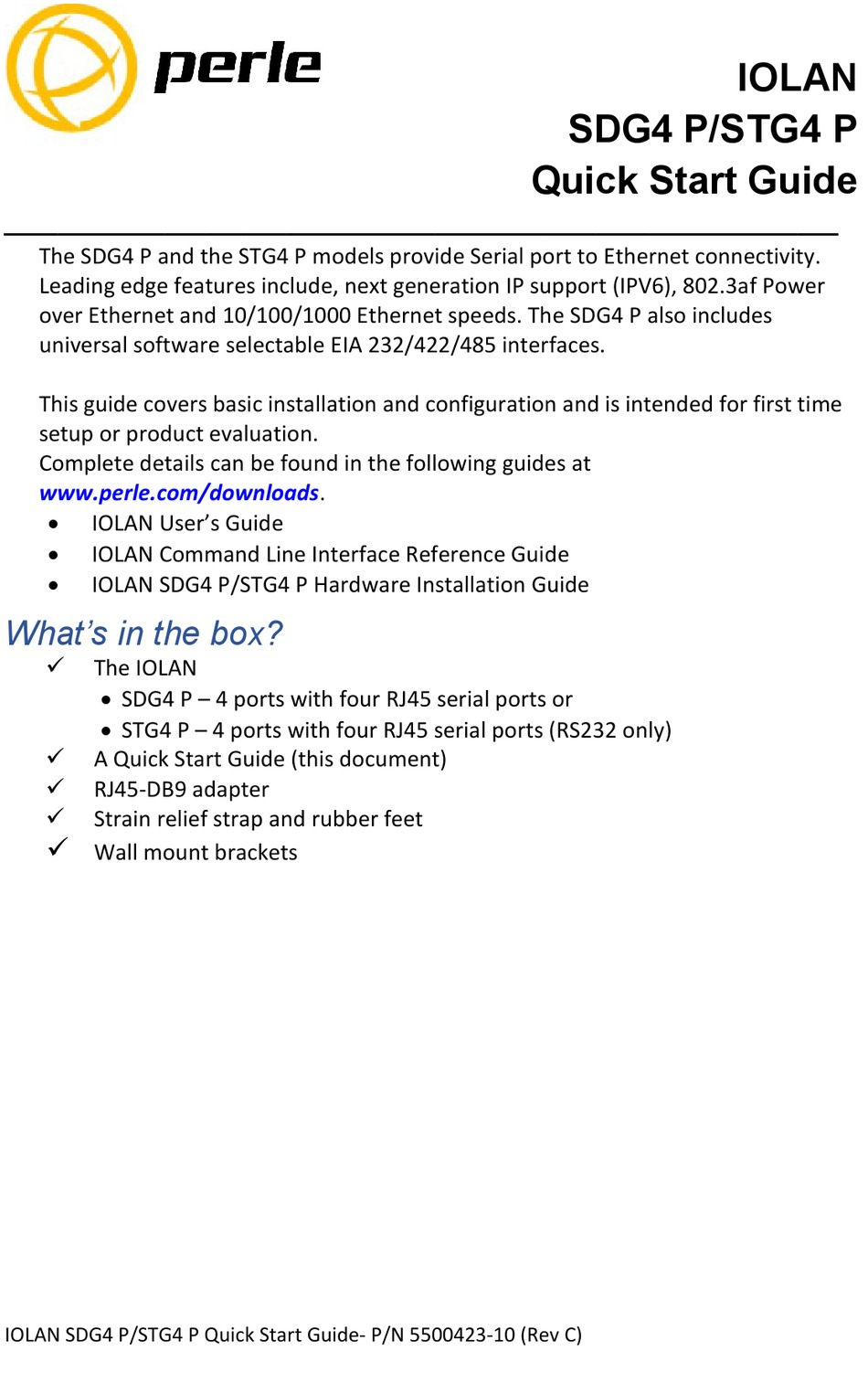

The SDG4 P and the STG4 P models provide Serial port to Ethernet connectivity.
Leading edge features include, next generation IP support (IPV6), 802.3af Power
over Ethernet and 10/100/1000 Ethernet speeds. The SDG4 P also includes
universal software selectable EIA 232/422/485 interfaces.
This guide covers basic installation and configuration and is intended for first time
setup or product evaluation.
Complete details can be found in the following guides at
www.perle.com/downloads.
IOLAN User's Guide
IOLAN Command Line Interface Reference Guide
IOLAN SDG4 P/STG4 P Hardware Installation Guide
What's in the box?
The IOLAN
SDG4 P – 4 ports with four RJ45 serial ports or
STG4 P – 4 ports with four RJ45 serial ports (RS232 only)
A Quick Start Guide (this document)
RJ45-DB9 adapter
Strain relief strap and rubber feet
Wall mount brackets
IOLAN SDG4 P/STG4 P Quick Start Guide- P/N 5500423-10 (Rev C)
SDG4 P/STG4 P
Quick Start Guide
IOLAN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Perle IOLAN SDG4 P
Summary of Contents for Perle IOLAN SDG4 P
- Page 1 STG4 P – 4 ports with four RJ45 serial ports (RS232 only) A Quick Start Guide (this document) RJ45-DB9 adapter Strain relief strap and rubber feet Wall mount brackets IOLAN SDG4 P/STG4 P Quick Start Guide- P/N 5500423-10 (Rev C)
- Page 2 Plug the barrel connector end into the IOLAN, then plug the power adapter into a power source. The Power/Ready LED should show a solid green after the boot sequence. IOLAN SDG4 P/STG4 P Quick Start Guide- P/N 5500423-10 (Rev C)
- Page 3 Power over Ethernet The IOLAN SDG4 P and STG4 P can operate as a Powered Device (PD) under IEEE 802.3af operating with end-span and mid-span power sources (PSE). Power On Cycle When the power is connected to the IOLAN, the Power/Ready LED will cycle through several sequences and will end in a solid green once the unit is fully booted and ready to be configured.
- Page 4 Registering the IOLAN You should register IOLAN online at: www.perle.com/support_services/warranty_reg.asp Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below. www.perle.com/support_services/support_request.shtm IOLAN SDG4 P/STG4 P Quick Start Guide- P/N 5500423-10 (Rev C)
