ENGLISH

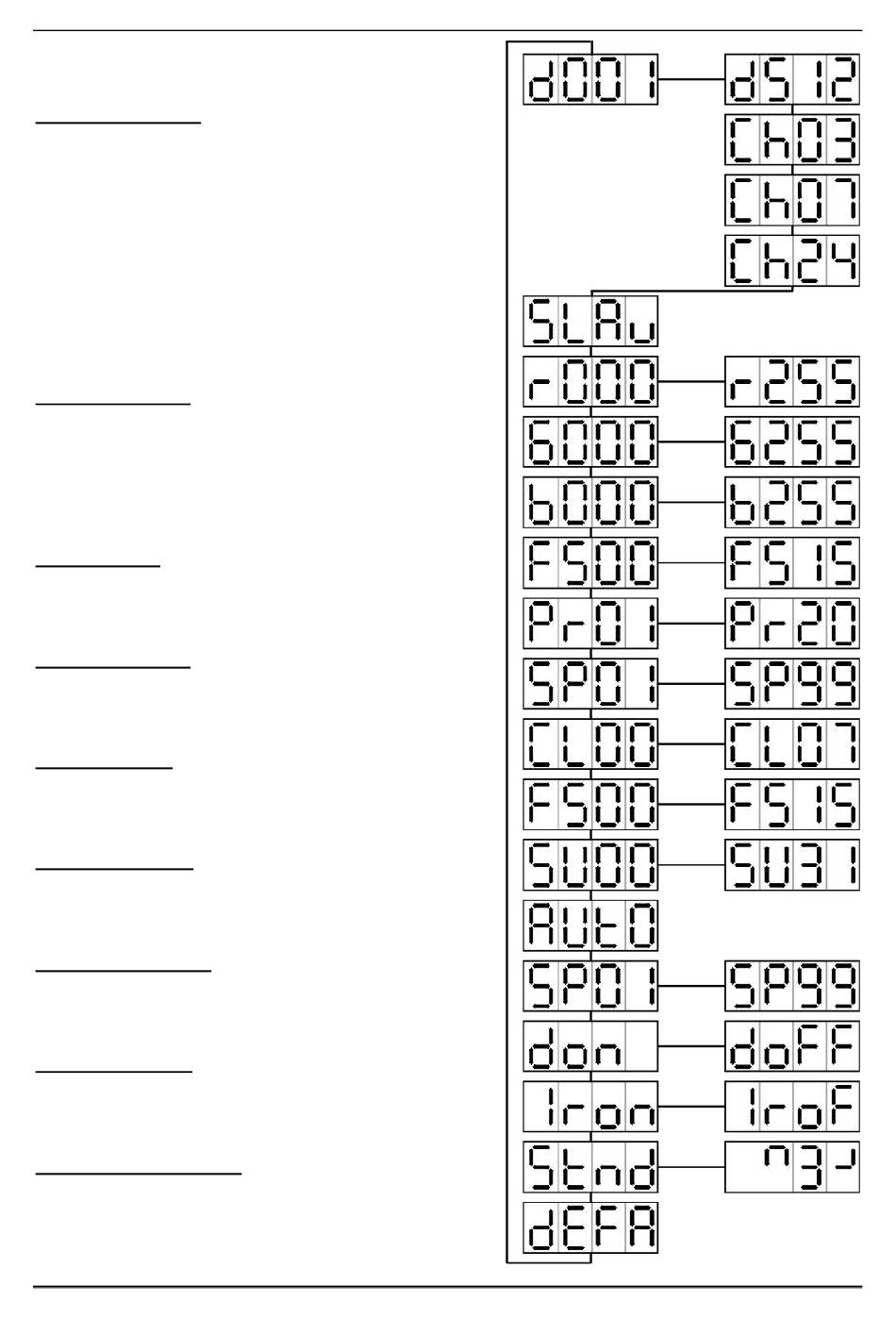

HOW TO SETUP:
DMX/Channel Mode:
The unit has 3 different channel modes, refer to the
DMX-chart to see the differences.
• Press the [MODE] button until [d001...d512] is shown on
the display.
• Press the ▲ or ▼ button to set the desired DMX
address.
• Press the [MODE] button to select the address and go to
channel mode.
• Use ▲ and ▼ buttons to select one of the available
channel modes. (3,7 or 24CH)
• Once the mode is selected, press the [MODE] button to
confirm.
[SLAu] Slave Mode
The first projector in the chain should be set in sound or
program mode , all the other projectors have to be in Slave
mode.
• Press the [MENU] button.
• Press the ▲ or ▼ button until [SLAu] is shown on the
display.
[r000-r255] Red
Use this function to put the fixture in fixed RED color.
Use the ▲ or ▼ buttons for dimming between 0% (000) and
100% (255).
[G000-G255] Green
Use this function to put the fixture in fixed GREEN color.
Use the ▲ or ▼ buttons for dimming between 0% (000) and
100% (255).
[b000-b255] Blue
Use this function to put the fixture in fixed BLUE color.
Use the ▲ or ▼ buttons for dimming between 0% (000) and
100% (255).
[FS00-FS15] Strobe
Use this function for strobe effect.
Use the ▲ or ▼ buttons for adjusting the speed between
slow (FS00) and fast (FS15).
[Pr01-Pr20] Programs
Use this function to choose an internal program.
Use the ▲ or ▼ buttons to select the desired program from
Pr01 to Pr20.
[SP01-SP99] Speed
Use this function to set the speed.
Use the ▲ or ▼ buttons to select the desired speed from
slow (SP01) to fast (SP99).
[CL00-CL07] Fixed colors
Use this function to select one of the seven build in fixed
colors. (CL00-CL07)
Use the ▲ or ▼ buttons to select the desired color.
