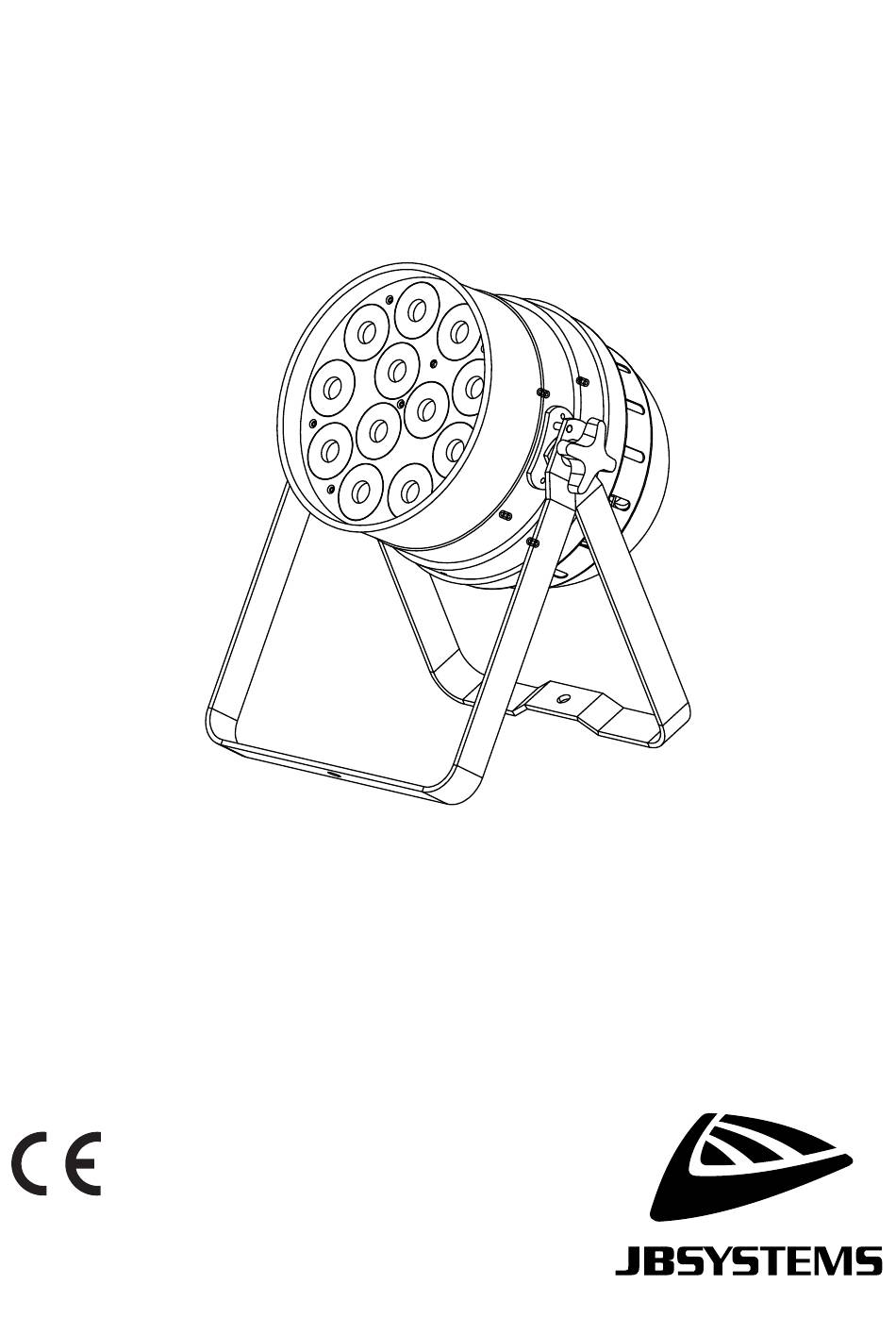

LED PAR12-6in1
ENGLISH
Operation Manual
Other languages can be downloaded from:
WWW.JB-SYSTEMS.EU
Version: 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the LED PAR12-6in1 and is the answer not in the manual?

Questions and answers

Summary of Contents for JB Systems LED PAR12-6in1

  • Page 1 LED PAR12-6in1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.JB-SYSTEMS.EU Version: 1.0...
  • Page 3: Before Use

    ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB SYSTEMS product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •...
  • Page 4 • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS 2/12 LED PAR12-6in1 ®...
  • Page 5 4. POWER output: Seetronic SAC3MPB socket.Use this to connect this output with the mains input of the next LED PAR12-6in1 for easier linking up to 10A. 5. DOUBLE BRACKET: with a knob to fasten the unit in the desired position and a mounting hole to fix a truss clamp.
  • Page 6: Overhead Rigging

    DMX-input is the “master”, the others are the slave units. • Make sure that all units are connected to the mains. • Refer to chapter HOW TO SETUP for more information. • Done! JB SYSTEMS 4/12 LED PAR12-6in1 ®...
  • Page 7: How To Set Up

    • Once the correct option shows on the display, press the ENTER button to save it. Remark: on RDM-compatible controllers this option can also be remotely set. SLAVE MODE Used to set the projector as slave in a master/slave setup. JB SYSTEMS 5/12 LED PAR12-6in1 ®...
  • Page 8 • Press the ENTER button: the display shows the value (000-255) for LIME. (use ▲/▼buttons) • Press the ENTER button: the display shows the value (000-255) for AMBER. (use ▲/▼buttons) • Press the ENTER button: the display shows the value (000-255) for UV. (use ▲/▼buttons) JB SYSTEMS 6/12 LED PAR12-6in1 ®...
  • Page 9 Temperature controlled with the focus on low fan noise (reduced light output when needed). • Once the correct option shows on the display, press the ENTER button to save it. LED TEMP Shows the actual LED temperature. JB SYSTEMS 7/12 LED PAR12-6in1 ®...
  • Page 10 Current setting in the menu Current setting in the menu Auto Lock Menu Current setting in the menu Current setting in the menu No DMX mode FREEZE Current setting in the menu Current setting in the menu JB SYSTEMS 8/12 LED PAR12-6in1 ®...
  • Page 11 ENGLISH USER MANUAL FIRMWARE Used to show the current version of the firmware. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 9/12 LED PAR12-6in1 ®...
  • Page 12 Strobe (slow to fast) 000-007 No Function 008-247 Color Fade (slow to fast) 248-255 Sound Chase LC02 DMX-Mode Select this DMX-mode while using the LEDCON-02 Mk2 easy controller. Channel: Value: Function: 000-255 Red (0-100%) JB SYSTEMS 10/12 LED PAR12-6in1 ®...
  • Page 13: Maintenance

    • Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked: • All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. JB SYSTEMS 11/12 LED PAR12-6in1 ®...
  • Page 14: Specifications

    ±17° Size: 34 x 27 x 22cm. Weight: 3,1 kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 12/12 LED PAR12-6in1 ®...
  • Page 16: Mailing List
