Summary of Contents for JB Systems USB PARTYSET
-
Page 3: Before Use

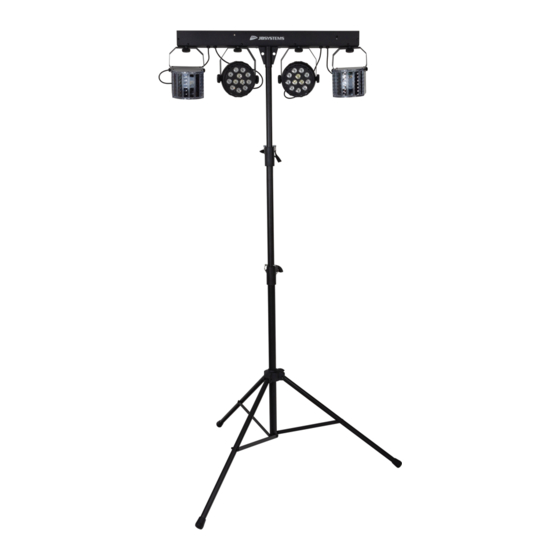

FEATURES • The USB PARTYSET is our most versatile light set for all your home parties. • This standard set includes 2 RGBW Pars with a very narrow beam angle, 2 RGBW Derby’s, a light stand and 2 transport bags. -
Page 4: Safety Instructions
• The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. JB SYSTEMS® 2/12 USB PARTYSET... - Page 5 7. EXTRA USB CONNECTOR: 2 extra projectors from our USB range can be powered and controlled via these extra USB connectors. (JB Systems USB LASER, USB MUSHROOM, USB DERBY, USB PAR…) 8. CONTROL PANEL: Used to select the different functions of the bar, see further to learn how to operate the unit.
-
Page 6: How To Set Up And Control The Unit
1) FULL AUTOMATIC STANDALONE MODE: The effect automatically runs a preprogrammed sequence. Select this mode when only 1 USB Partyset is used (standalone) or when the USB Partyset is placed as the first (master) unit in a chain with several USB Partysets. - Page 7 4) MASTER/SLAVE STANDALONE MODE: When you have several USB PARTYSET and you want them to all work synchronously, you can work in the so called master/slave mode. To do this, just daisy-chain all the bars and make the settings of the desired automatic or sound controlled program in the first bar of the chain (see description above).
- Page 8 • 34 CHANNEL MODE: control over the automatic and sound modes + full manual control over each individual projector. • Connect the DMX input of the USB PARTYSET to the DMX output of the previous unit in the chain or directly to the DMX-output of your controller.
- Page 9 AP13 / SP13 182-195 AP14 / SP14 196-209 AP15 / SP15 210-223 AP16 / SP16 224-237 AP17 / SP17 238-255 AP18 / SP18 000-255 Auto Program Speed Slow to Fast Full ON General Dimmer 001-255 Dimmer JB SYSTEMS® 7/12 USB PARTYSET...
- Page 10 Ch 1 between 210 and 255 = Sound Mode 140-153 AP11 / PS11 154-167 AP12 / SP12 168-181 AP13 / SP13 182-195 AP14 / SP14 196-209 AP15 / SP15 210-223 AP16 / SP16 224-237 AP17 / SP17 238-255 AP18 / SP18 JB SYSTEMS® 8/12 USB PARTYSET...
- Page 11 168-181 AP13 / SP13 182-195 AP14 / SP14 196-209 AP15 / SP15 210-223 AP16 / SP16 224-237 AP17 / SP17 238-255 AP18 / SP18 000-255 Auto Program Speed Slow to Fast 000-255 Dimmer General Dimmer JB SYSTEMS® 9/12 USB PARTYSET...
- Page 12 0% → 100% 000-255 Blue 000-255 White 000-015 No Strobe Slow to Fast 016-255 Strobe Speed Stop 001-127 Clockwise rotation Motor Rotation (slow to fast) Stop 129-255 Anticlockwise rotation Channel for projector / effect 5 (Top) JB SYSTEMS® 10/12 USB PARTYSET...
- Page 13 [YES] = do the factory reset. (firmware version will appear after pressing enter) • [ no] = don’t do the factory reset and return to the menu. ▪ Press the [ENTER] button to confirm your choice JB SYSTEMS® 11/12 USB PARTYSET...
-
Page 14: Maintenance
= 2.05m, folded = 79 cm Weight: 6 kg (full set with stand) Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS® 12/12 USB PARTYSET...
