Summary of Contents for JB Systems POWERBALL WHITE

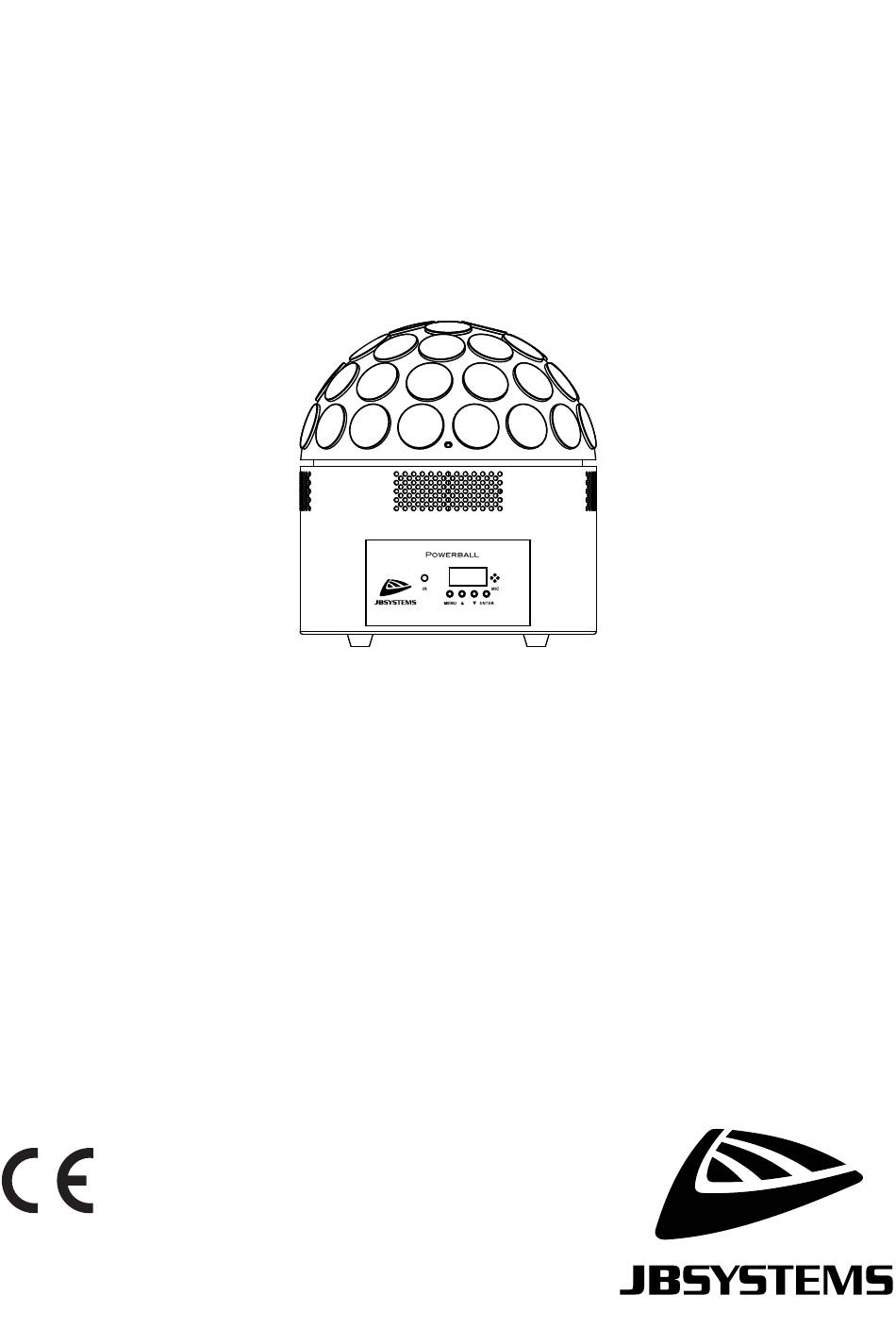

- Page 1 Powerball White ENGLISH Operation Manual Other languages can be downloaded from: WWW.JB-SYSTEMS.EU Version: 1.0...
-
Page 2: Before Use
USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. This device was designed to produce decorative effect lighting and is used in light show systems. -
Page 3: Safety Instructions
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately. • The housing and the lenses must be replaced if they are visibly damaged. • Please use the original packing when the device is to be transported. JB SYSTEMS® 2/10 POWERBALL WHITE... -
Page 4: Overhead Rigging
• Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails. JB SYSTEMS® 3/10 POWERBALL WHITE... -
Page 5: How To Set Up And Control The Unit
• Press the [ENTER] button again if you want to set the sound sensitivity of the internal microphone: • Use the [UP] and [DOWN] buttons to set the sound sensitivity of the internal microphone [u.7] to [u.100] • Press the [ENTER] button to confirm. 3) MASTER/SLAVE STANDALONE MODE: JB SYSTEMS® 4/10 POWERBALL WHITE... - Page 6 Select the rotation speed and use the – and + buttons to modify the setting 5) CONTROLLED VIA DMX: The POWERBALL can be controlled by any standard DMX-controller in 5 different DMX-modes via 1, 3, 4, 8 or 10 channels JB SYSTEMS® 5/10 POWERBALL WHITE...
- Page 7 000-005 Blackout No Rotation 006-036 Cold White 037-068 Warm White Slow rotation 069-100 All White 101-164 Auto Program 165-196 Sound Program No rotation 197-228 Sound Program Slow rotation 229-255 Sound Program Medium rotation JB SYSTEMS® 6/10 POWERBALL WHITE...
- Page 8 Sound control for the selected program via channel 1 No rotation 001-127 Clockwise rotation Motor Control No rotation 129-255 Anticlockwise rotation 000-005 No strobe 006-127 Random strobe 128-250 Normal Strobe Speed Standard strobe (slow to fast) 251-255 Sound Strobe JB SYSTEMS® 7/10 POWERBALL WHITE...
- Page 9 Sound prog 03 181-205 Sound prog 04 206-230 Sound prog 05 231-255 000-255 Program Speed Speed control for the programs of dmx channel 6 000-255 Sound Sensitivity Used for the sound controlled color programs & strobe JB SYSTEMS® 8/10 POWERBALL WHITE...
- Page 10 Use the [UP / DOWN] button to confirm if you want to do the reset or not • YES = the reset will be executed as soon as you press the [ENTER] button. ▪ Press the [ENTER] button. JB SYSTEMS® 9/10 POWERBALL WHITE...
-
Page 11: Maintenance
10°C to 40°C Dimensions: 242 x 242 x 275mm Weight: 4.65kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS® 10/10 POWERBALL WHITE... - Page 12 2024...
