• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering
from epilepsy.

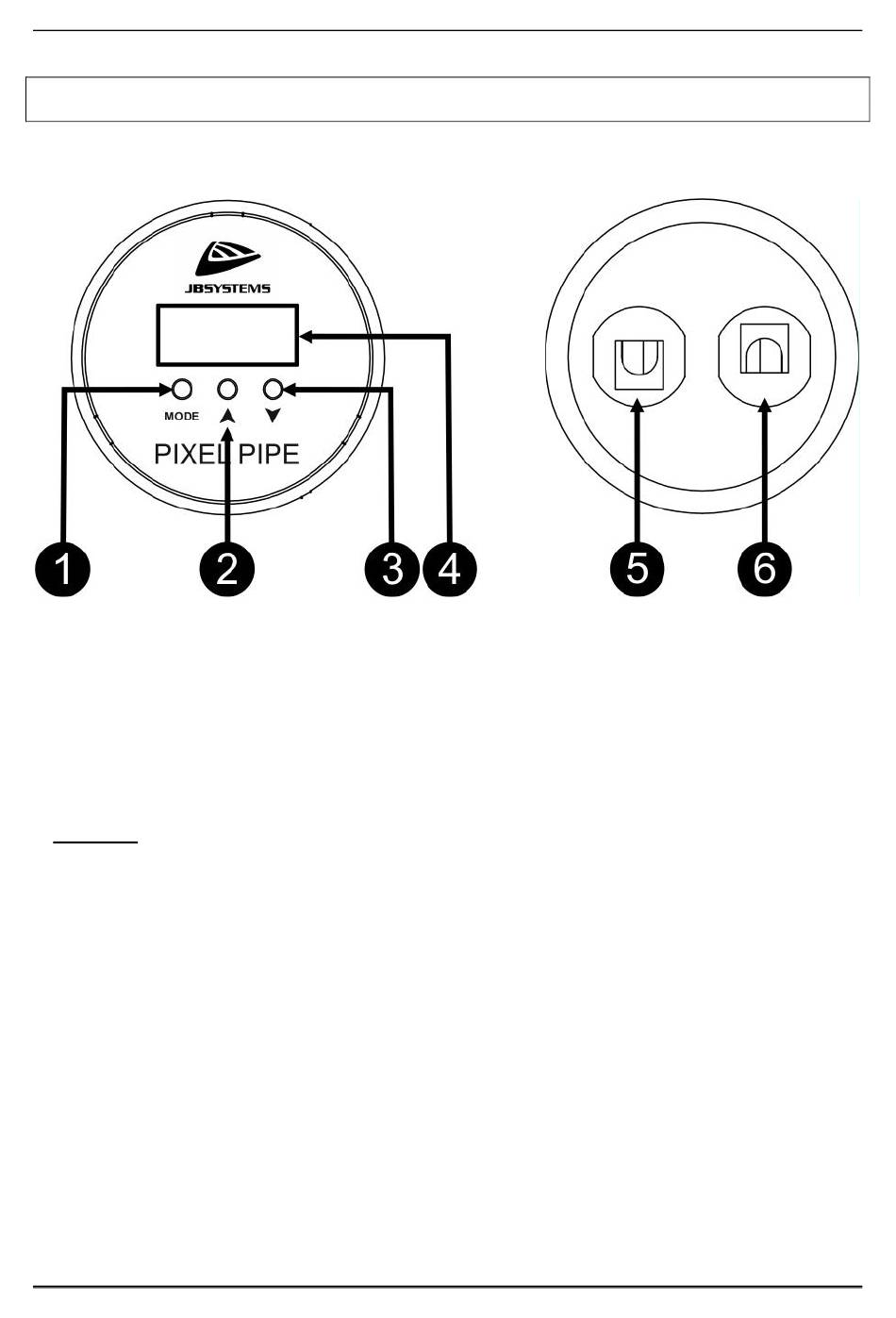

DESCRIPTION:
1. [MODE] button: used to browse the different functions in the menu
2. ▲ button: to go up in the menu and/or increase the values shown on the display.
3. ▼ button: to go down in the menu and/or lower the values shown on the display.
4. DISPLAY shows the various menus and the selected functions.
5. Mains input/output: cable with Male and Female IEC sockets, connect the supplied mains cable here.
Connect the female output to the next fixture (max. 6A)
6. DMX input/output: cable with Male and Female 3pin XLR-connectors used to connect the tube with the
previous or next unit in the DMX chain.

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
• The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
• Before rigging, make sure the installation can hold a minimum point load of 10times the device's weight.
• Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.
