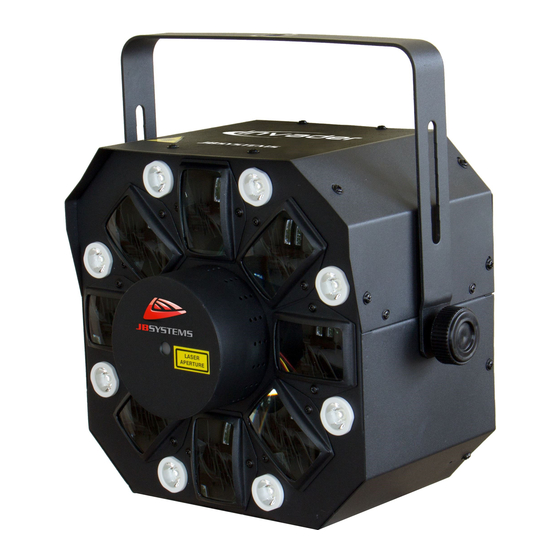

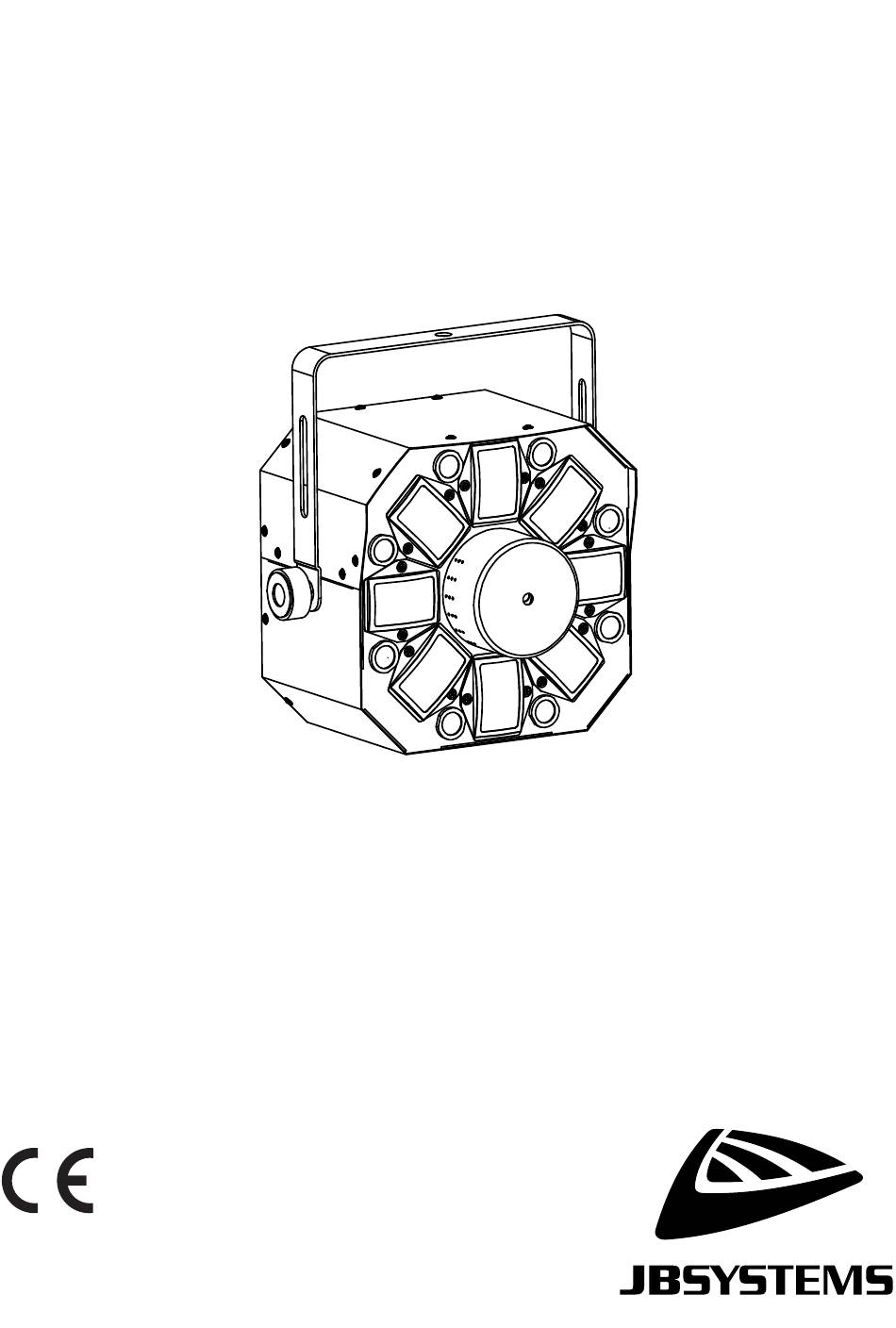

- Page 1 INVADER ENGLISH Operation Manual Other languages can be downloaded from: WWW.JB-SYSTEMS.EU Version: 2.0...
-
Page 3: Before Use
ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB Systems product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •... -
Page 4: Safety Instructions
• Please use the original packing when the device is to be transported. • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS® 2/11 INVADER... -
Page 5: Laser Safety Instructions
This valuable document can be obtained from www.lia.org Please note that JB SYSTEMS cannot be made liable for damages caused by incorrect installations and unskilled operation! DESCRIPTION: JB SYSTEMS®... - Page 6 DMX function with all connected units! No extra settings to be made in the setup menu, just follow the procedure in the user manual supplied with the WTR-DMX ® DONGLE from BRITEQ . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: 4645) JB SYSTEMS® 4/11 INVADER...
-
Page 7: Overhead Rigging
CAUTION EYE DAMAGE: Always position the laser in a way that prevents the audience from looking directly into the laser beams. The installation should assure that the beam will not strike the audience. HOW TO SET UP AND CONTROL THE UNIT JB SYSTEMS® 5/11 INVADER... - Page 8 You can connect several units together. Please put the first unit of the chain in “Music or automatic mode” and all other units in “Slave mode” (display shows “SLA” to make them all work in perfect sync! JB SYSTEMS® 6/11...
- Page 9 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! Each effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. JB SYSTEMS® 7/11 INVADER...
- Page 10 CH1 Mode 115-129 SOUND 0 130-144 SOUND 1 145-159 SOUND 2 160-174 SOUND 3 175-189 SOUND 4 190-204 SOUND 5 205-220 SOUND 6 221-255 DMX MODE 000-009 Blackout 010-014 CH2 RGBWA 015-019 Green 020-024 Blue 025-029 Amber JB SYSTEMS® 8/11 INVADER...
- Page 11 255-255 Sound-activated strobe mode 000-009 Blackout 010-019 Pattern 1 (slow->fast) 020-029 Pattern 2 (slow->fast) 030-039 Pattern 3 (slow->fast) CH5 White 040-049 Pattern 4 (slow->fast) 050-059 Pattern 5 (slow->fast) 060-069 Pattern 6 (slow->fast) 070-079 Pattern 7 (slow->fast) JB SYSTEMS® 9/11 INVADER...
-
Page 12: Maintenance
• Always dry the parts carefully. • Clean the external optics at least once every 30 days. • Clean the internal optics at least every 90 days. Attention: We strongly recommend internal cleaning to be carried out by qualified personnel! JB SYSTEMS® 10/11 INVADER... -
Page 13: Specifications
Working temperature: 10°C to 40°C Laser Safety Standard: EN 60825-1:2014 Size: 240x220x110mm Weight: 4.2kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS® 11/11 INVADER... -
