ENGLISH
ELECTRICAL INSTALLATION
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
• Insert the mains cable. The unit starts working immediately in the last selected mode.
• Refer to chapter HOW TO SETUP to learn how to switch between the different working modes.

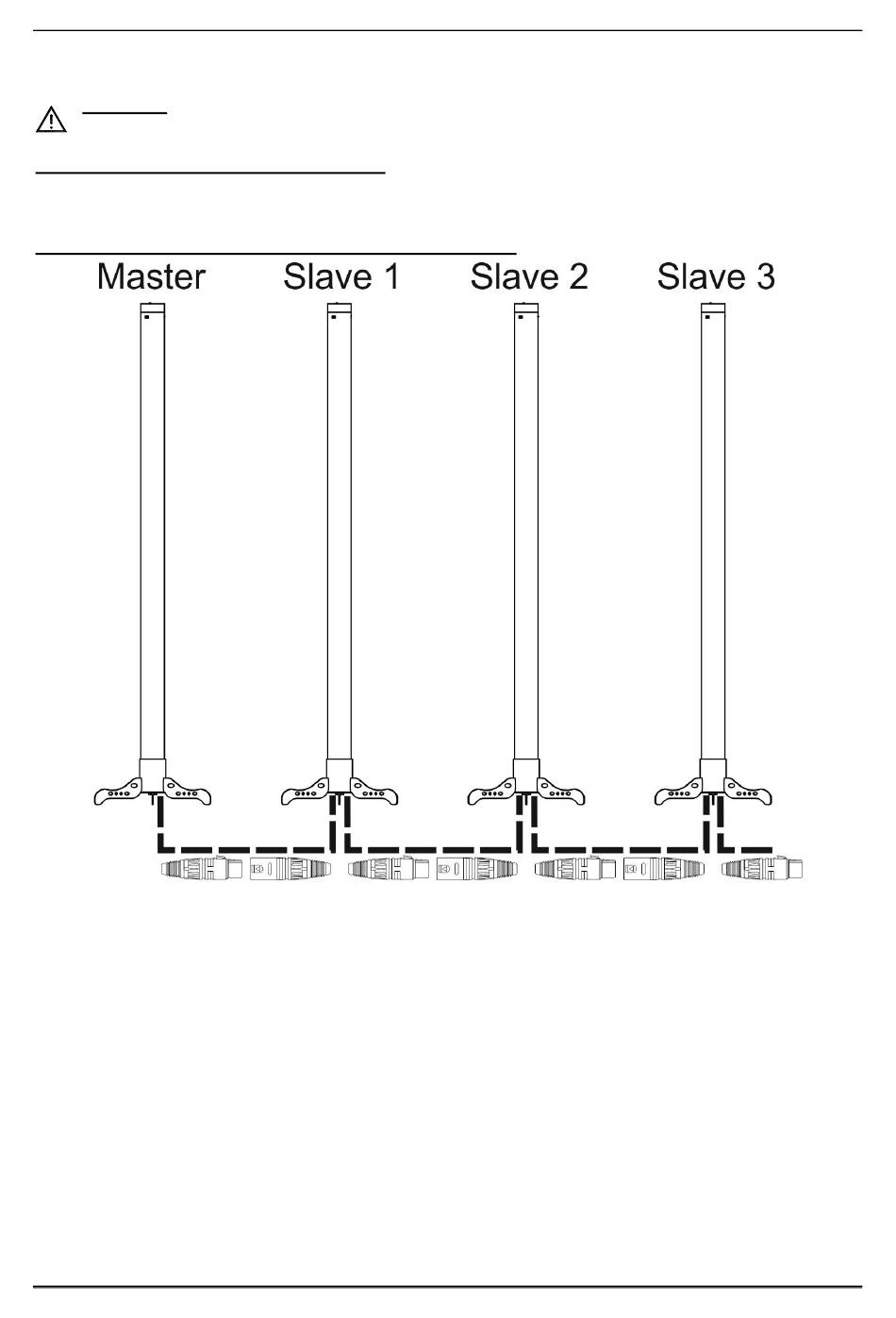

Electrical installation for two or more units in master/slave:
• Connect several units together using good quality balanced microphone cables. The unit that has no
cable connected to its DMX-input is the "master", the others are the slave units.
• Make sure that all units are connected to the mains.
• Refer to chapter HOW TO SETUP for more information.
• Done!
JB SYSTEMS
®
4/11
USER MANUAL
PIXEL PIPE
