4. Four - #10-24 x 3/8" Screws (UZSCREWW) and 4 - #10-24 Weld nuts (UZWNUTA) will be
used for each Tether bracket. Install all screws in Tether brackets in approximate locations
though do not tighten so that brackets can slide along grooves. Location of brackets will be

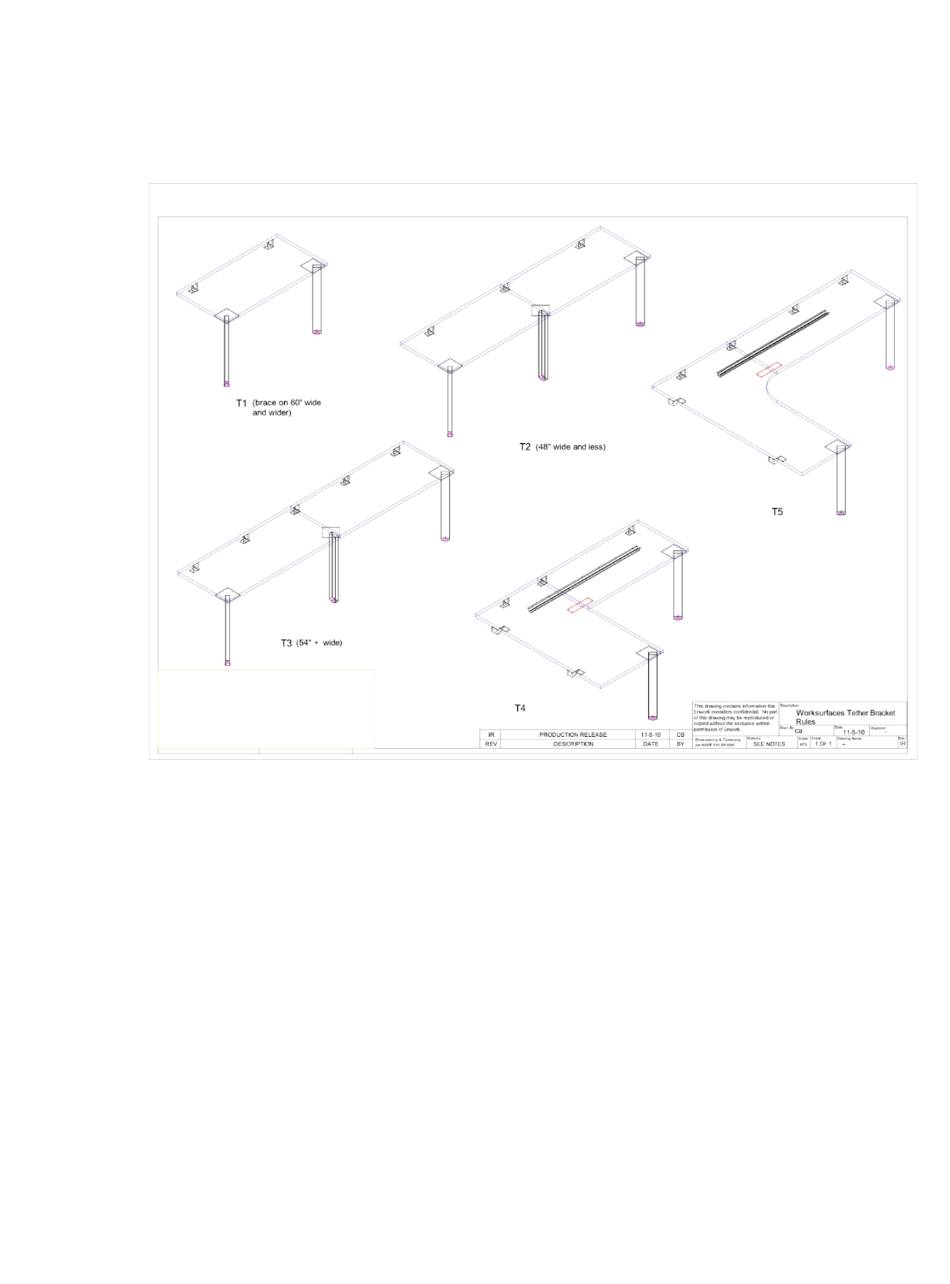

determined by the following rules:
5. Put worksurfaces into place and attach to tether brackets or peds (if applicable). NOTE:
worksurface gap to frame can be one of three dimensions depending on what was specified
by the dealer:
a. Tight to frame – these worksurfaces have a "C" in them (e.g. S2448ACN)
b. ½" gap to frame – these worksurfaces have a "D" in them (e.g. S2448ADN)
c. 1.1" gap to frame – these worksurfaces have a "V" in them (e.g. S2448AVN)
6. Add support plates where applicable.
7. End Panel and O-Leg supports are described earlier in this manual.
Topper Screen
1.
Insert acrylic Topper Screen and steel Topper Spacer into top slot of Frame. Be careful to put
Topper Spacer on side of top cap slot where holes are present. To insure a more uniform look of
the Topper Screens have all installing holes on same side. If these holes are on different sides,
removing those top caps and turning them around will solve this situation.
