Items Needed

Included

• Command Center phone with phone line cable

• Distribution Module

• System wiring (pigtail cables, power cord, ethernet

cable for programming Distribution Module)

• Cabinet (wall mount) or Stand (desk mount)

Step 1

Mount the Distribution Module and Power Supply with battery back up in an appropriate location,

installing the cabinet for wall mount units or the stand for desk mount units accordingly. Then remove

the knock outs (if applicable). The recommended location to mount the Distribution Module and Power

Supply is in a network closet or machine room. Mount the Command Center according to the owner's

specifications.

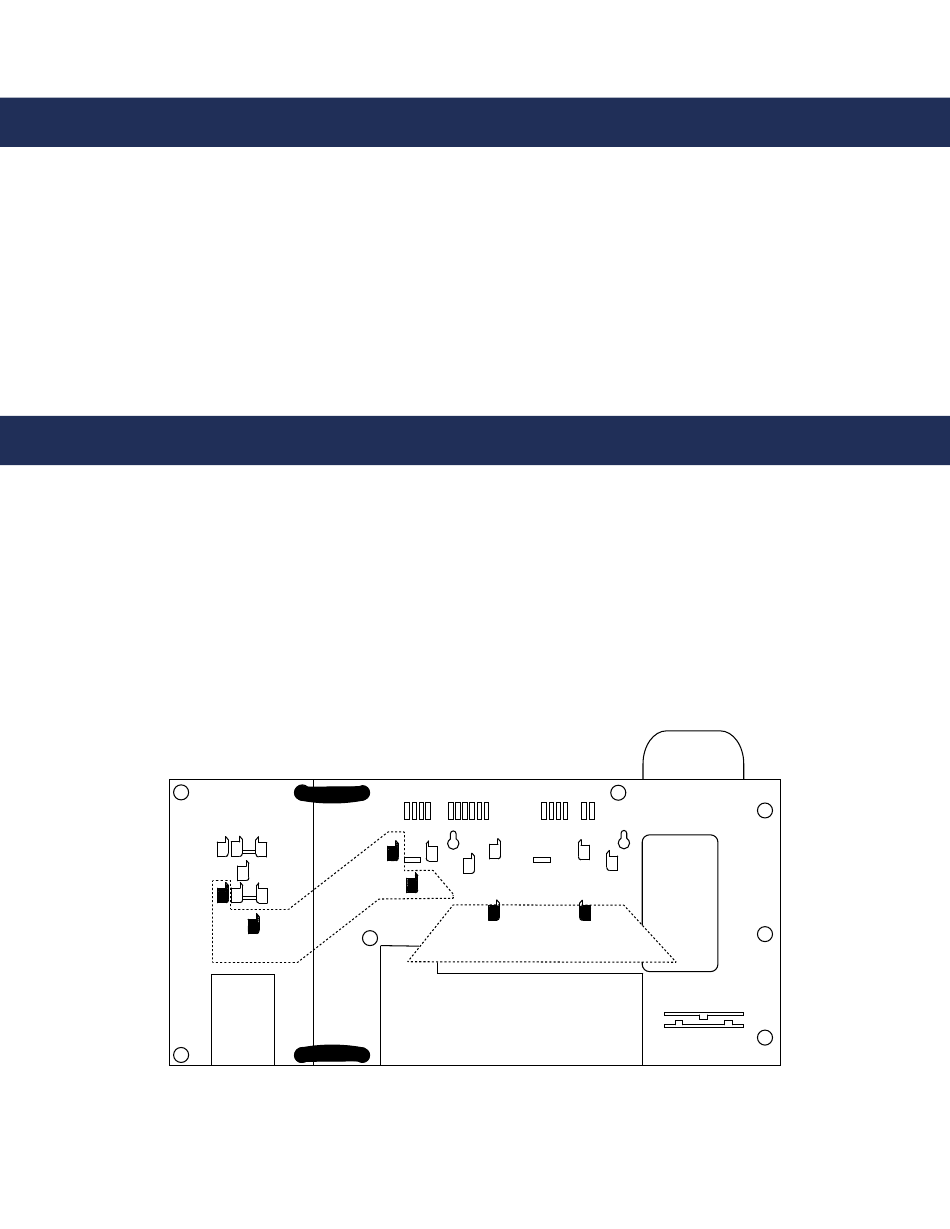

Follow the diagram below for attaching the extender and foot stand to the back of the Command Center

phone as needed.

Step 2

For 1-48 zone systems, remove the screws on the back of the Distribution Module and remove the

cover to expose the internal RJ45 interface connections.

Not Included

• Router

• Network Switch (POE+ if using with POE phones)

• Windows Laptop

• Analog phone for testing

• Multimeter
