Items Needed

Included
• Command Center Phone (will be mounted in a cabinet
or include a desk mount stand for desk mount)
• Distribution Module
• System wiring (pigtail cables, power cord, phone
line cord, and Ethernet cable)
• 1/8" Hex Allen Wrench (cabinet mount only)
Command Center Options:
Cabinet Mount Desk Mount

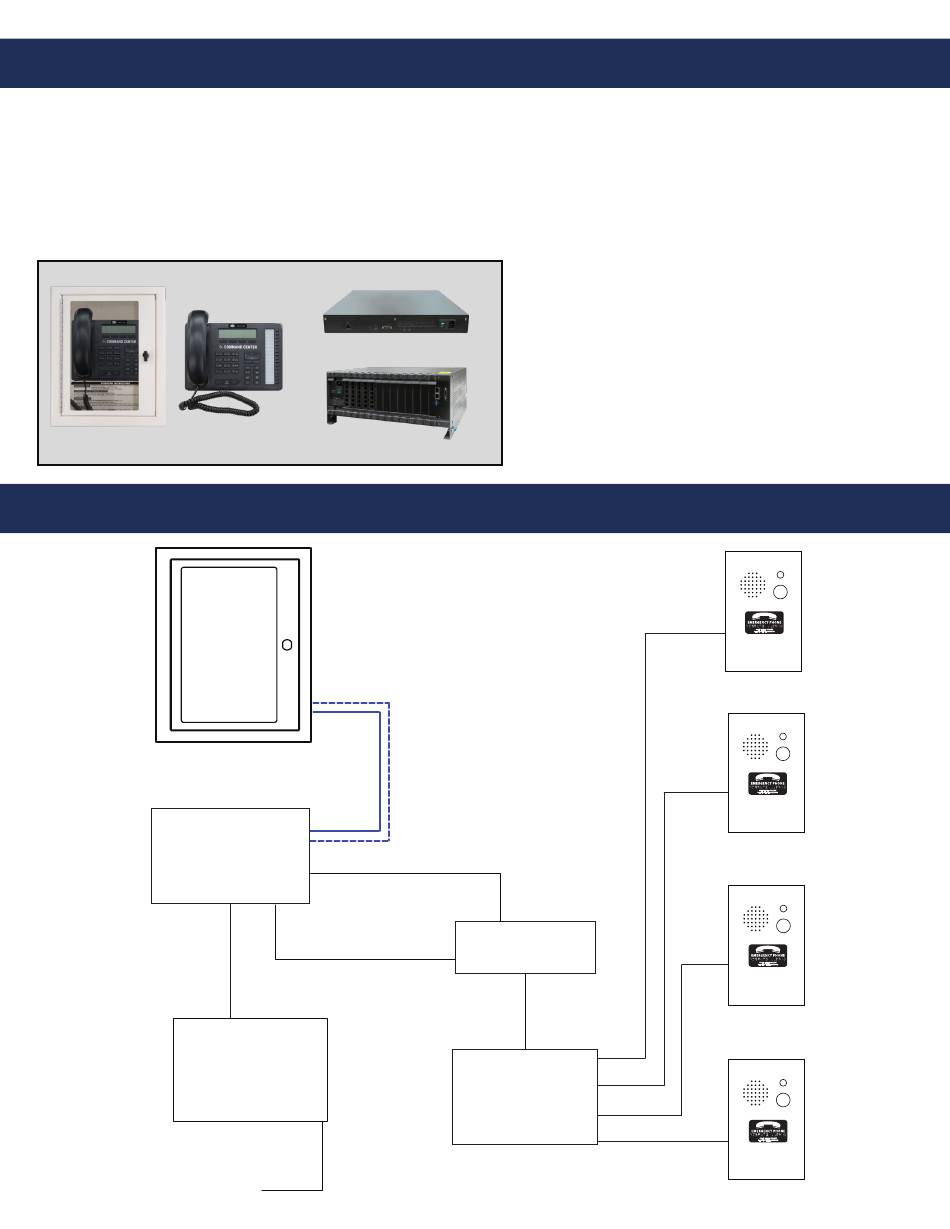

Typical System Layout

Command
Center
Distribution
Module
Power Supply
120 Volt Power Connection to
Incoming 120 Volt Power
Distribution Module Options:
10-48 Zone Systems
64-128 Zone Systems
Ethernet from CPU
Card to Router
with UPS
Not Included
• Network Switch (POE+ recommended)
• Router
• Windows laptop
• Minimum 22 or 24 AWG twisted, shielded cable for
wiring Command Center to Distribution Module
(unless ordered as an IP Command Center Phone)
• 120vac power
• Multimeter
• Analog phone (recommended for troubleshooting)
• Analog or digital phone line (only if the system needs
call out abilities)
• Small Phillips screwdriver
• Mounting hardware
• Power supply with battery backup (sold separately,
IP Command Center
RATH® model RP7700104 or RP7701500)
• 2100 Series IP Emergency Phones (sold separately)
Typical System Layout
Connection from
WAN Port on
VoIP Card to
Router
Router
POE Switch
Each Phone Plugged
into POE port
