Rath VoIP Command Center Installation & Operation Manual page 6

Option 2
64-128 Zone VoIP System:

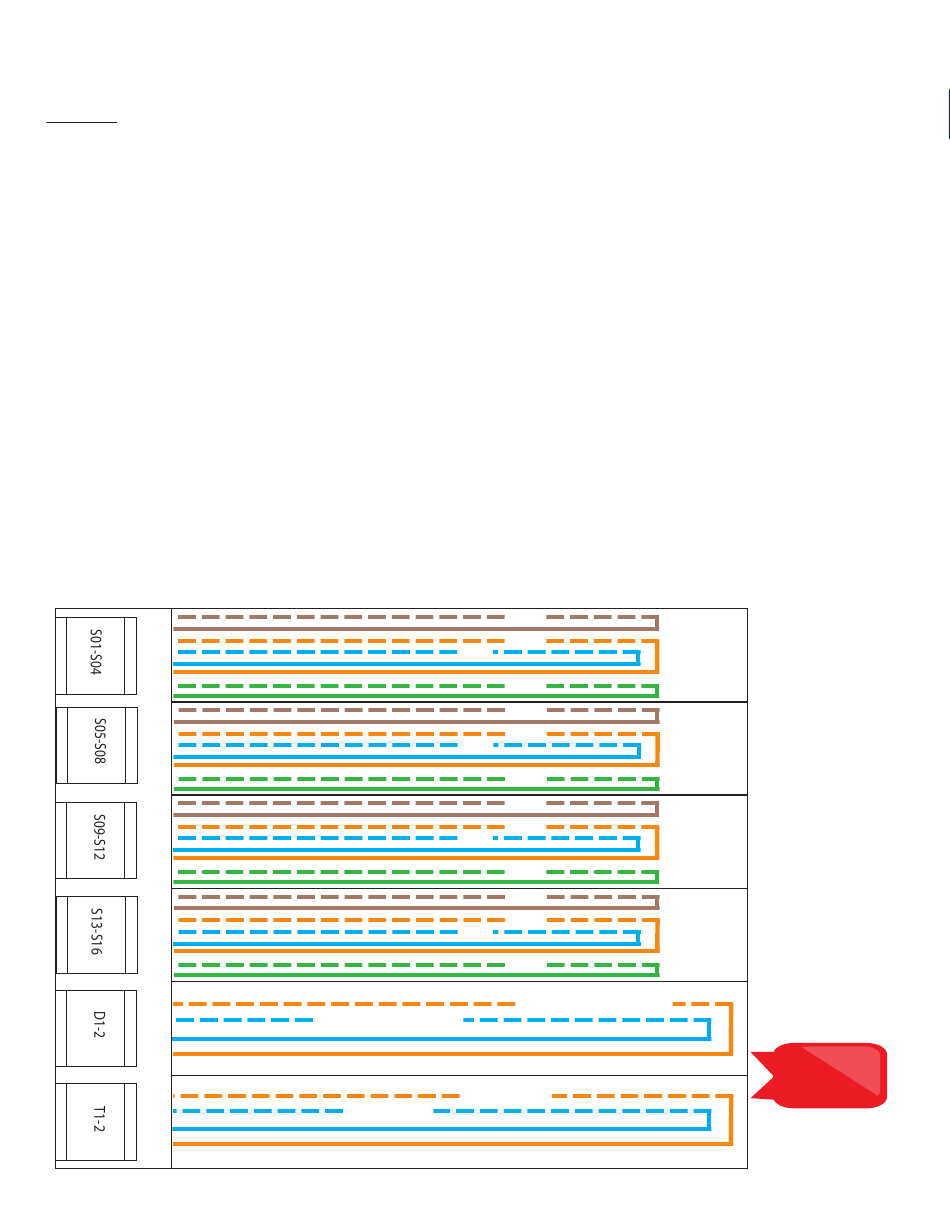

• Plug the supplied RJ45 pigtail cables into the RJ45 interface connections following the wiring chart
and pin-out color scheme below
• Refer to the top of the cards to see what type of RJ45 interface and number of extensions
• The same pin-out color scheme should be used for the primary card and for all additional cards.
The system uses T568-A for pin-out wiring
• On top of each card there is a table indicating RJ45 interface usage:
S_ are the ports used for connecting hardwired Call Boxes
TD(1-2)(3-4) with a dot under the D is the port used for connecting Command Center phone(s)
TD(1-2)(3-4) with a dot under the T is the port used for outside Telco lines
• The first card installed will always be:
• Interface 1 (S01-S04): connection for 4 hardwired emergency phones
• Interface 2 (S05-S08): connection for 4 hardwired emergency phones
• Interface 3 (S09-S12): connection for 4 hardwired emergency phones
• Interface 4 (S13-S16): connection for 4 hardwired emergency phones
• Interface 5 (D1-2): connection for up to 2 Command Center phones
• Interface 6 (T1-2): connection for up to 2 outside Telco lines
• Connect the WAN port on the control card to the network components via an ethernet cable
2001
2005
2009
2013
COMMAND CENTER 1
TELCO LINE 2
TELCO LINE 1
2004
PHONE 4
2002
PHONE 2
PHONE 1
2003
PHONE 3
2008
PHONE 8
2006
PHONE 6
PHONE 5
2007
PHONE 7
2012
PHONE 12
2010
PHONE 10
PHONE 9
2011
PHONE 11
2016
PHONE 16
2014
PHONE 14
PHONE 13
2015
PHONE 15
COMMAND CENTER 2
Note: Do not use
the green and
brown pairs
