Rath VoIP Command Center Installation & Operation Manual page 8

f. Click on Properties
g. Double click on Internet Protocol Version 4
h. Click Use the Following IP Address
i. Change IP to the default IP address range of the Distribution Module (recommend using
192.168.1.200)
j. Change Subnet Mask (default is 255.255.255.0)
3. Turn off the wireless card on the laptop (if applicable)
4. Log in to the Distribution Module
a. Enter 192.168.1.202 into the web browser (Google Chrome is recommended)
b. Log in as System Engineer and enter Password: Rath7284!
5. Enter VoIP information
a. Navigate to VoIP Configuration in left side menu
b. Click the drop-down arrow, more menu options should appear
c. Click VoIP Port Parameters

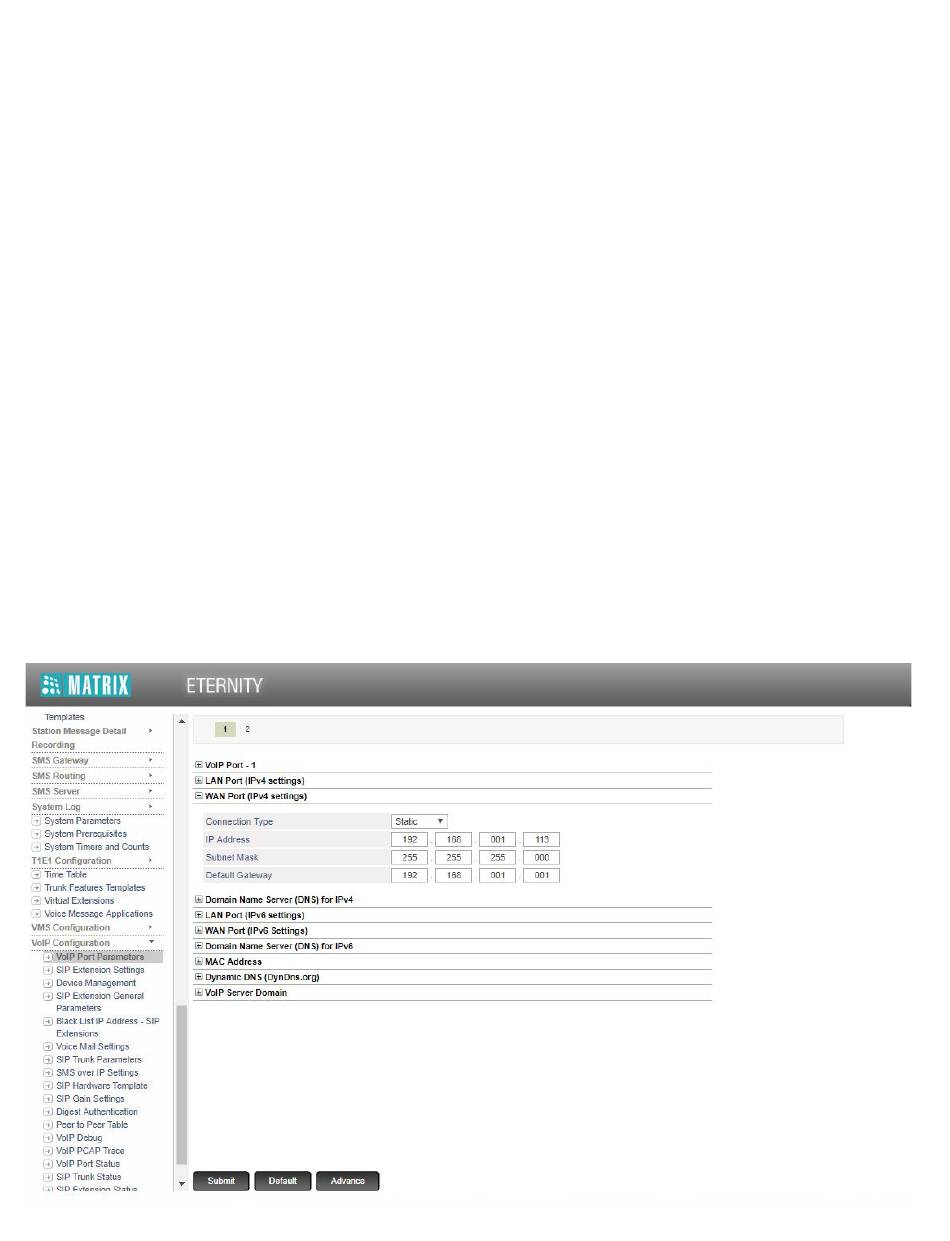

6. Enter Server Information
a. Navigate to WAN Port (IPV4 Settings)
b. Enter the assigned network IP address into the IP Address line
c. Enter the Subnet Mask of your network into the Subnet Mask line
d. Enter the Router IP address into the Default Gateway line
7. Click Submit
Page 8
