8. Setting up SIP Extensions

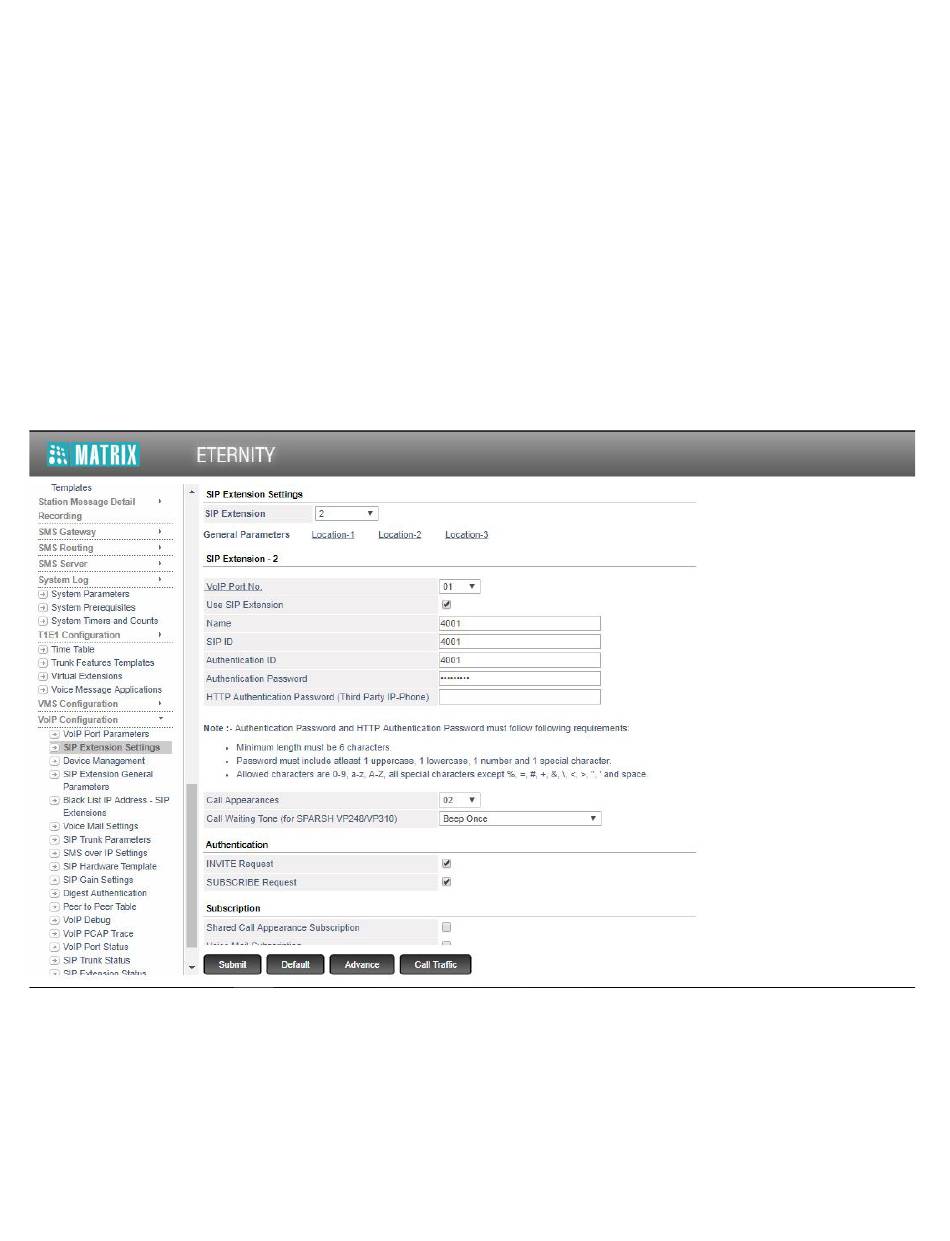

a. Click SIP Extension Settings
b. VOIP Port 1 should be selected
c. Enter the desired name in the Name line
d. Enter the extension in the SIP ID line
i. This must be a number above 4000 to avoid issues within the system
ii. Example:
1. Extension 1 = 4001
2. Extension 2 = 4002
e. Enter the desired password in the Password line
i. Be sure to follow the password requirements displayed on the screen
f. Click Submit
