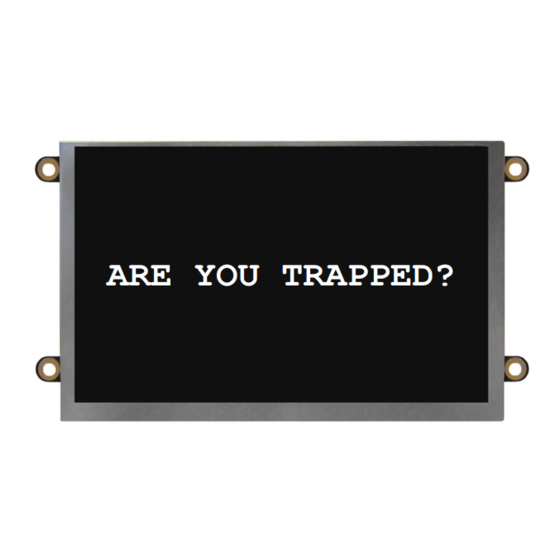

- Page 1 800-451-1460 800-527-9156 www.rathmicrotech.com www.avire-global.com/us Installation & Operations Manual ARE YOU TRAPPED? SmartView Visual Communication System N56W24720 N. Corporate Circle Sussex, WI 53089 RP850001SV Made in the USA Ver. 4 800-451-1460 www.rathmicrotech.com 3 Year Warranty 06/20...
- Page 2 800-451-1460 800-527-9156 www.rathmicrotech.com www.avire-global.com/us Thank you for purchasing the SmartView Visual Communication System. We are the largest Emergency Communication Manufacturer in North America and have been in business for over 35 years. We take great pride in our products, service, and support. Our Emergency Products are of the highest quality.
- Page 3 1. Plug the provided flash drive into your laptop or computer. 2. Open the SmartView link located on the flash drive. Note: If you have lost the provided flash drive contact RATH ® 3. Enter one of the IDs associated with your job.
- Page 4 When powering via PoE battery backup can be done remotely. RP7700104S (Power Supply/UPS/Battery) (Power Supply/UPS/ Battery) Elevator Car Elevator Car RATH Components SmartView Components Single Pair Single Pair Wire to pins 1 and 2 of the RJ45 connector. Wire to pins 1 and 2 of the RJ45 connector 2100-SVCB Extends power and communication up to 1,600 feet.
- Page 5 Wiring Example: Connections for SmartView Display and Camera SmartView To SmartView Camera Camera SmartView Display To Network Switch Ethernet Extender Ethernet YES NO SmartView Controller (12v, 1A or 24v 0.5A) To SmartView Display HDMI Display Power Power To SmartView Display Page 5...
- Page 6 Installation with CE Elite PI Displays 1. Follow the previous installation steps, omitting steps involving the SmartView Display. 2. Mount the CE Elite PI Display in the elevator. 3. Follow the wiring schematic below for connecting the SmartView Controller with a CE Elite PI Display via the RS485/422 connectors.
- Page 7 LAN Setup To ensure operation if the external internet is compromised, verify the Head-End and Controllers wire back to the same network switch or series of network switches. See wiring example below. Machine Room Network Switch Floor 4 Elevator 6 Elevator 3 Floor 3 Elevator 2...
- Page 8 Appendix B Example ID Table: SmartView ID Location/Description 10020 Elevator 1 10021 Elevator 2 ID Table: SmartView ID Location/Description Page 8...
