8.1.19 Mounting the Antifoam Sensor

Procedure
07 February 2019

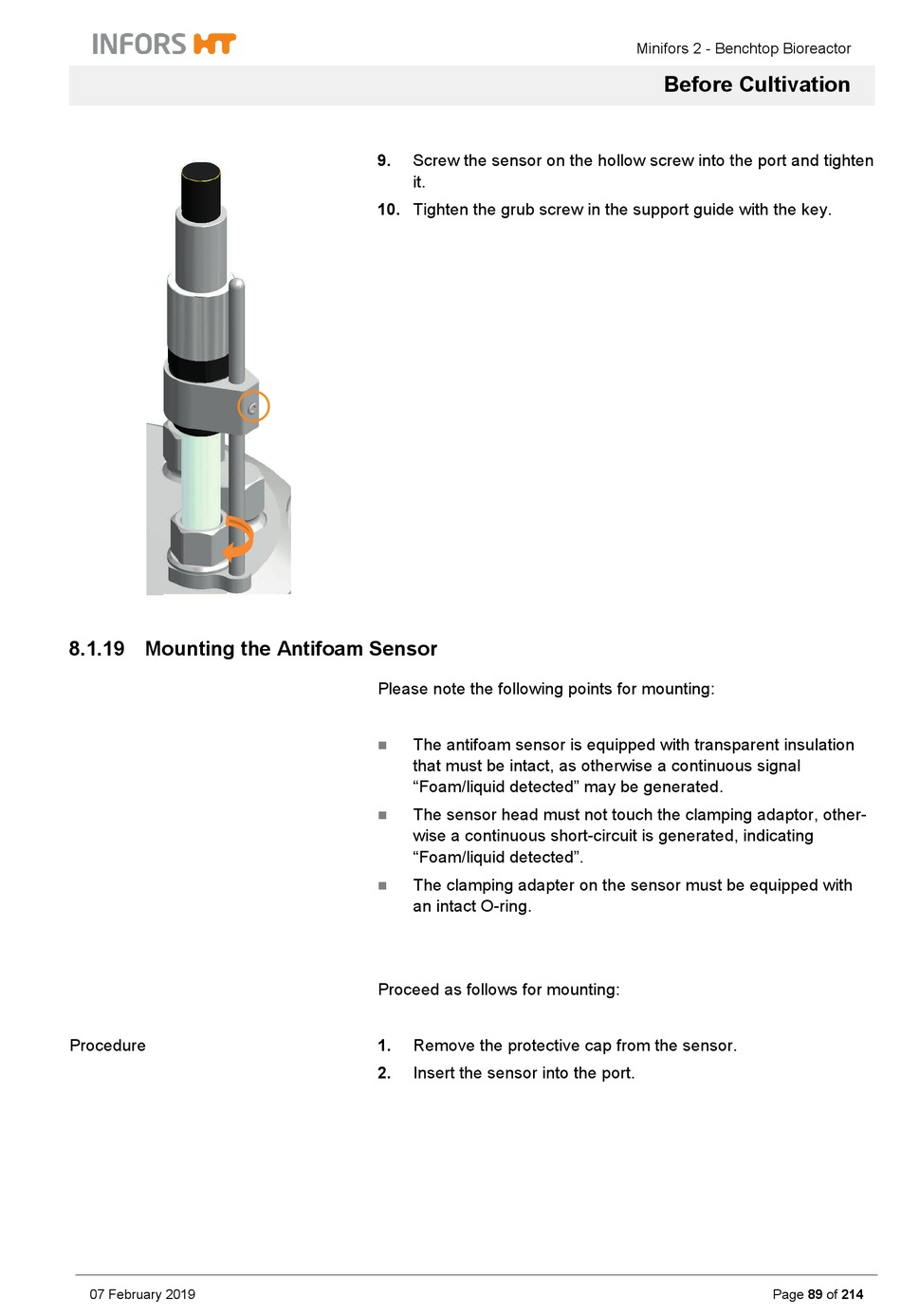

9. Screw the sensor on the hollow screw into the port and tighten
it.
10. Tighten the grub screw in the support guide with the key.
Please note the following points for mounting:
The antifoam sensor is equipped with transparent insulation

that must be intact, as otherwise a continuous signal
"Foam/liquid detected" may be generated.
The sensor head must not touch the clamping adaptor, other-

wise a continuous short-circuit is generated, indicating
"Foam/liquid detected".
The clamping adapter on the sensor must be equipped with

an intact O-ring.
Proceed as follows for mounting:
1. Remove the protective cap from the sensor.
2. Insert the sensor into the port.
Minifors 2 - Benchtop Bioreactor
Before Cultivation
Page 89 of 214
