Incoming acceptance and product identification
16
Order code for "Housing" option J "GT20 two-chamber, remote, aluminum coated"
2 3
1
Order code:
Ser. no.:
Ext. ord. cd.:
Size:
Materials:
Gasket:
Tm:
16 15

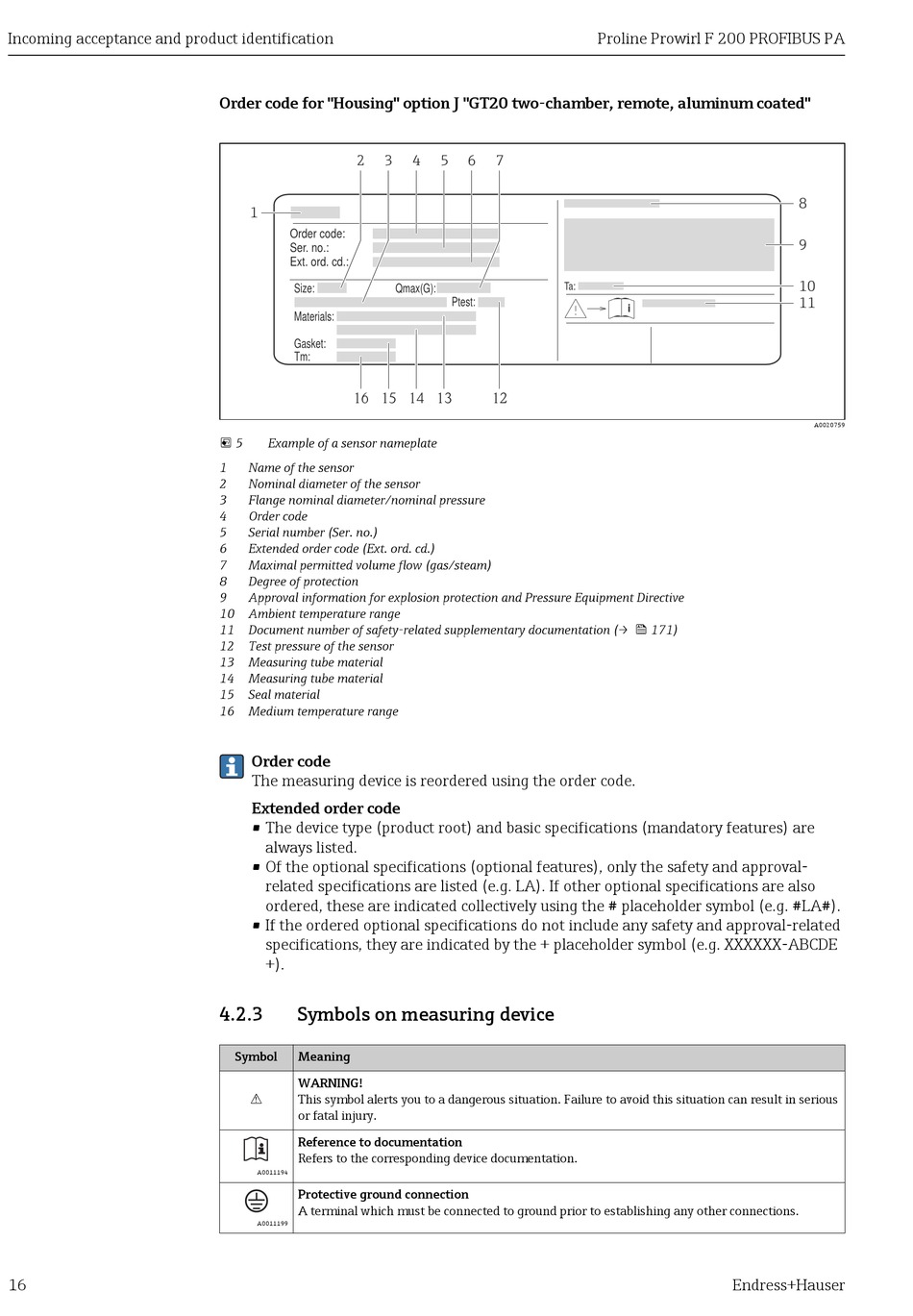

 5 Example of a sensor nameplate
1 Name of the sensor
2 Nominal diameter of the sensor
3 Flange nominal diameter/nominal pressure
4 Order code
5 Serial number (Ser. no.)
6 Extended order code (Ext. ord. cd.)
7 Maximal permitted volume flow (gas/steam)
8 Degree of protection
9 Approval information for explosion protection and Pressure Equipment Directive
10 Ambient temperature range
11 Document number of safety-related supplementary documentation (→  171)
12 Test pressure of the sensor
13 Measuring tube material
14 Measuring tube material
15 Seal material
16 Medium temperature range
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are
always listed.
• Of the optional specifications (optional features), only the safety and approval-
related specifications are listed (e.g. LA). If other optional specifications are also
ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE
+).
4.2.3

Symbols on measuring device

Symbol Meaning
WARNING!
 This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious
or fatal injury.
Reference to documentation
Refers to the corresponding device documentation.
A0011194
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011199
4 5 6 7
Ta:
Qmax(G):
Ptest:
14 13 12
Proline Prowirl F 200 PROFIBUS PA
Endress+Hauser
8
9
10
11
A0020759
