Structure of the wizard for the frequency output
Volume flow Mass flow
Corrected
Off
volume flow
Volume flow unit Mass flow unit
Corrected volume
flow unit
Actual value

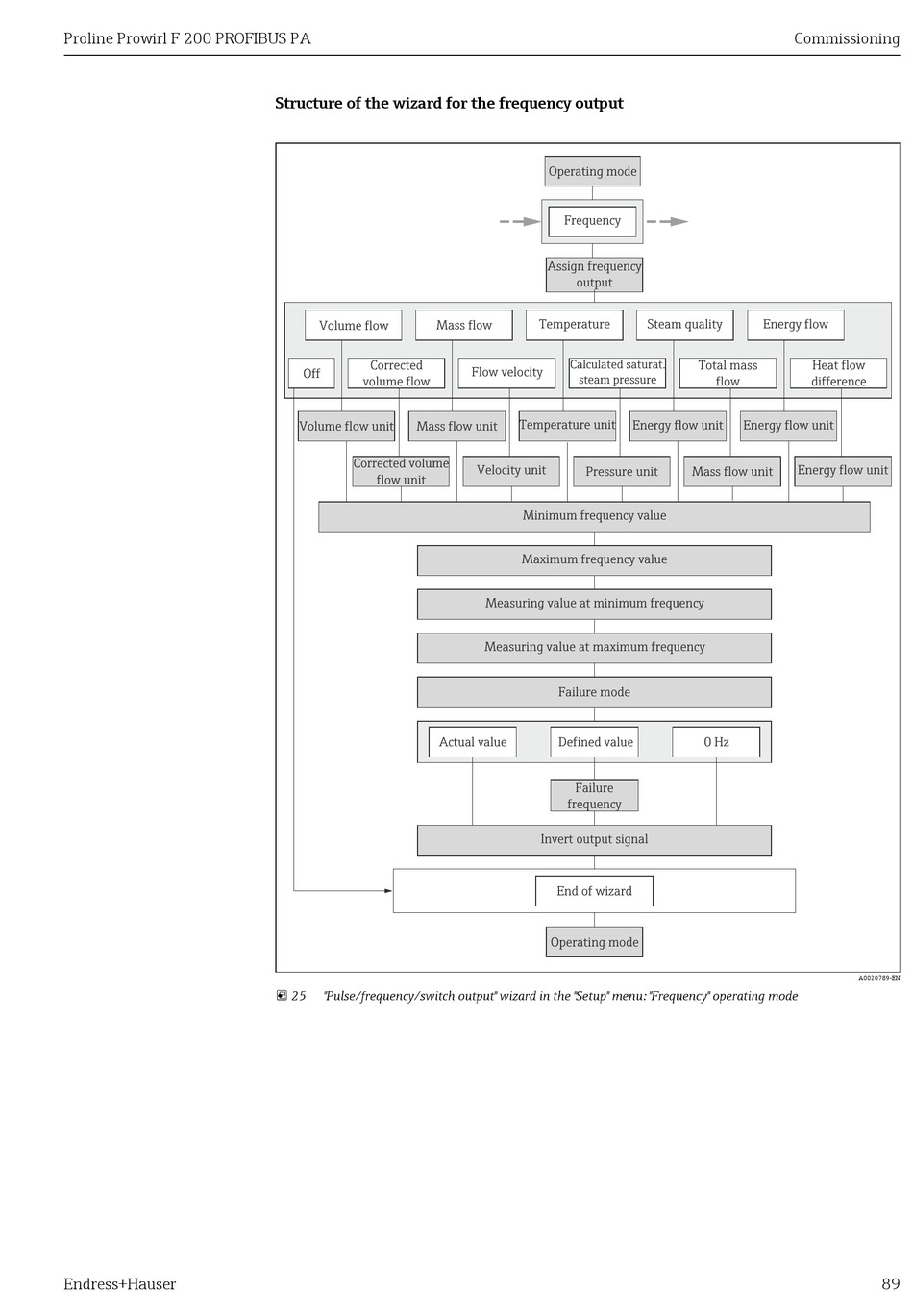

 25 "Pulse/frequency/switch output" wizard in the "Setup" menu: "Frequency" operating mode
Operating mode
Frequency
Assign frequency
output
Temperature
Calculated saturat.
Flow velocity
steam pressure
Temperature unit Energy flow unit
Velocity unit
Pressure unit
Minimum frequency value
Maximum frequency value
Measuring value at minimum frequency
Measuring value at maximum frequency
Failure mode
Defined value
Failure
frequency
Invert output signal
End of wizard
Operating mode
Commissioning
Steam quality Energy flow
Total mass Heat flow
flow difference
Energy flow unit
Energy flow unit
Mass flow unit
0 Hz
