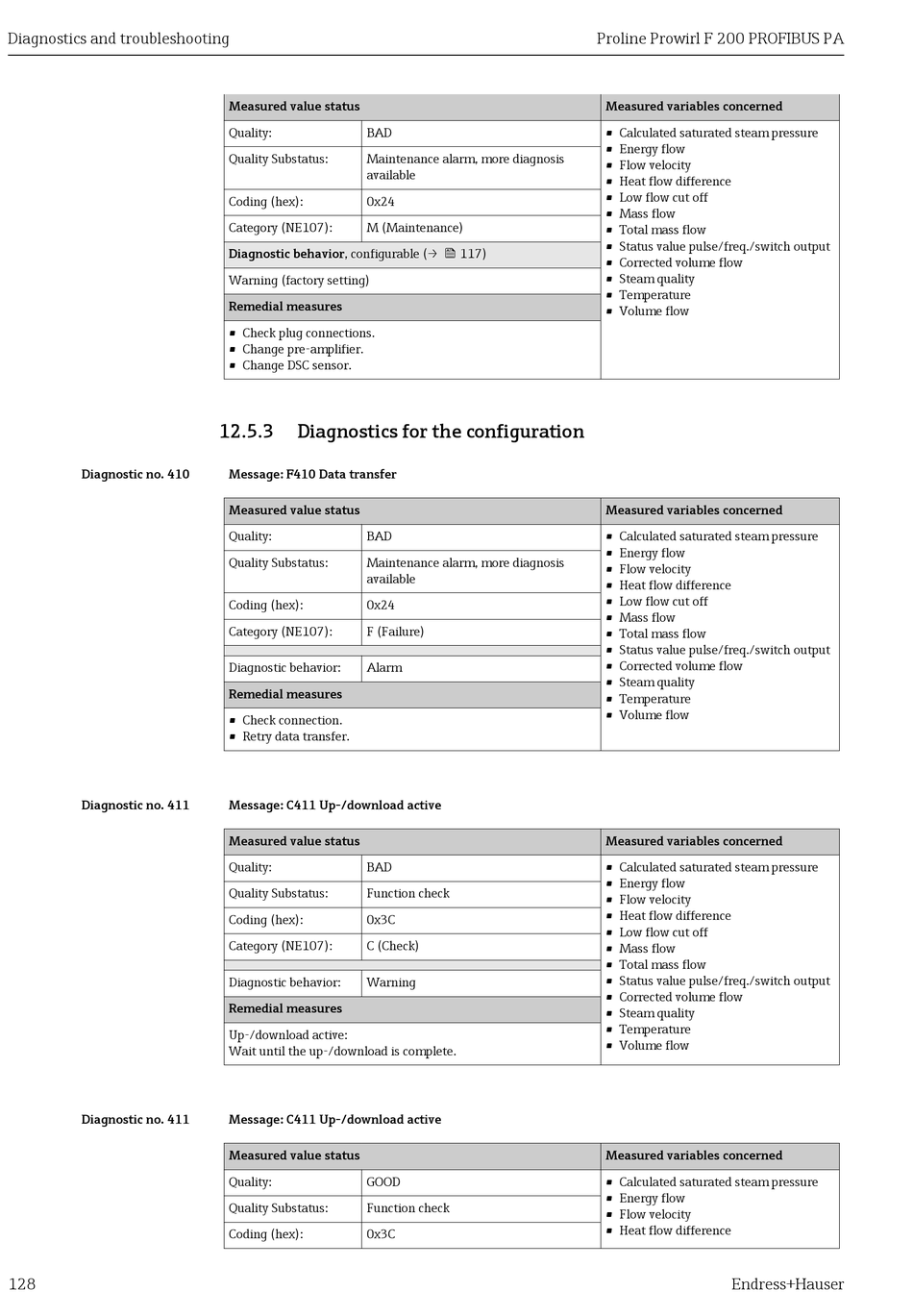

Diagnostics and troubleshooting
Diagnostic no. 410
Diagnostic no. 411
Diagnostic no. 411
128
Measured value status
Quality:
BAD
Quality Substatus:
Maintenance alarm, more diagnosis
available
Coding (hex):
0x24
Category (NE107):
M (Maintenance)
Diagnostic behavior, configurable (→ 117)
Warning (factory setting)
Remedial measures
• Check plug connections.
• Change pre-amplifier.
• Change DSC sensor.
12.5.3
Diagnostics for the configuration
Message: F410 Data transfer
Measured value status
Quality:
BAD
Quality Substatus:
Maintenance alarm, more diagnosis
available
Coding (hex):
0x24
Category (NE107):
F (Failure)
Diagnostic behavior:
Alarm
Remedial measures
• Check connection.
• Retry data transfer.
Message: C411 Up-/download active
Measured value status
Quality:
BAD
Quality Substatus:
Function check
Coding (hex):
0x3C
Category (NE107):
C (Check)
Diagnostic behavior:
Warning
Remedial measures
Up-/download active:
Wait until the up-/download is complete.
Message: C411 Up-/download active
Measured value status
Quality:
GOOD
Quality Substatus:
Function check
Coding (hex):
0x3C
Proline Prowirl F 200 PROFIBUS PA
Measured variables concerned
• Calculated saturated steam pressure
• Energy flow
• Flow velocity
• Heat flow difference
• Low flow cut off
• Mass flow
• Total mass flow
• Status value pulse/freq./switch output
• Corrected volume flow
• Steam quality
• Temperature
• Volume flow
Measured variables concerned
• Calculated saturated steam pressure
• Energy flow
• Flow velocity
• Heat flow difference
• Low flow cut off
• Mass flow
• Total mass flow
• Status value pulse/freq./switch output
• Corrected volume flow
• Steam quality
• Temperature
• Volume flow
Measured variables concerned
• Calculated saturated steam pressure
• Energy flow
• Flow velocity
• Heat flow difference
• Low flow cut off
• Mass flow
• Total mass flow
• Status value pulse/freq./switch output
• Corrected volume flow
• Steam quality
• Temperature
• Volume flow
Measured variables concerned
• Calculated saturated steam pressure
• Energy flow
• Flow velocity
• Heat flow difference
Endress+Hauser
