Endress+Hauser Proline Prowirl F 200 Operating Instructions Manual page 41

Proline Prowirl F 200 PROFIBUS PA
Endress+Hauser
1. Loosen the securing clamp of the transmitter housing.
2. Loosen the securing clamp of the electronics compartment cover.
3. Unscrew the electronics compartment cover.
4. Pull out the display module with a gentle rotational movement. To make it easier to
access the lock switch, attach the display module to the edge of the electronics
compartment.
5. Loosen the locking screw of the transmitter housing.

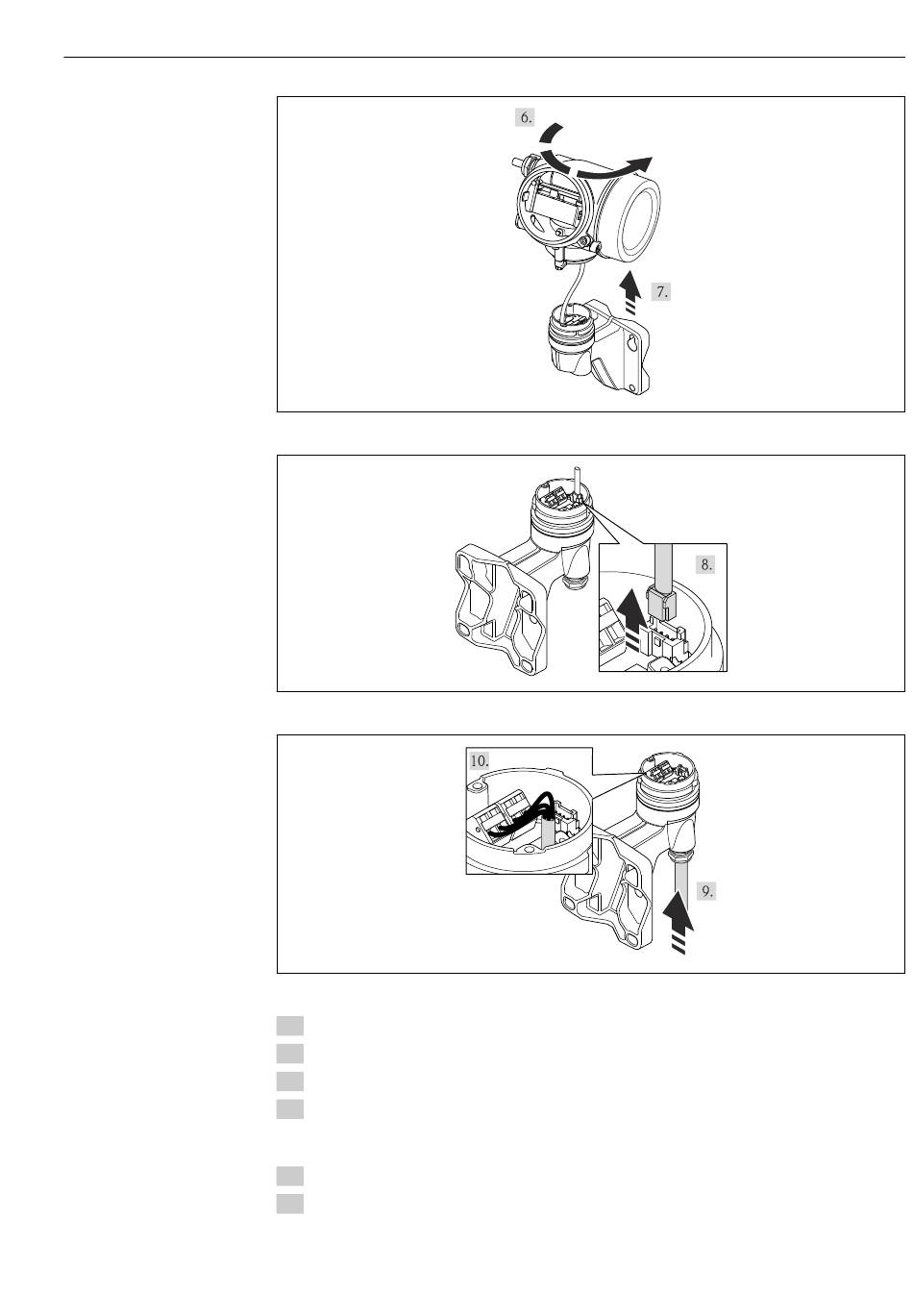

6. Turn the transmitter housing to the right until the mark and lift it up. The connection
board of the wall housing is connected to the electronics board of the transmitter via
a signal cable. Pay attention to the signal cable when lifting the transmitter housing!
~15°
Electrical connection
A0020406
A0020407
A0020409
41
