Hardware Installation Guide for the Polycom SoundStructure
C8 (bus id: 2)
C-Series Mic Input
1: Table Mic 12
2: Table Mic 13
3: Table Mic 14
4: Table Mic 15
5: Table Mic 16
6: Wireless Mic
7: Program Audio (Left)
8: Program Audio (Right)
Wiring the system as described in the wiring report and linking multiple devices as indicated to ensure the
device ID's of the system match the configuration file is an important step to having the system operate
properly once the configuration file is uploaded to the devices.

Connecting IR Port to Optional Receiver and RS-232 to Control System

IR Port

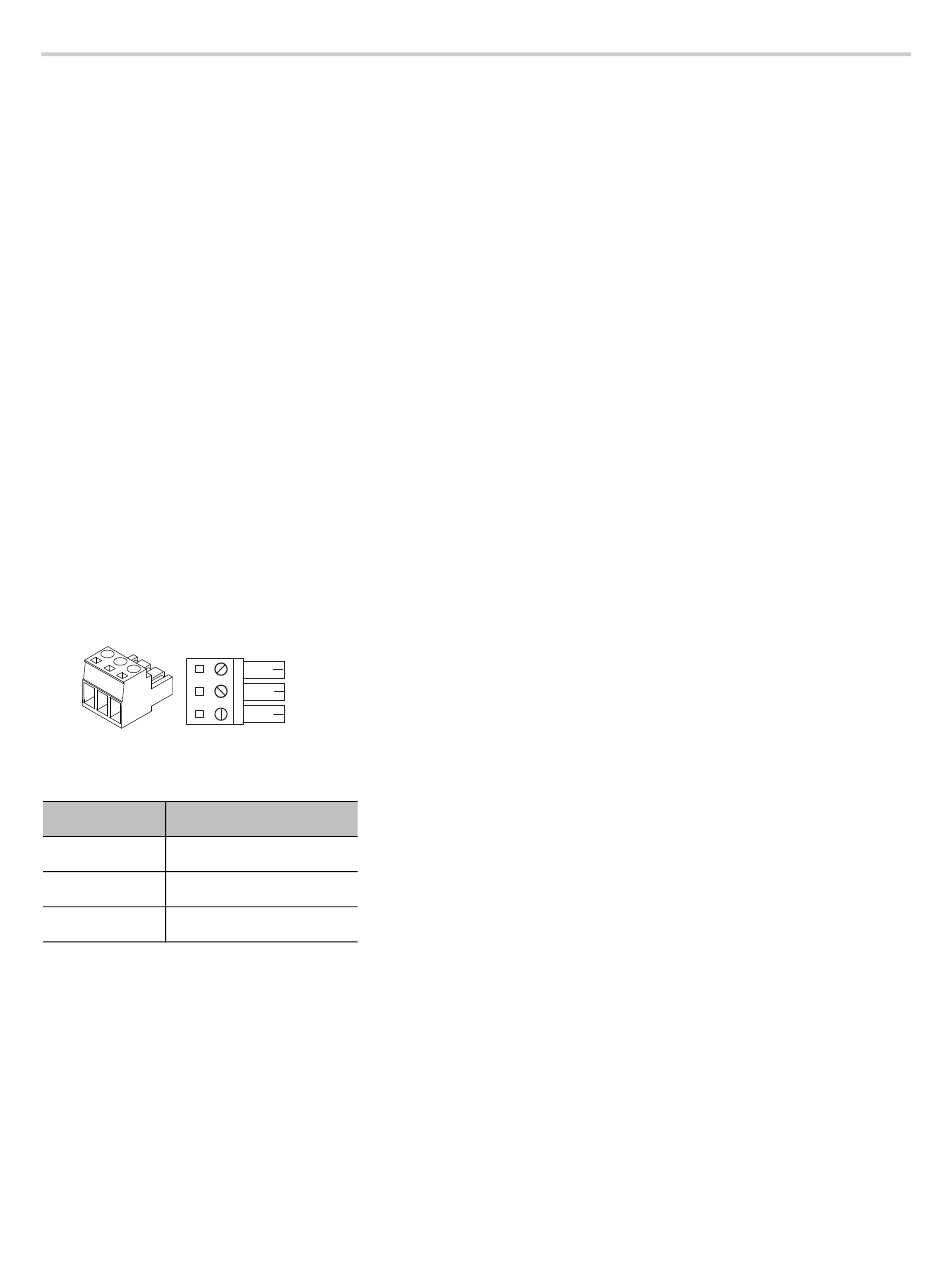

The IR receiver port is compatible with IR receivers such as Xantech models 780-80, 780-90, 480-00,
480-80, and 490-00. Terminate the IR receiver into the supplied terminal block using the pinout shown in
the following figure. See Chapter 3 of the SoundStructure Design Guide and the software release notes for
additional information on how to use the IR receiver port.
Top View
Pin Signal
1 +12 V
2 Ground
3 IR Signal Data
Polycom, Inc.
1
2
3
