PCI-DIO24 User's Guide

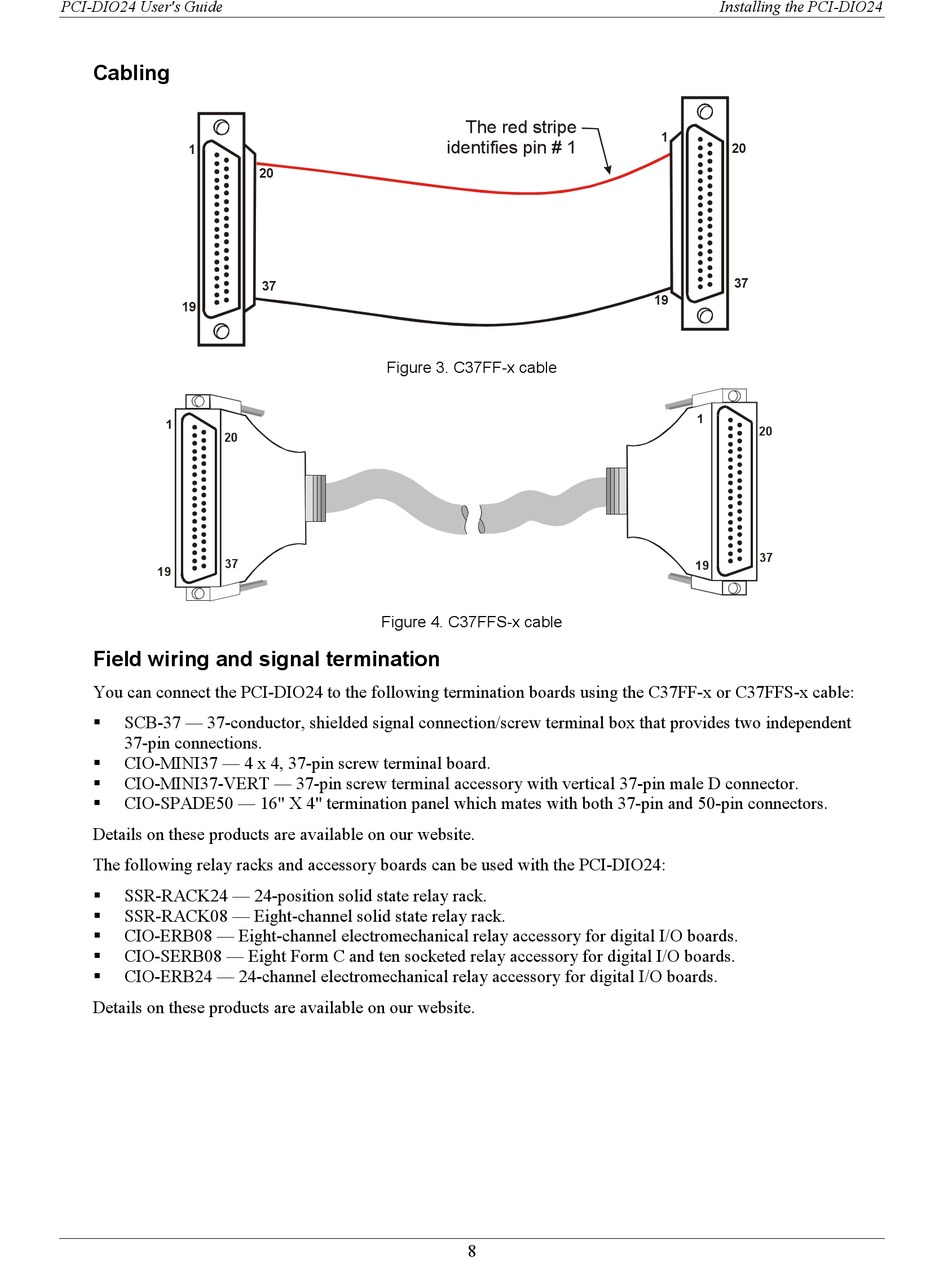

Cabling

1
19
1
20
37
19

Field wiring and signal termination

You can connect the PCI-DIO24 to the following termination boards using the C37FF-x or C37FFS-x cable:
SCB-37 — 37-conductor, shielded signal connection/screw terminal box that provides two independent

37-pin connections.
CIO-MINI37 — 4 x 4, 37-pin screw terminal board.

CIO-MINI37-VERT — 37-pin screw terminal accessory with vertical 37-pin male D connector.

CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.

Details on these products are available on our website.
The following relay racks and accessory boards can be used with the PCI-DIO24:
SSR-RACK24 — 24-position solid state relay rack.

SSR-RACK08 — Eight-channel solid state relay rack.

CIO-ERB08 — Eight-channel electromechanical relay accessory for digital I/O boards.

CIO-SERB08 — Eight Form C and ten socketed relay accessory for digital I/O boards.

CIO-ERB24 — 24-channel electromechanical relay accessory for digital I/O boards.

Details on these products are available on our website.
20
37
Figure 3. C37FF-x cable
Figure 4. C37FFS-x cable
The red stripe
identifies pin # 1
8
Installing the PCI-DIO24
1
20
37
19
1
20
37
19
