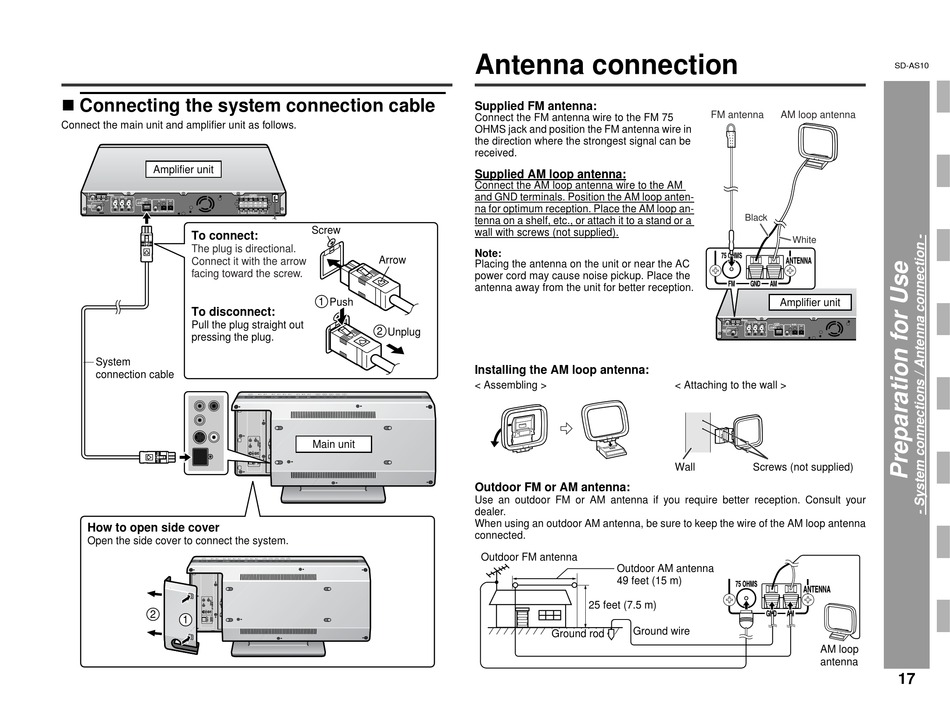

" Connecting the system connection cable
Connect the main unit and amplifier unit as follows.
Amplifier unit
To connect:
The plug is directional.
Connect it with the arrow
facing toward the screw.
To disconnect:
Pull the plug straight out
pressing the plug.
System
connection cable
How to open side cover
Open the side cover to connect the system.
2
1

Antenna connection

Supplied FM antenna:
Connect the FM antenna wire to the FM 75
OHMS jack and position the FM antenna wire in
the direction where the strongest signal can be
received.
Supplied AM loop antenna:
Connect the AM loop antenna wire to the AM
and GND terminals. Position the AM loop anten-
na for optimum reception. Place the AM loop an-
tenna on a shelf, etc., or attach it to a stand or a
Screw
wall with screws (not supplied).
Note:
Arrow
Placing the antenna on the unit or near the AC
power cord may cause noise pickup. Place the
antenna away from the unit for better reception.
1
Push
2
Unplug
Installing the AM loop antenna:
< Assembling >
Main unit
Outdoor FM or AM antenna:
Use an outdoor FM or AM antenna if you require better reception. Consult your
dealer.
When using an outdoor AM antenna, be sure to keep the wire of the AM loop antenna
connected.
Outdoor FM antenna
FM antenna
< Attaching to the wall >
Wall
Outdoor AM antenna
49 feet (15 m)
25 feet (7.5 m)
Ground wire
Ground rod
SD-AS10
AM loop antenna
Black
White
Amplifier unit
Screws (not supplied)
AM loop
antenna
17
