After that your ladder diagram is ready to be uploaded to the device. To

do that, see

3 .8.2.

‎

3.10.8 Transformation LD into setpoints

After uploading you can check the uploaded setpoints in PAS. In the

figure below you can see how a ladder diagram transforms in setpoints

that the PM180 device can use.

PLC Configurator is only used for setpoints configuration and PAS

should be used for other configuration needs.

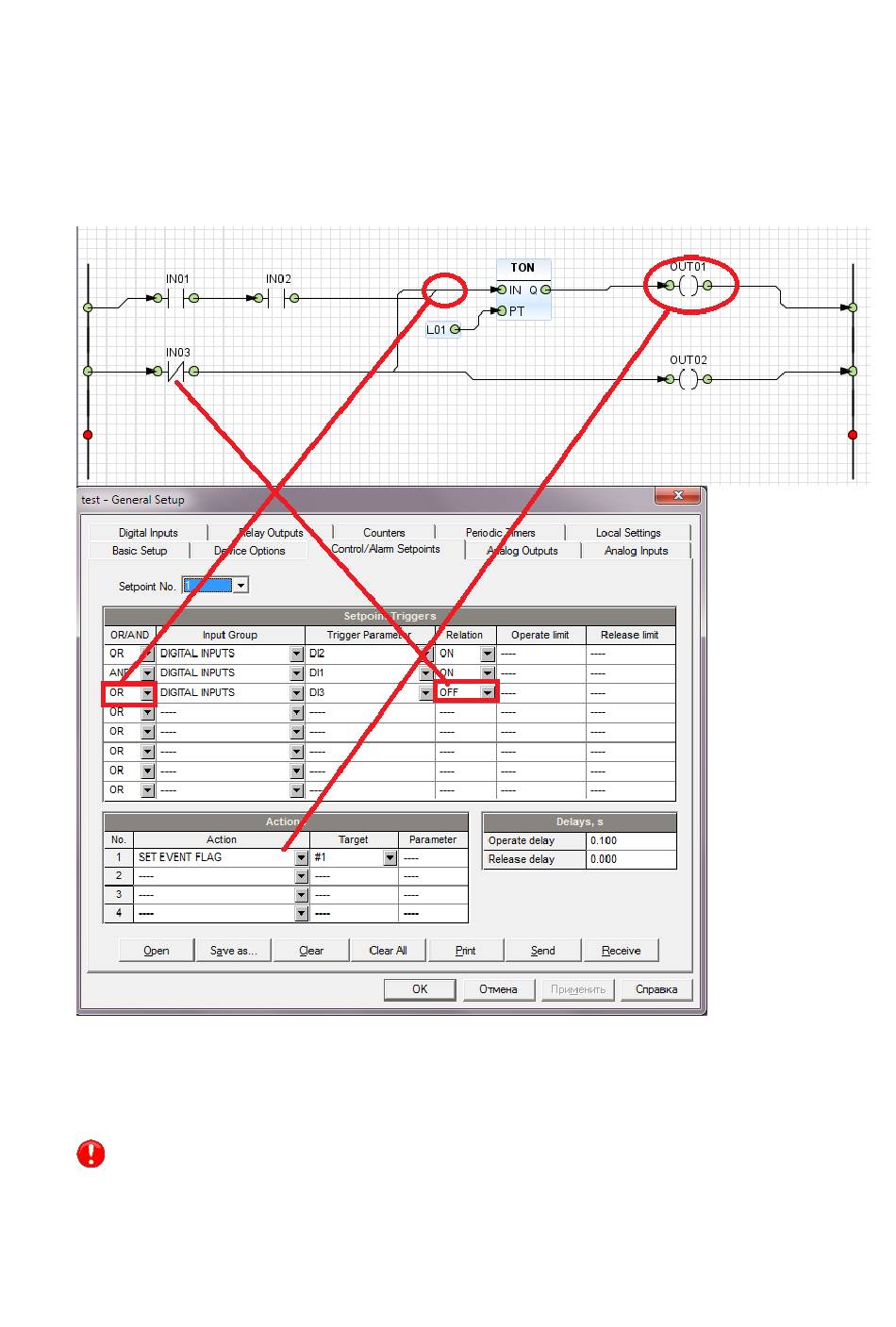

Figure 71 - LD logic in PAS
