grey color and unavailable for choosing like shown in the figure below.

Variable's type is shown in the Properties window.

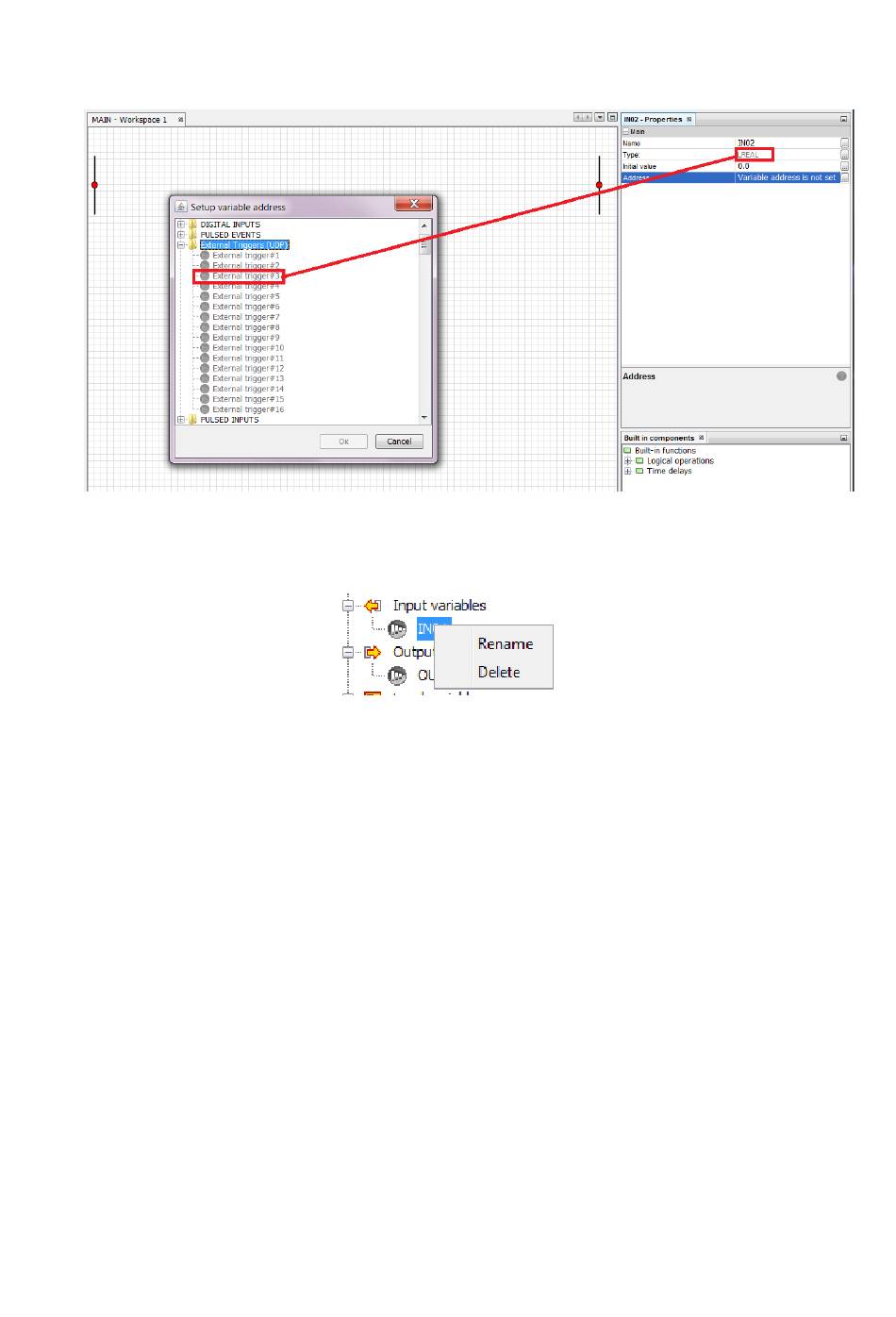

Figure 31 - Variables with unsupported types

The chosen internal variable will appear in the Address setting.

You can rename or delete properties using its context menu.

3.7.4 Add work area

To add additional work area click on FB with the right mouse button and

choose one of the following options, depending on the diagram you are

using on the device:

1. Add work area (FBD).

2. Add work area (LD).

New work area will be added and will appear in the FB tree.

Debugger is used if you want to check the logic of FB that you created

or search for mistakes.

To debug FB choose Debug in the context menu of FB. Debugger will

appear like shown in the figure below:

Figure 32 - Variable context menu
