3 Programming guide

Before starting PLC Configurator, be sure you have installed Java 8 64

bit on Windows 7 and above (64 bit versions only).

To start PLC Configurator:

1. Unzip the archive with the application in any folder.

2. Run file "bin/scadastudio.exe".

To create new project:

1. Start PLC Configurator application.

2. In the application, choose File -> New Project, like shown in the

figure below.

3. In the New Project wizard, expand the SATEC category and select

SATEC PLC Project like shown in the figure below. Then click Next.

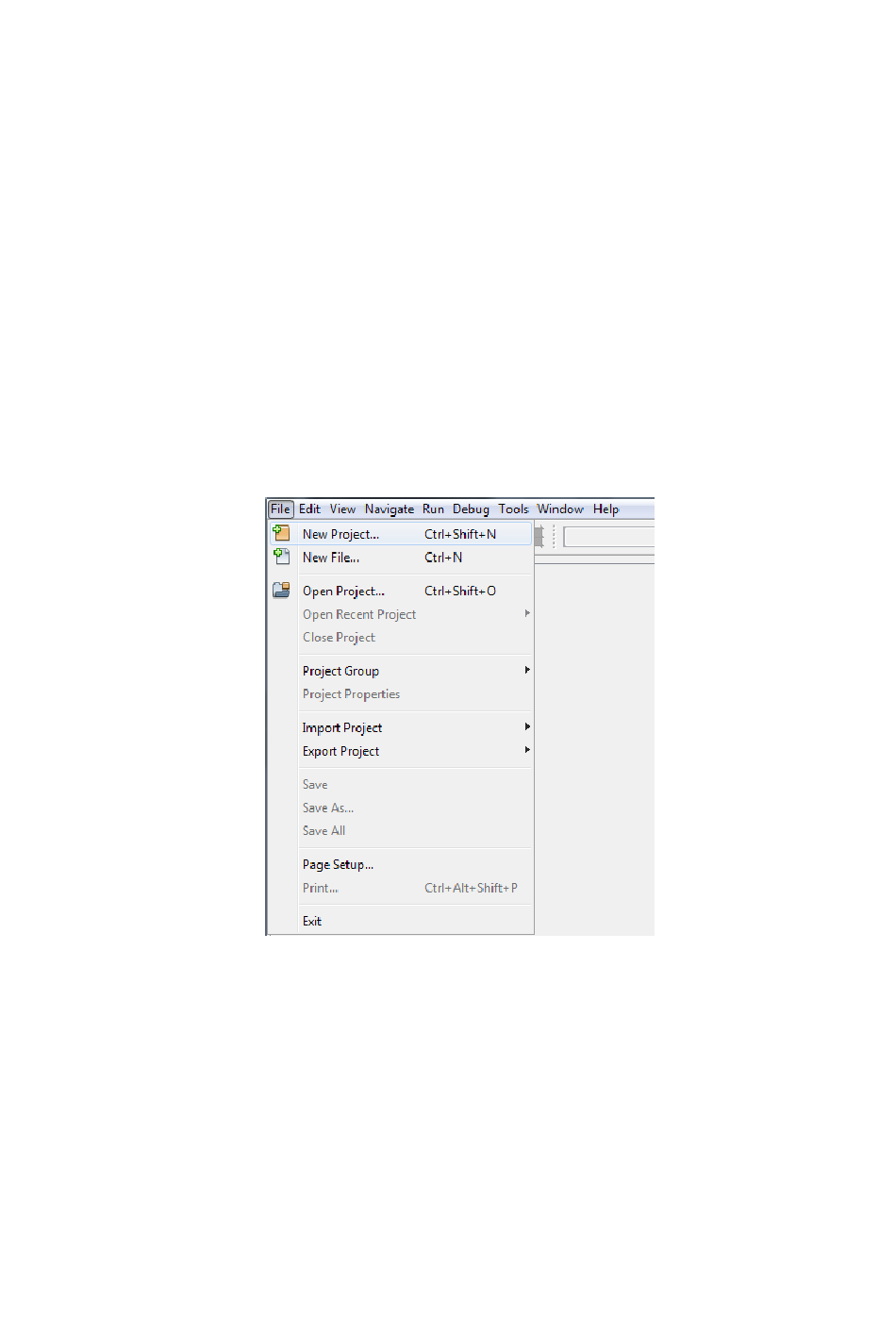

Figure 15 - File menu
