4. In the Name and Location page of the wizard, do the following (like
shown in the figure below):
In the Project Name field type project name.
To setup project location click on Browse... button or type it in
the Project location field.
5. Click Finish.
After that the project will be created and opened in PLC Configurator.
You should see the following components:
14

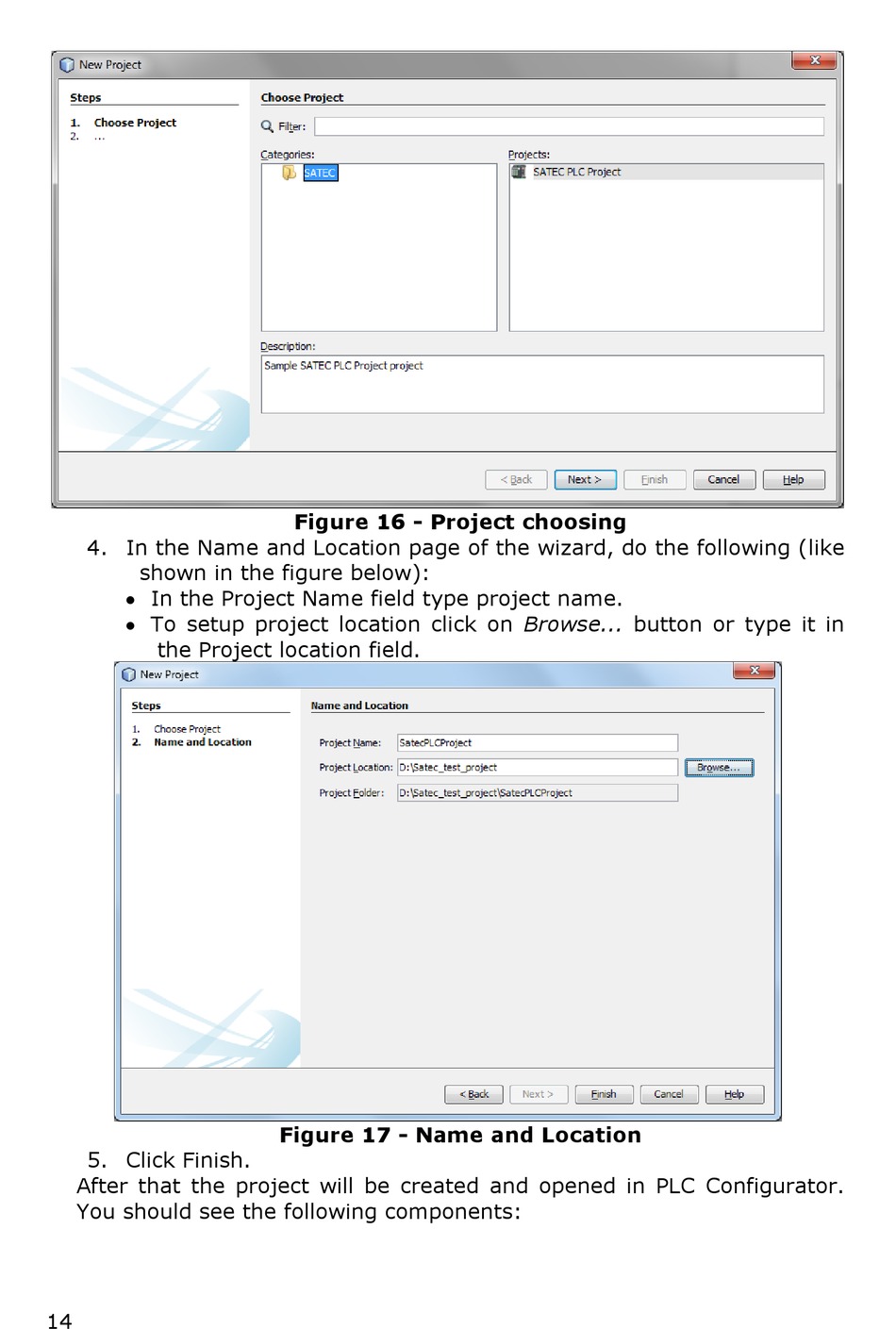

Figure 16 - Project choosing
Figure 17 - Name and Location
