 To create more complex logic it is possible to add built-in functions

and variables of other from BOOL data types.

You can find detailed information about creating LD in PLC Configurator

in chapter

3 .10.

‎

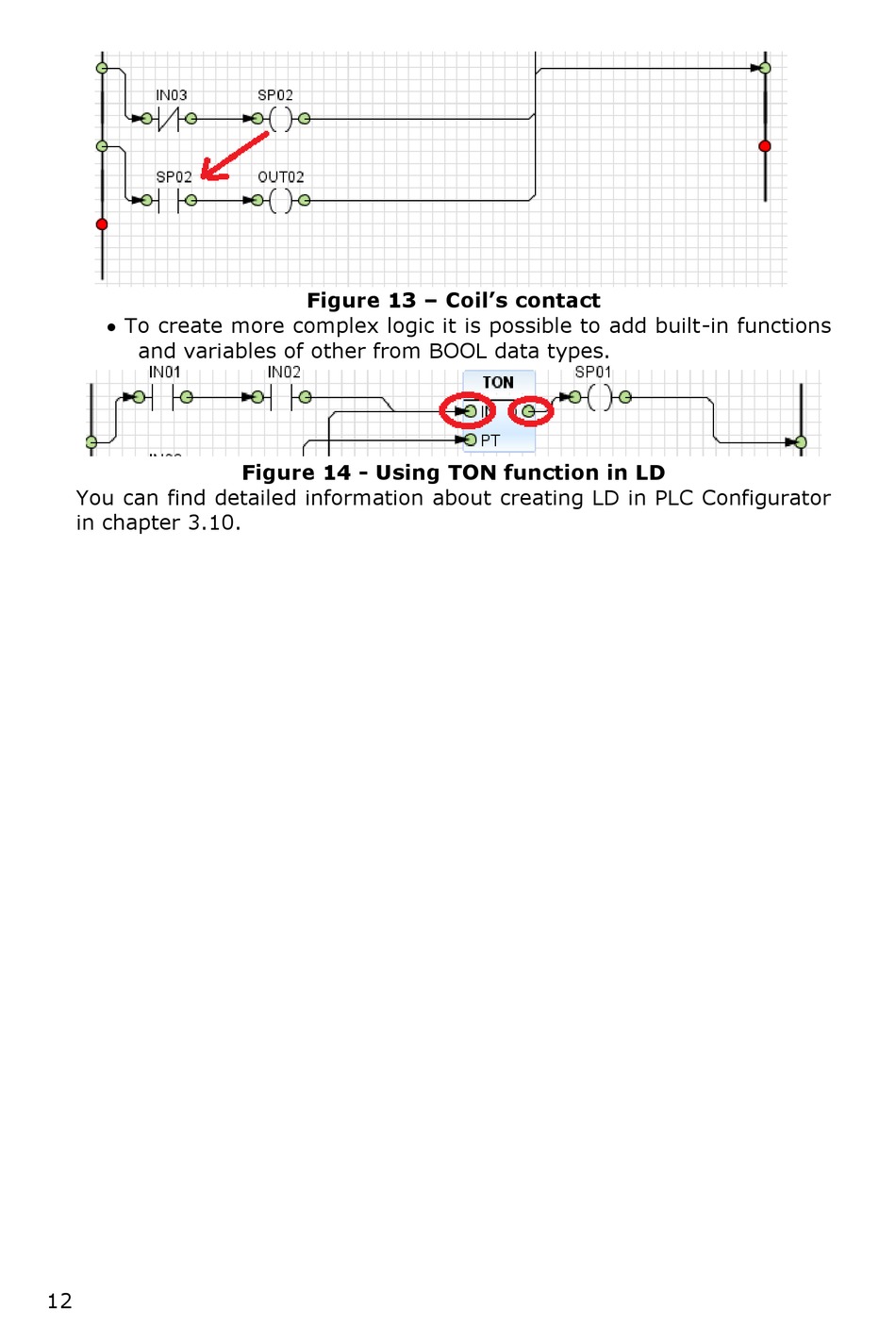

Figure 13 – Coil's contact

Figure 14 - Using TON function in LD
